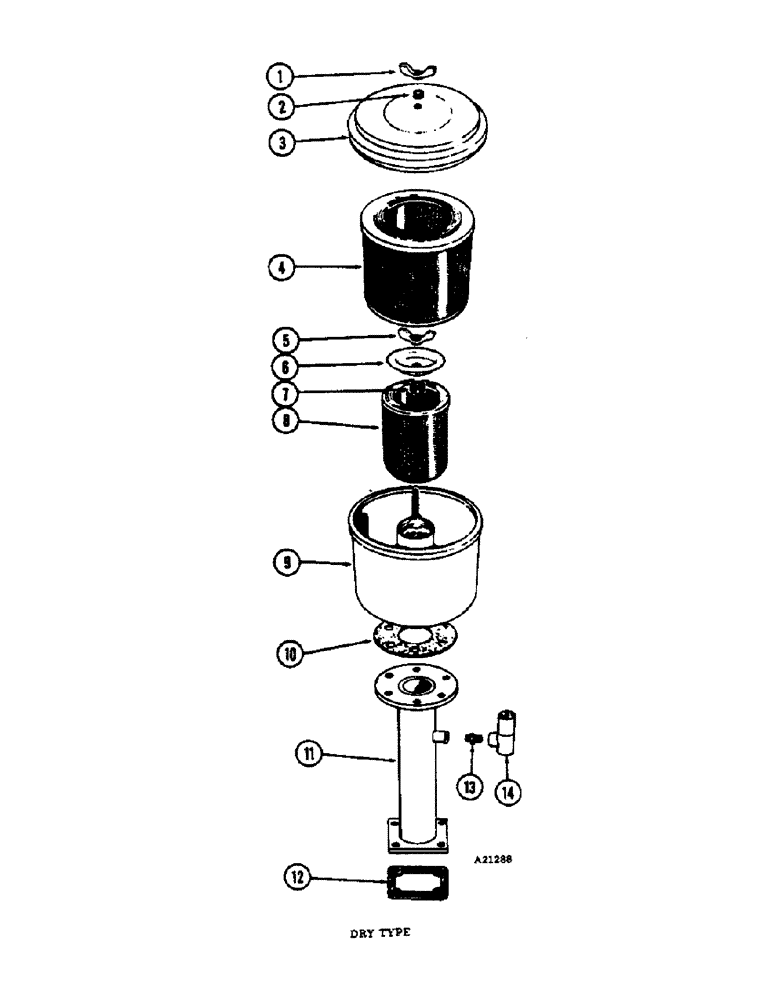

Запчасти Case W7E (092) - DRY TYPE AIR CLEANER, DIESEL ENGINE (02) - ENGINE

L52784

FILTER CARTRIDGE

AIR CLEANER - dry type, Includes: Ref. 1 - 10

1шт.

1

A17745

NUT

NUT - wing, cover retainer

1шт.

2

A17744

GROMMET

- cover sealing

1шт.

3

L35472

COVER ASSY

COVER - air cleaner body

1шт.

4

A17741

AIR CLEANER

ELEMENT - filter, outer

1шт.

5

L35473

NUT

- wing, element retainer

1шт.

6

A17747

PLATE ASSY.

COVER - inner filter element

1шт.

7

A17748

GASKET

- filter element

1шт.

8

A17742

AIR CLEANER

ELEMENT - filter, inner

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

10

A17749

GASKET

- air cleaner, Serial Range: body-bracket

1шт.

11

T41083

BRACKET

SUPPORT - mounting, air cleaner

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

129-122

NUT,5/16"-24, G5

6шт.

12

A58910

GASKET

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

13

D36264

FITTING

ADAPTER -, Serial Range: gauge-bracket

1шт.

14

A17652

ELECTRICAL GAUGE

GAUGE - warning, air cleaner

1шт.
