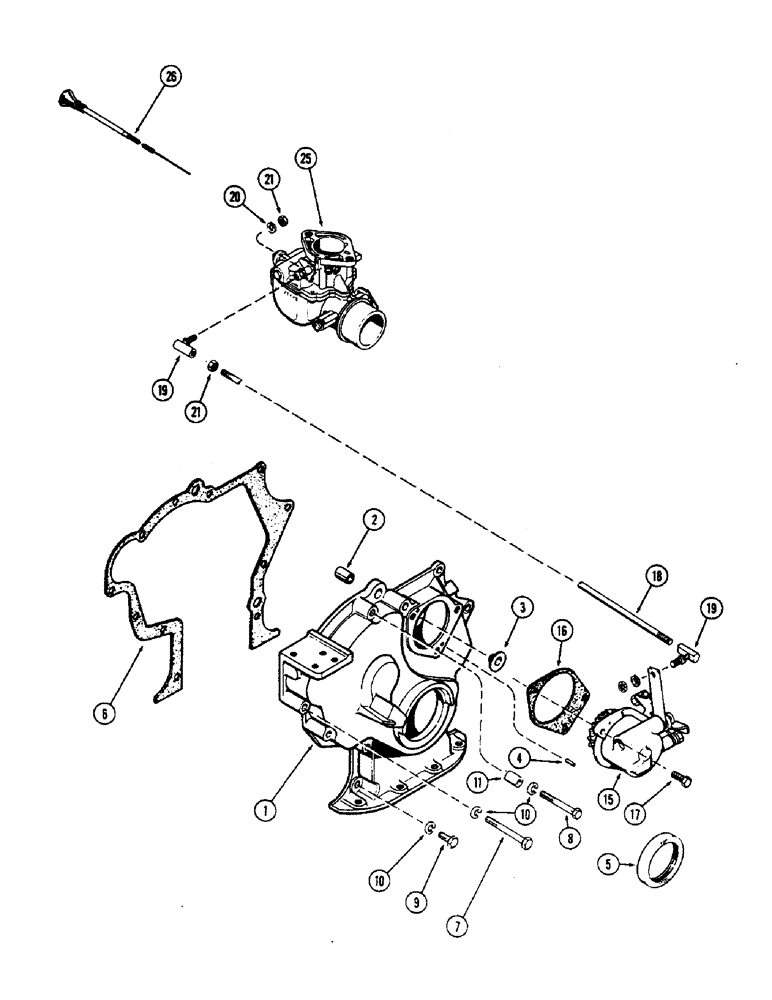

Запчасти Case W7E (050) - TIMING GEAR COVER & GOVERNOR LINKAGE, (301B) SPARK IGNITION ENG. (02) - ENGINE

1

A58815

COVER ASSY - timing gear, Includes: Ref. 2 - 4

1шт.

2

A58611

PIN

DOWEL -, Serial Range: cover-block

2шт.

3

A58817

BUSHING - governor shaft

1шт.

4

A58818

PIN - governor mounting

2шт.

5

A62049

OIL SEAL

- oil, crankshaft front (2-5/8 x 3-5/8 x 1/2")

1шт.

6

A58612

GASKET

-, Serial Range: cover-block

1шт.

7

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

3шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

10

92-6

LOCK WASHER,3/8"

11шт.

11

A19774

BUSHING

SPACER - alternator pry point

1шт.

15

A58819

GOVERNOR ASSY - (Repairs figure 52)

1шт.

16

A58820

GASKET

- governor mounting

1шт.

17

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, (Nylok) Locking, 3/8"-16 x 1", G5, Full Thd

3шт.

18

A61056

ROD -, Serial Range: governor-carburetor

1шт.

19

A10326

BALL JOINT

JOINT - ball, control rod

2шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex.

4шт.

25

A58807

CARBURETOR ASSY - w/oil bath air cleaner (Repairs figure 56)

1шт.

25

A60888

CARBURETOR ASSY - w/dry type air cleaner (Repairs figure 54)

1шт.

26

A18485

CONTROL

CABLE ASSY - choke (Used w/dry type air cleaner)

1шт.

26

A38458

CONTROL

CABLE ASSY - choke (Used w/oil bath air cleaner)

1шт.
