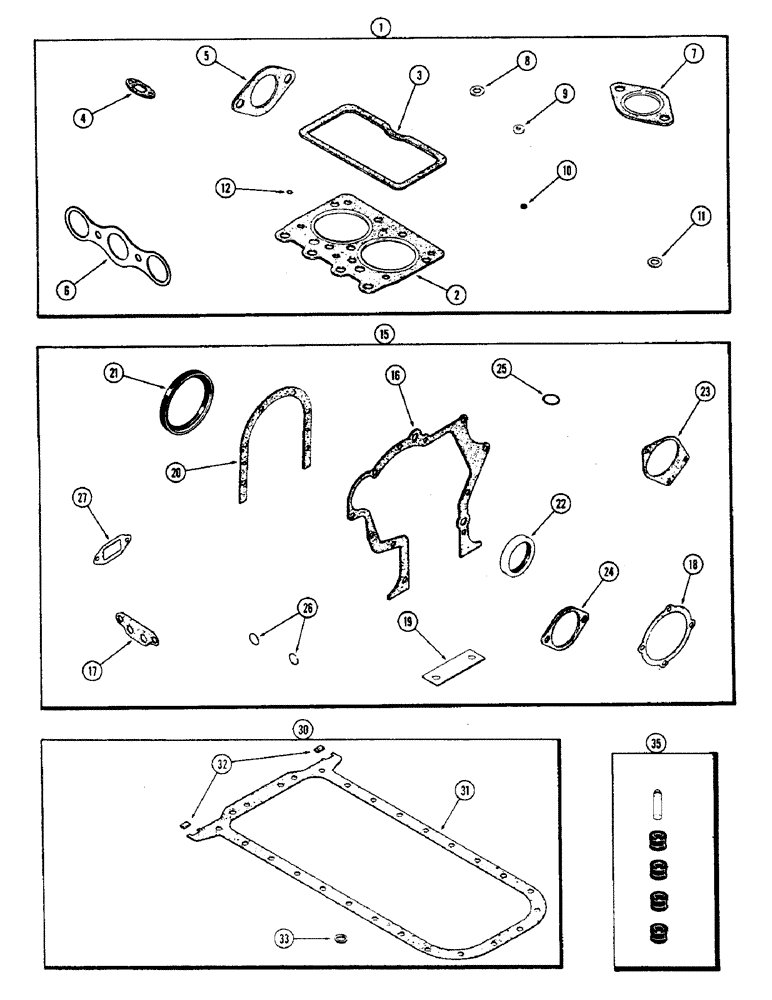

Запчасти Case W7E (048) - ENGINE GASKET KITS, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A43183

GASKET

KIT - valve grind, Includes: Ref. 2 - 12

1шт.

For complete engine overhaul order 1 - A42024, 1 - A41834 & 1 - A42221.

1шт.

2

A142482

GASKET

- cylinder head

2шт.

3

A58928

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A58804

GASKET

- manifold, intake & exhaust

2шт.

7

A26434

GASKET

- carburetor

1шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

2шт.

9

A23684

GASKET

GASKET - cover studs, cyl. head

4шт.

10

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

SHIELD - oil, valve stem

8шт.

11

A34133

GASKET

- breather tube

2шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

15

A41834

CYLINDER

GASKET KIT - cylinder block, Includes: Ref. 16 - 27

1шт.

For complete engine overhaul order 1 - A42024, 1 - A41834 & 1 - A42221.

1шт.

16

A58612

GASKET

- timing gear cover

1шт.

17

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

18

A58646

GASKET

- water pump

1шт.

19

A58859

SHIM,.005" Thk

Oil pump (Not used w/balancer) .005" Thk

2шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

22

A57342

SEAL

- oil, crankshaft front

1шт.

23

A58820

GASKET

- governor mounting

1шт.

24

A58617

GASKET

- auxiliary pump opening

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor to block

1шт.

26

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - oil pump & filter (Not used this unit)

3шт.

27

A58649

GASKET

- water pump body

1шт.

30

A42221

GASKET KIT

- oil pan, Includes: Ref. 31 and 32

1шт.

For complete engine overhaul order 1 - A42024, 1 - A41834 & 1 - A42221.

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order Ref. 30)

1шт.

32

A58933

OIL PAN GASKET SET

- nylon, drain plug

1шт.

35

M20614

SEAL KIT

SEAL KIT - valve (Includes 4 seals and installation sleeve)

1шт.
