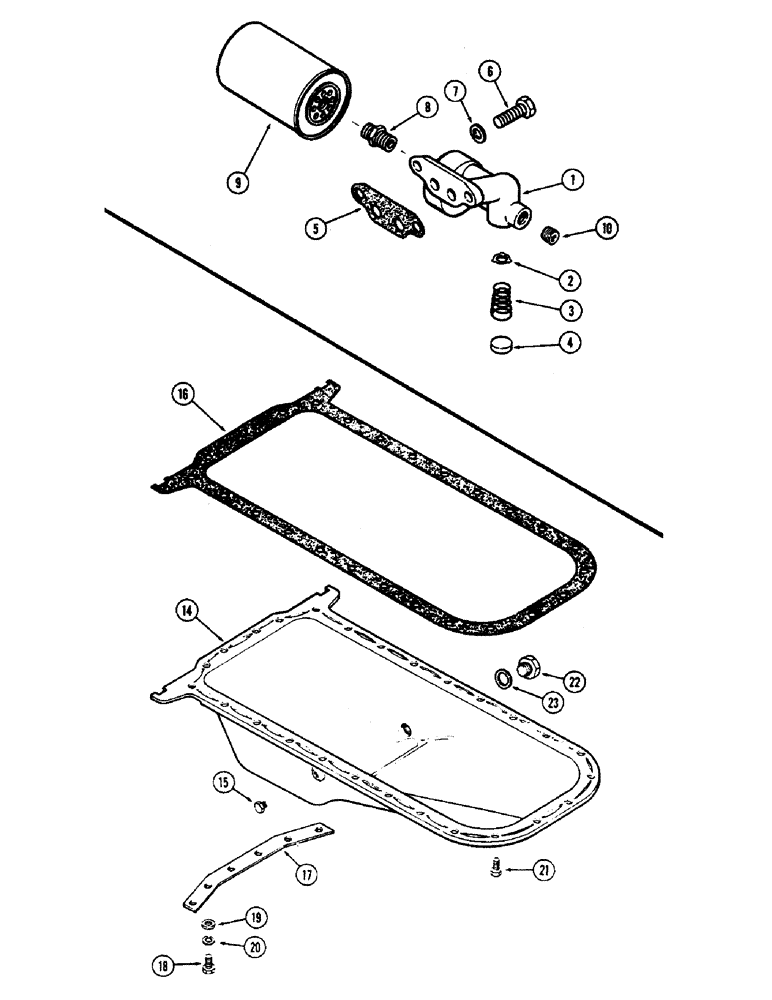

Запчасти Case W7E (046) - OIL FILTER, (301B) SPARK IGNITION ENGINE, OIL PAN (02) - ENGINE

1

A58752

BASE

ASSY - oil filter, Includes: Ref. 2 - 4

1шт.

2

A58754

VALVE

- relief

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve (1" cup type)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

A58757

ADAPTER

-, Serial Range: element-base

1шт.

9

A58758

FILTER, ELEMENT

ELEMENT - filter

1шт.

10

221-23

PLUG

- 1-3/8" P.T. socket hd.

1шт.

14

A62711

PAN

ASSY - oil (Replaces A59140), oil pan, Includes: Ref. 15

1шт.

15

221-664

PLUG,Hex Hd, 1/2"-14

- 1/2" P.T. hex. hd., oil pan

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A42221 figure 48), oil pan

1шт.

17

A58932

STRAP

- reinforcing, oil pan rear, oil pan

1шт.

18

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

24шт.

19

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 1/16", oil pan

24шт.

20

92-6

LOCK WASHER,3/8"

oil pan 3/8"

24шт.

21

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. spec. (Tube brkt.), oil pan

2шт.

22

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

23

A58933

OIL PAN GASKET SET

- nylon, drain plug, oil pan

1шт.
