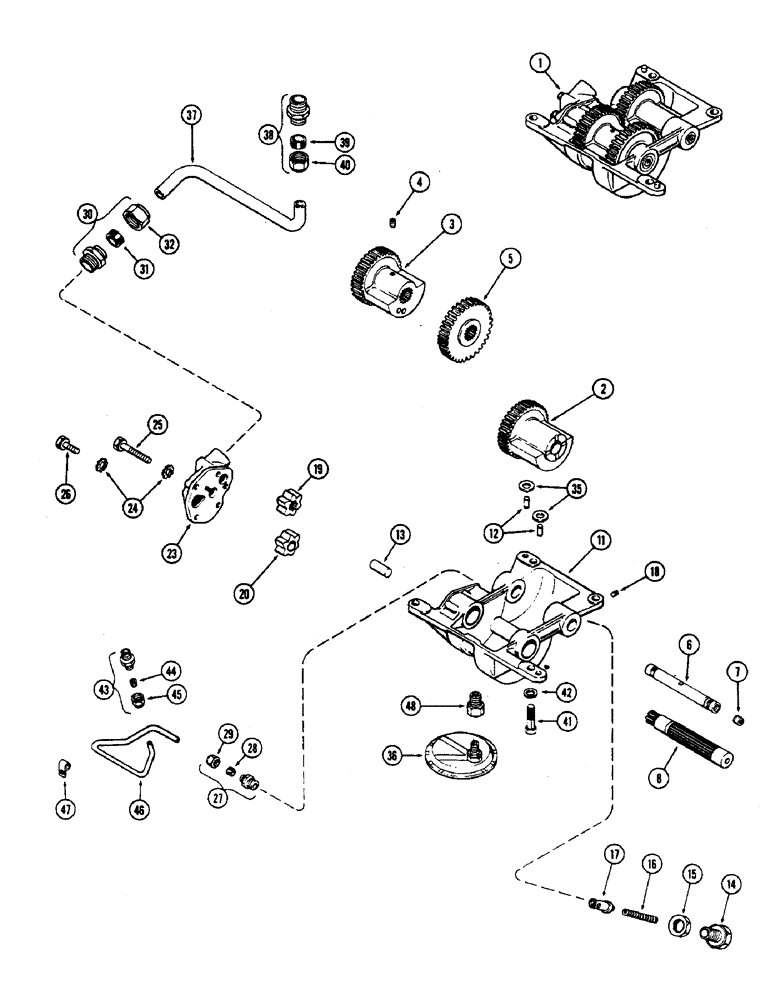

Запчасти Case W7E (045A) - BALANCER AND OIL PUMP, (301B) SPARK IGNITION ENGINE, 3 GEAR TYPE (02) - ENGINE

A57959

X

BALANCER & OIL PUMP ASSY - complete, Includes: Ref. 2 - 32

1шт.

2

A22824

COUNTERWEIGHT ASSY - driven

1шт.

3

A22826

COUNTERWEIGHT - drive (Splined)

1шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. socket hd. cup pt.

1шт.

5

A57958

GEAR

- drive, counterweight

1шт.

6

A22563

SHAFT

- stationary

1шт.

7

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

8

A57957

SHAFT

ASSY - drive, counterweight

1шт.

11

A22541

HOUSING ASSY - balancer, Includes: Ref. 12

1шт.

12

A8134

PIN

- dowel, (3/8 x 3/4")

2шт.

13

A22543

SHAFT

- stub, oil pump gear

1шт.

14

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

15

A27858

NUT

- adjusting screw

1шт.

16

A61958

VALVE SPRING

SPRING - relief, oil pump

1шт.

17

A22566

PLUNGER

- relief, oil pump

1шт.

18

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" socket hd. cone pt.

1шт.

19

A22564

GEAR

- oil pump drive (Splined)

1шт.

20

A22555

GEAR

- oil pump driven (W/bushing)

1шт.

23

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

24

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

25

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

27

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY - oil tube to hsg., 1/4" P.T., Includes: Ref. 28 and 29

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

30

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY - tube to cover, 1/2" P.T., Includes: Ref. 31 and 32

1шт.

31

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

32

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

35

G49401

SHIM,.005" Thk

Housing to block .005" Thk

1шт.

35

G49402

SHIM,.010" Thk

Housing to block .010" Thk

1шт.

36

A22590

FILTER SCREEN

SCREEN ASSY - oil inlet

1шт.

37

A62745

TUBE

- oil, Serial Range: pump-filter

1шт.

38

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY - tube, 1/2" P.T., Includes: Ref. 39 and 40

1шт.

39

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

40

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY - tube, 1/8" P.T., Includes: Ref. 44 and 45

1шт.

44

222-102

SLEEVE,1/4" Tube

1шт.

45

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

46

A22596

TUBE

- oil to balancer shaft

1шт.

47

A20541

CLIP

- oil tube

1шт.

48

A21235

FITTING

ADAPTER - tube to screen (1/2" male x 1/2" female P.T.)

1шт.
