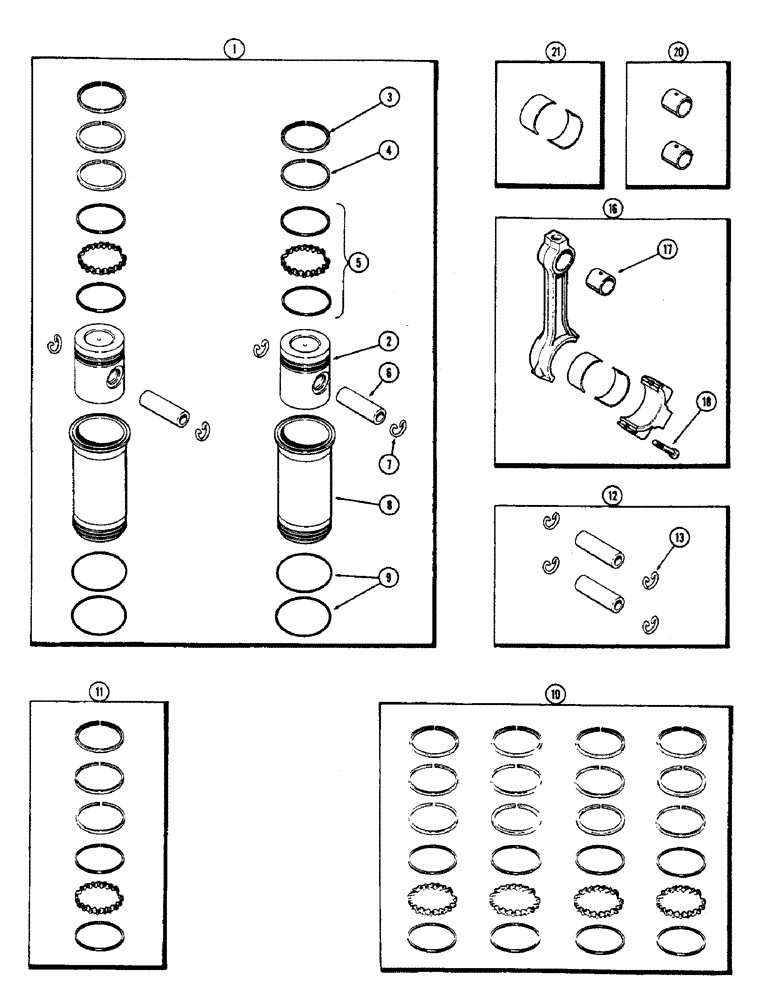

Запчасти Case W7E (042) - PISTON ASSY. & CONNECTING RODS, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A42022

SLEEVE

PISTON & SLEEVE KIT - (Matched set of 2), Includes: Ref. 2 - 9

2шт.

Use only the right or numbered side of illustration for parts.

1шт.

2

A59610

PISTON

- cylinder (4-3/8" dia.)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top (Order Ref. 10 or 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd (Order Ref. 10 or 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING ASSY - oil control (Order Ref. 10 or 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - wrist (Order Ref. 12)

2шт.

7

A27844

RING

- retainer, wrist pin

4шт.

8

A59093

SLEEVE

- piston (4-3/8" bore)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing (4-1/2 x 4-3/4 x 1/8")

4шт.

10

A42031

RING KIT - (Re-ring 4 pistons), Includes: Ref. 11

1шт.

11

A42030

PISTON RING SET

RING KIT - (Re-ring 1 piston)

1шт.

12

A21724

KIT

PIN KIT - piston (Set of 2 incl. retainers), Includes: Ref. 13

2шт.

13

A27844

RING

- retainer

4шт.

16

A28788

SLEEVE

ROD ASSY - connecting, Includes: Ref. 17 and 18

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - wrist pin (Order Ref. 20)

1шт.

18

A62184

STEP BOLT

BOLT - rod cap (1/2 x 2-3/16" N.F. spec.)

2шт.

20

A21721

BUSHING

KIT - conn. rod (Set of 2)

2шт.

21

A20393

LINING

LINERS - conn. rod brg. (Std.)

4шт.

21

A20569

JOURNAL

LINERS - conn. rod brg. (.002" undersize)

4шт.

21

A20571

BEARING LINER

LINERS - conn. rod brg. (.010" undersize)

4шт.

21

A20573

KIT

LINERS - conn. rod brg. (.020" undersize)

4шт.

21

A20576

LINING

LINERS - conn. rod brg. (.030" undersize)

4шт.
