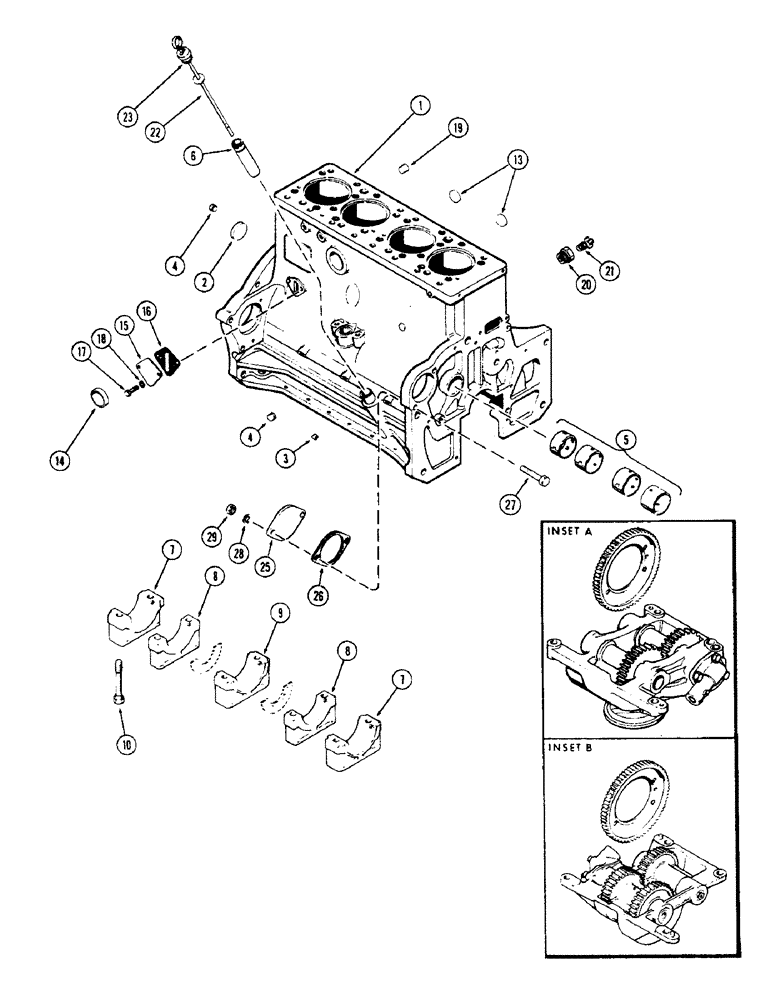

Запчасти Case W7E (038) - CYLINDER BLOCK ASSY., (301B) SPARK IGNITION ENGINE (02) - ENGINE

A43052

SKELETON ENGINE

BLOCK ASSY - short (Includes stripped block, pistons, conn. rods & brgs., crankshaft & brgs., balancer timing gear w/86T, rear oil seal, camshaft & lifters) (Casting No. A58506) (See note & inset A), Includes: Ref. 1 - 18

1шт.

A42020

SKELETON ENGINE

BLOCK ASSY - short (Includes stripped block, pistons & rods, crankshaft & brgs., rear oil seal, balancer timing gear w/106 teeth, camshaft, lifters & timing gear) (Casting No. A58506) (See note & inset A), Includes: Ref. 1 - 18

1шт.

1

NLS

NO LONGER SERVICED

ASSY - stripped (Casting No. A58506), Includes: Ref. 2 - 18

1шт.

2

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

3

221-1041

PLUG

- 1/8" P.T. slotted hdless.

3шт.

4

221-1843

PLUG

- 3/8" P.T. socket hd.

4шт.

5

A23577

KIT

BUSHING SET - camshaft

1шт.

6

A34540

TUBE

SOCKET - oil filler & dipstick

1шт.

7

A58783

BEARING CAP

CAP - wide crankshaft brg.

2шт.

8

A58784

BEARING CAP

CAP - narrow crankshaft brg.

2шт.

9

A58785

BEARING CAP

CAP - crankshaft brg., thrust

1шт.

10

A58566

STEP BOLT

BOLT - brg. cap (5/8 x 4-1/2" N.C.)

10шт.

13

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

2шт.

14

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

15

G11702

COVER

- fuel pump opening

1шт.

16

G46902

GASKET

- cover

1шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - 3/4" socket hd.

1шт.

20

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4" x 1/4" P.T.

1шт.

21

A23656

COCK, DRAIN

VALVE - water drain

1шт.

22

A20739

GAUGE

DIPSTICK ASSY - oil level, Includes: Ref. 23

1шт.

23

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - sealing (3/4 x 1 x 1/8")

2шт.

25

A58732

COVER

- auxiliary pump opening

1шт.

26

A58617

GASKET

-, Serial Range: cover-flange

1шт.

27

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.
