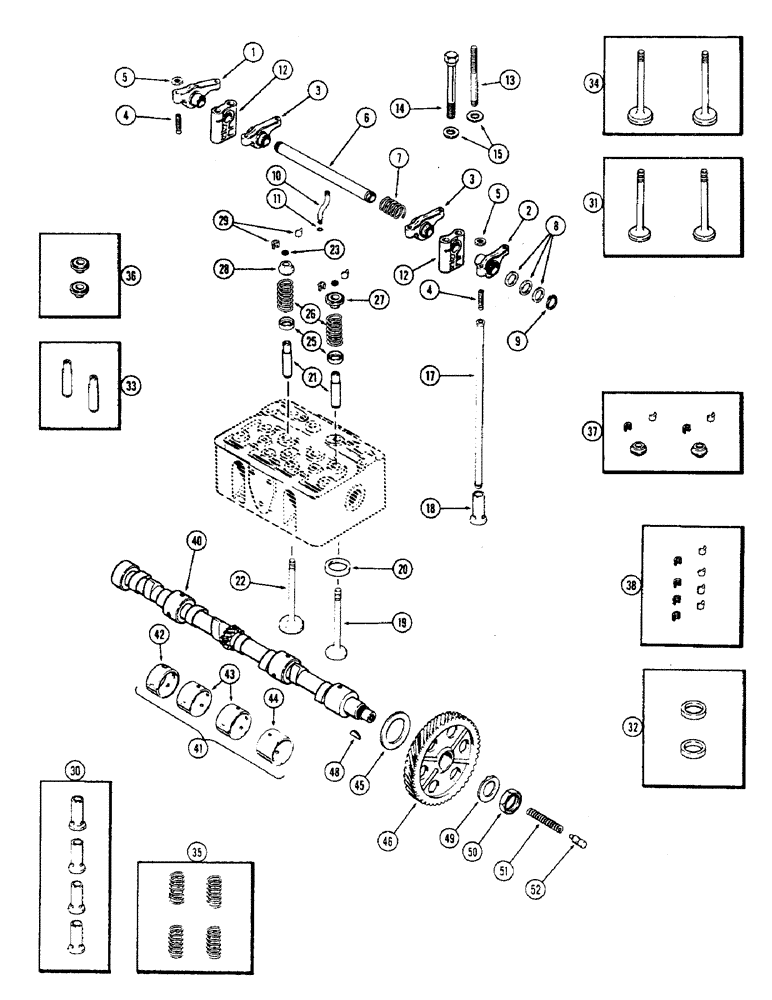

Запчасти Case W7E (036) - VALVE MECHANISM & CAMSHAFT, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A22324

ROCKER

ARM ASSY - rocker, exhaust valve #1 & #3 cyl. (Includes Ref. 4 & 5)

2шт.

2

A22326

ROCKER

ARM ASSY - rocker, exhaust valve #2 & #4 cyl. (Includes Ref. 4 & 5)

2шт.

3

A22322

ROCKER

ARM ASSY - rocker, intake valve, Includes: Ref. 4 and 5

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

1шт.

6

A57532

SHAFT

- rocker arm

2шт.

7

A27877

SPRING

- rocker shaft

2шт.

8

A27878

WASHER

- end, rocker shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

10

A27879

TUBE

- oil, rocker shaft

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

2шт.

12

A61128

BRACKET

- rocker shaft

4шт.

13

A60885

STUD

- bracket & cover (7/16" N.C. x 6-1/16")

4шт.

14

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

4шт.

15

195-29

WASHER,7/16"

- plain, 13/32 x 3/16 x 5/64"

8шт.

17

A21060

ROD

- push

8шт.

18

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order Ref. 30)

8шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 31)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 32)

4шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order Ref. 33)

8шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 34)

4шт.

23

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- oil valve, stem

8шт.

25

A58623

SEAT

- valve spring

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve (Order Ref. 35)

8шт.

27

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve spring (Order Ref. 36)

4шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order Ref. 36)

4шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order Ref. 38)

16шт.

30

A21653

KIT

LIFTERS - push rod (Std.) (Set of 4)

2шт.

30

A22463

KIT

LIFTERS - push rod (.010" oversize) (Set of 4)

2шт.

31

A42017

KIT

VALVES - exhaust (Set of 2)

2шт.

32

A33454

INSERT

S - exhaust valve seat (Set of 2)

2шт.

33

A21673

GUIDE

S - valve stem (Set of 2)

4шт.

34

A42016

KIT

VALVES - intake (Set of 2)

2шт.

35

A42895

SPRING

S - valve (Set of 4)

2шт.

36

A57433

COIL

ROTO-CAPS - exhaust valve (Set of 2)

2шт.

37

A21657

LOCK

RETAINERS - intake valve (Set of 2 w/locks)

2шт.

38

A40352

LOCK

S - valve spring (Set of 8)

2шт.

40

A58792

CAMSHAFT - engine

1шт.

41

A23577

KIT

BUSHING - camshaft (Set of 4), Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-5/32" wide)

1шт.

43

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-7/16" wide)

2шт.

44

NSS

NOT SOLD SEPARAT

BUSHING - front (1-21/32" wide)

1шт.

45

A21017

WASHER

- camshaft thrust

1шт.

46

A22604

GEAR

- camshaft

1шт.

48

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to shaft #18, 1/4" x 1 1/8"

1шт.

49

A26444

LOCK WASHER

- lock, camshaft nut

1шт.

50

A26445

NUT

- camshaft

1шт.

51

CASA27853

SPRING

- thrust plunger, camshaft

1шт.

52

A27852

PLUNGER

- thrust, camshaft

1шт.
