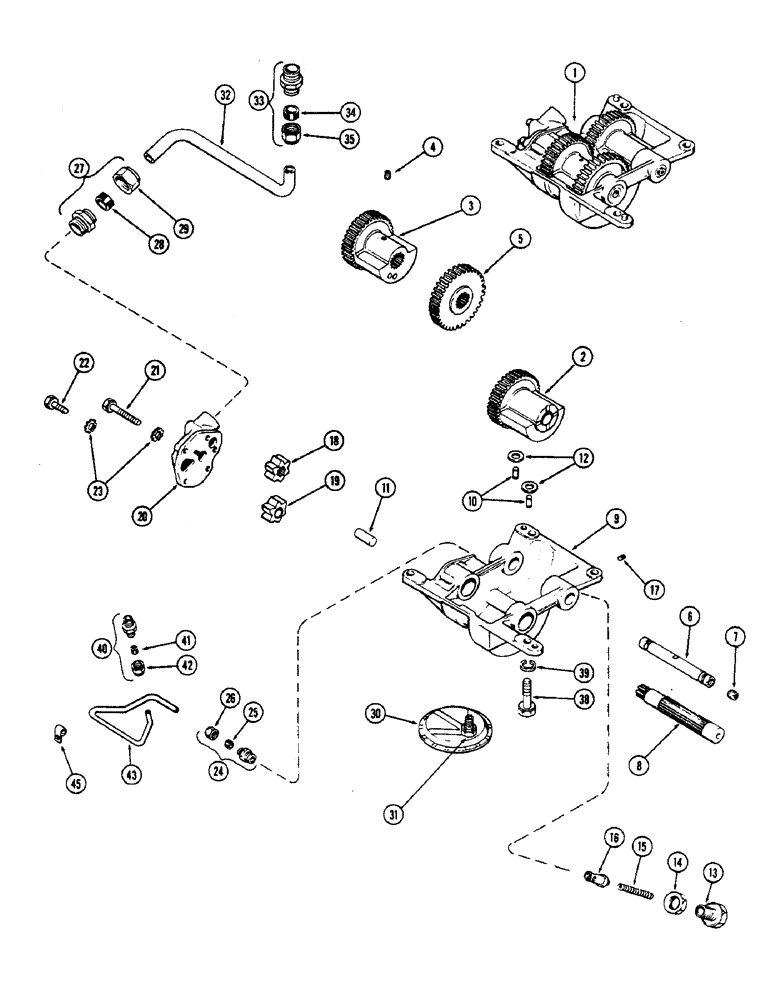

Запчасти Case W7E (023A) - BALANCER AND OIL PUMP, (301B) DIESEL ENGINE, 3 GEAR TYPE (02) - ENGINE

1

A62235

BALANCER

& PUMP ASSY., Includes: Ref. 2 - 29

1шт.

2

A62236

WEIGHT

COUNTERWEIGHT ASSY. - driven (Replaces A22546)

1шт.

3

A62238

WEIGHT

COUNTERWEIGHT - drive (Splined) (Replaces A22561)

1шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. socket hd. cup pt.

1шт.

5

A57958

GEAR

- drive, counterweight

1шт.

6

A22563

SHAFT

- stationary

1шт.

7

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

8

A57957

SHAFT

ASSY - drive, counterweight

1шт.

9

A22541

HOUSING ASSY - balancer, Includes: Ref. 10 and 11

1шт.

10

A8134

PIN

- dowel

2шт.

11

A22543

SHAFT

- stub, oil pump gear

1шт.

12

G49401

SHIM,.005" Thk

Housing to block .005" Thk

1шт.

12

G49402

SHIM,.010" Thk

Housing to block .010" Thk

1шт.

13

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, relief valve

1шт.

14

A27858

NUT

- adjusting screw

1шт.

15

A61958

VALVE SPRING

SPRING - relief valve, oil pump

1шт.

16

A22566

PLUNGER

- relief valve, oil pump

1шт.

17

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" socket hd. cone pt.

1шт.

18

A22564

GEAR

- drive, oil pump (Splined)

1шт.

19

A22555

GEAR

ASSY - driven (Includes bushing)

1шт.

20

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

23

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

24

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY - oil tube to housing 1/4" P.T., Includes: Ref. 25 and 26

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY - oil inlet tube, 1/2" P.T., Includes: Ref. 28 and 29

1шт.

28

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

29

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

30

A22590

FILTER SCREEN

SCREEN ASSY - oil inlet

1шт.

31

A21235

FITTING

ADAPTER - tube to screen, 1/2" male x 1/2" female P.T.

1шт.

32

A62745

TUBE

- oil, Serial Range: pump-filter

1шт.

33

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY - 1/2" P.T., Includes: Ref. 34 and 35

1шт.

34

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

35

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

38

113-824

BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 5

- 1/2 x 1-1/2" N.C. hex.

4шт.

39

92-8

LOCK WASHER,1/2"

4шт.

40

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY - 1/8" P.T., Includes: Ref. 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

43

A58857

TUBE

- oil, balancer shaft

1шт.

45

A20541

CLIP

- oil tube

1шт.
