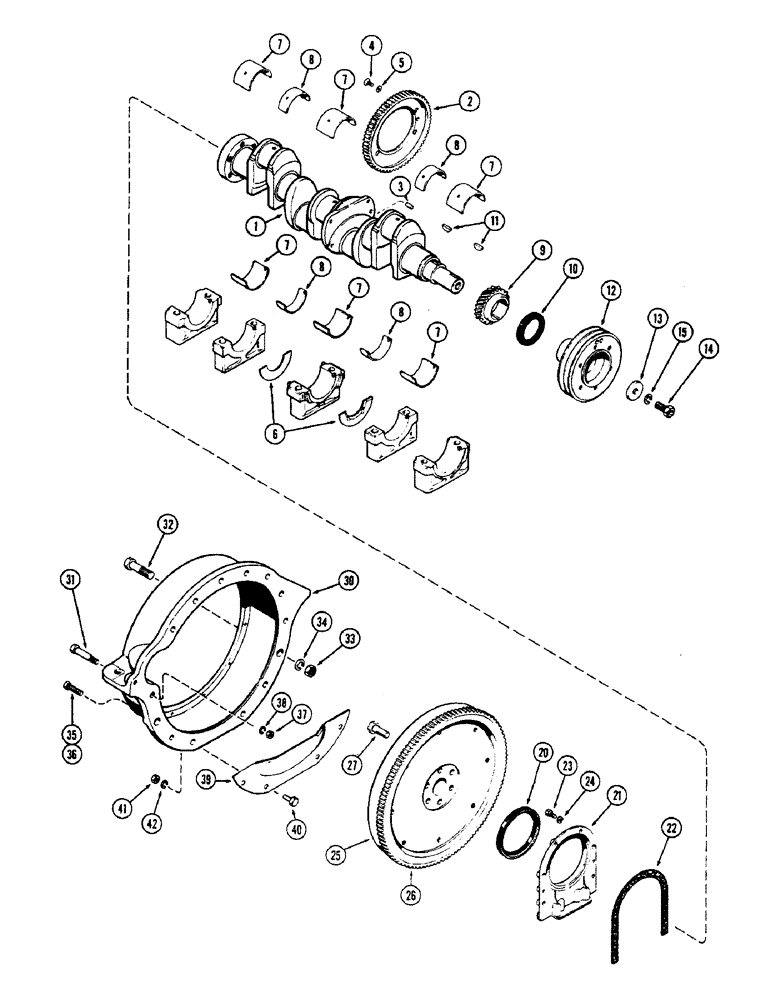

Запчасти Case W7E (018) - CRANKSHAFT, FLYWHEEL & HOUSING, (301B) DIESEL ENGINE (02) - ENGINE

1

A58889

CRANKSHAFT

- engine

1шт.

2

A62450

GEAR

- balancer drive (86T) (Used w/2 gear balancer) (See figure 22) (Ref. #3 not included), Includes: Ref. 3

1шт.

2

A22576

GEAR

ASSY - balancer drive (106T) (Used w/3 gear balancer) (See figure 23A), Includes: Ref. 3

1шт.

3

A8134

PIN

- dowel, Serial Range: gear-crankshaft

1шт.

4

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW -, Serial Range: gear-crankshaft

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

6

A58786

WASHER

- thrust, crankshaft

2шт.

6

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (.006" oversize)

2шт.

7

A41987

LINING

LINERS - wide, crankshaft bearing (Std.)

3шт.

7

A42191

LINING

LINERS - wide, crankshaft bearing (.002" undersize)

3шт.

7

A42192

BEARING LINER

LINERS - wide, crankshaft bearing (.010" undersize)

3шт.

7

A42193

LINER

S - wide, crankshaft bearing (.020" undersize)

3шт.

7

A42194

LINING

LINERS - wide, crankshaft bearing (.030" undersize)

3шт.

8

A20394

LINING

LINERS - narrow, crankshaft bearing (Std.)

2шт.

8

A20579

LINING

LINERS - narrow, crankshaft bearing (.002" undersize)

2шт.

8

A20582

LINING

LINERS - narrow, crankshaft bearing (.010" undersize)

2шт.

8

A20585

KIT

LINERS - narrow, crankshaft bearing (.020" undersize)

2шт.

8

A20588

KIT

LINERS - narrow, crankshaft bearing (.030" undersize)

2шт.

9

A58573

GEAR

- crankshaft

1шт.

10

A62049

OIL SEAL

- oil, crankshaft front (2-5/8 x 3-5/8 x 1/2")

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

12

A15486

PULLEY

- fan drive

1шт.

13

A27903

WASHER

- pulley retainer (21/32 x 2-1/8 x 1/4")

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A62050

OIL SEAL

- oil, crankshaft rear (4-3/4 x 5-3/4 x 1/2")

1шт.

21

A57457

RETAINER

- oil seal, crankshaft rear

1шт.

22

A32830

GASKET

- retainer, rear oil seal

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A60692

FLYWHEEL

ASSY, Includes: Ref. 26

1шт.

26

A27920

GEAR

- ring, flywheel (137T)

1шт.

27

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- flywheel, 5/8 x 1-1/2" N.F. hex. (Gr. 8)

6шт.

30

A58684

HOUSING - flywheel

1шт.

31

A61040

STEP BOLT

BOLT - dowel, housing to block (1/2 x 3" N.C.)

1шт.

31

A61041

STEP BOLT

BOLT - dowel, housing to block (1/2 x 2-7/16" N.C.)

1шт.

32

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 12 pt. cap, 3/4 x 3" N.C. (Gr. 8)

2шт.

33

25-1012

NUT,3/4"-10, G5

2шт.

34

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

35

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

3шт.

36

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

3шт.

37

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

5шт.

38

92-8

LOCK WASHER,1/2"

8шт.

39

A58931

GUARD

SHIELD - dust, flywheel

1шт.

40

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

41

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.
