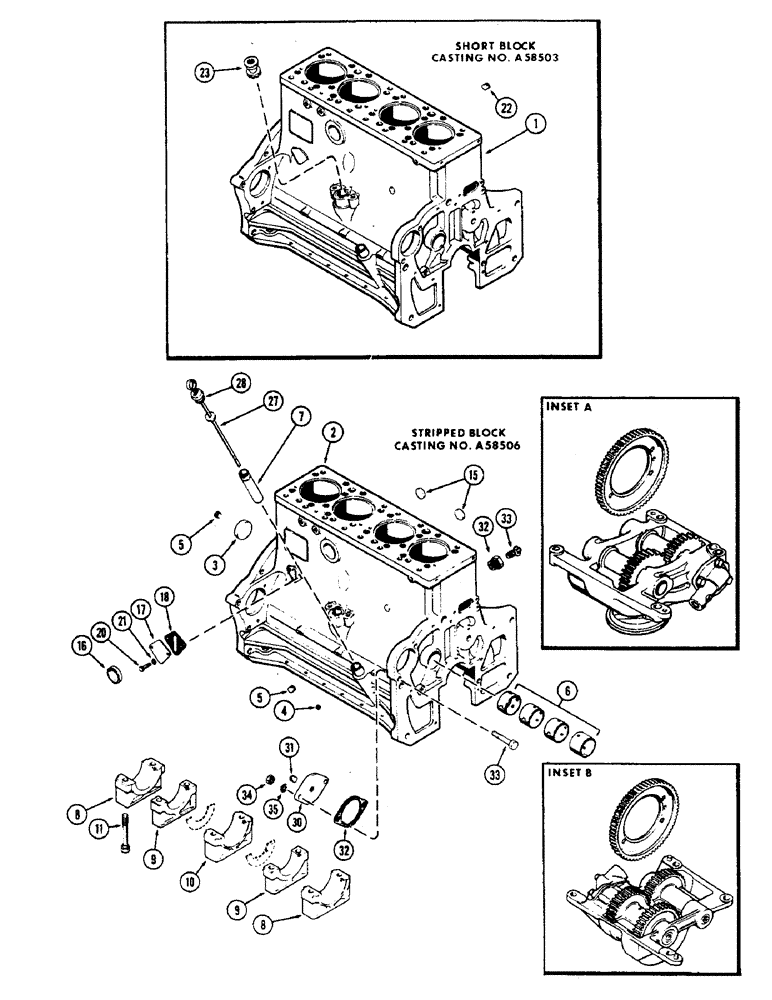

Запчасти Case W7E (016) - CYLINDER BLOCK ASSY., (301B) DIESEL ENGINE (02) - ENGINE

1

A43053

BLOCK

ASSY - short (Includes stripped block, pistons, conn. rods & brgs., crankshaft & brgs., balancer timing gear w/86 teeth, rear oil seal, camshaft & lifters) (Casting No. A58503) (See note & inset A), Includes: Ref. 2 - 23

1шт.

1

A42236

BLOCK ASSY - short (Includes stripped block, pistons, conn. rods & brgs., crankshaft & brgs., balancer timing gear w/106 teeth, rear oil seal, camshaft & lifters) (Casting No. A58503) (See note & inset B), Includes: Ref. 2 - 23

1шт.

2

A42021

ASSY - stripped (Casting No. A58506), Includes: Ref. 3 - 21

1шт.

3

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

4

221-1041

PLUG

- oil gallery, 1/8" P.T. sltd. headless

2шт.

5

221-1843

PLUG

- oil gallery, 3/8" P.T. socket hd.

4шт.

6

A23577

KIT

BUSHING KIT - camshaft

1шт.

7

A34540

TUBE

SOCKET - oil filler & dipstick

1шт.

8

A58783

BEARING CAP

CAP - wide crankshaft bearing

2шт.

9

A58784

BEARING CAP

CAP - narrow crankshaft bearing

2шт.

10

A58785

BEARING CAP

CAP - thrust bearing, crankshaft

1шт.

11

A58566

STEP BOLT

BOLT - bearing cap (5/8 x 4-1/2" N.C.)

10шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

2шт.

16

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

17

G11702

COVER

- fuel pump opening

1шт.

18

G46902

GASKET

- cover

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - L.H. side, 3/4" P.T. socket hd.

1шт.

23

A34266

DRIVE

ASSY - tachometer

1шт.

27

A20739

GAUGE

DIPSTICK ASSY - oil level, Includes: Ref. 28

1шт.

28

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (3/4 x 1 x 1/8")

2шт.

30

A58891

COVER

- pump opening

1шт.

31

221-1843

PLUG

- 3/8" P.T. socket hd.

1шт.

32

A58617

GASKET

- cover, pump opening

1шт.

33

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

2шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

32

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4" P.T. x 1/4" P.T.

1шт.

33

A23656

COCK, DRAIN

VALVE - drain, water

1шт.
