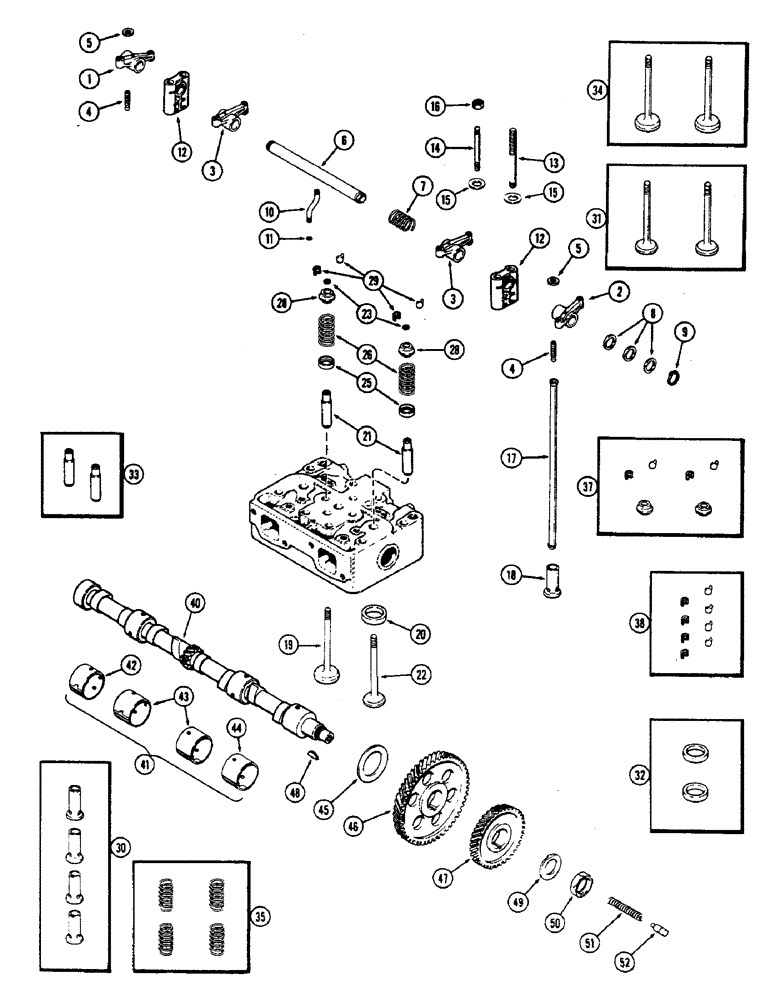

Запчасти Case W7E (014) - VALVE MECHANISM & CAMSHAFT, (301B) DIESEL ENGINE (02) - ENGINE

1

A58655

ARM

- rocker, exhaust valve, 1st & 3rd cyl.

2шт.

2

A58656

ARM

- rocker, exhaust valve, 2nd & 4th cyl.

2шт.

3

A58654

ARM

- rocker, intake valve

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

8шт.

6

A57532

SHAFT

- rocker arm

2шт.

7

A27877

SPRING

- rocker shaft

2шт.

8

A57878

WASHER - rocker shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

10

A58657

TUBE

- oil, rocker shaft

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (1/16 x 3/16 x 5/16")

2шт.

12

A61128

BRACKET

- rocker arm shaft

4шт.

13

A60885

STUD

- bracket, rocker shaft (7/16" N.C. x 6-7/16")

4шт.

14

A58659

STUD

- bracket, rocker shaft (7/16" N.C. x 4-5/16")

4шт.

15

195-29

WASHER,7/16"

- plain, 15/32 x 59/64 x 5/64"

8шт.

16

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

8шт.

17

A58596

ROD

- push

8шт.

18

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order Ref. 30)

8шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 31)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 32)

4шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order Ref. 33)

8шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 34)

4шт.

23

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

25

A58623

SEAT

- valve spring

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve (Order Ref. 35)

8шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order Ref. 37)

8шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring

16шт.

30

A21653

KIT

LIFTERS - push rod (Set of 4) (Std.)

2шт.

30

A22463

KIT

LIFTERS - push rod (Set of 4) (.010" oversize)

2шт.

31

A42130

VALVE

S - exhaust (Set of 2)

2шт.

32

A57485

INSERT

S - exhaust valve seat (Set of 2)

2шт.

33

A41781

GUIDE

S - valve stem (Set of 2)

4шт.

34

A42129

PACKAGE

VALVES - intake (Set of 2)

2шт.

35

A42895

SPRING

S - valve (Set of 4)

2шт.

37

A21657

LOCK

RETAINERS - intake valve (Set of 2 w/locks)

4шт.

38

A40352

LOCK

S - valve spring (Set of 8)

2шт.

40

A62733

SHAFT

CAMSHAFT - (1st used eng. ser. no. 2324460)

1шт.

40

A58724

CAM

SHAFT - (Used prior to eng. ser. no. 2324460) (Order A62733 camshaft & 126-227 Hi-Pro key)

1шт.

41

A23577

KIT

BUSHINGS - camshaft (Set of 4), Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-5/32" wide)

1шт.

43

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-7/16" wide)

2шт.

44

NSS

NOT SOLD SEPARAT

BUSHING - front (1-21/32" wide)

1шт.

45

A21017

WASHER

- thrust (2-1/4 x 3-1/4 x 1/8")

1шт.

46

A58592

GEAR

- camshaft

1шт.

47

A58593

GEAR

- idler drive

1шт.

48

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro (Used w/A62733 camshaft)

1шт.

48

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

(Used w/A58724 camshaft) #C, 5/16" x 1 1/8", HT

1шт.

49

A58594

LOCK WASHER

- lock, camshaft nut

1шт.

50

A58595

NUT

- camshaft

1шт.

51

CASA27853

SPRING

- plunger, camshaft thrust

1шт.

52

A27852

PLUNGER

- thrust, camshaft

1шт.
