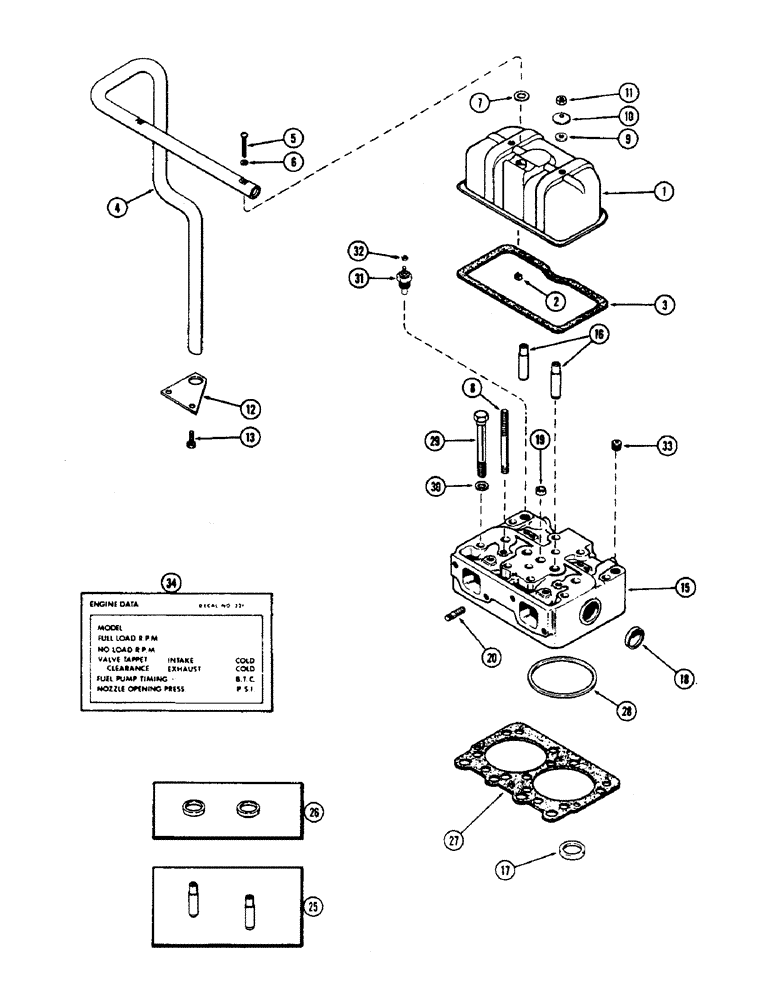

Запчасти Case W7E (012) - CYLINDER HEAD & COVER, (301B) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58929
COVER
ASSY - cylinder head, Includes: Ref. 2
2шт.
2
131-114
SPRING NUT,Rtnr, 1/4" - 20, 0.25" High
NUT - 1/4" N.C. Tinnerman
1шт.
3
A58928
CYLINDER HEAD GASKET
-, Serial Range: cover-head
2шт.
4
A58733
TUBE
- breather
1шт.
5
75-440
SCREW
- mach., 1/4 x 2-1/2" rd. hd.
2шт.
6
A34133
GASKET
- screw to breather tube
2шт.
7
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
-, Serial Range: tube-cover
2шт.
8
A60885
STUD
- cover & rocker arm brkt. (7/16" N.C. x 6-1/16")
4шт.
9
A23684
GASKET
GASKET - cover stud
4шт.
10
A53683
WASHER - dished, cover stud
4шт.
11
25-107
NUT,7/16"-14, G5
- 7/16" N.C. hex.
4шт.
12
A58734
BRACKET
- breather tube (At oil pan)
1шт.
13
193-528
SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"
BOLT - 3/8 x 1-1/2" N.C. spec. (Includes lock washer)
2шт.
15
A58867
CYLINDER
HEAD ASSY - cylinder (Casting No. A58522), Includes: Ref. 16 - 19
2шт.
16
NSS
NOT SOLD SEPARAT
GUIDE - valve stem (Order Ref. 25)
4шт.
17
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (Order Ref. 26)
2шт.
18
A34124
PLUG,Cup, 1 5/8", Stainless
- front & rear (1-5/8" cup type)
2шт.
19
A58620
PLUG,Cup, 3/4", Stainless
- top (3/4" cup type)
1шт.
20
A59077
STUD
- manifold (3/8 x 1-13/16")
16шт.
25
A41781
GUIDE
S - valve stem (Set of 2)
4шт.
26
A57485
INSERT
S - exhaust valve seat (Set of 2)
2шт.
27
A62216
GASKET
- cylinder head
2шт.
28
A59095
GASKET
RING - fire (Std.)
4шт.
28
A42595
GASKET
RING - fire, thick (Coded w/blue stripe)
4шт.
29
A62732
STEP BOLT
BOLT - head to block (5/8 x 5-5/8" N.C. hex.)
20шт.
30
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - head bolt (21/32 x 1 x 3/16")
20шт.
31
F13156
SENDER UNIT
UNIT - sender, engine temperature
1шт.
32
193-1000
NUT,Keps, w/LW,#10-32
- brass, #10-32 Keps
1шт.
34
321-1381
DECAL - engine data
1шт.
A57433
COIL
KIT roto
1шт.
Выбрано товаров: 31
