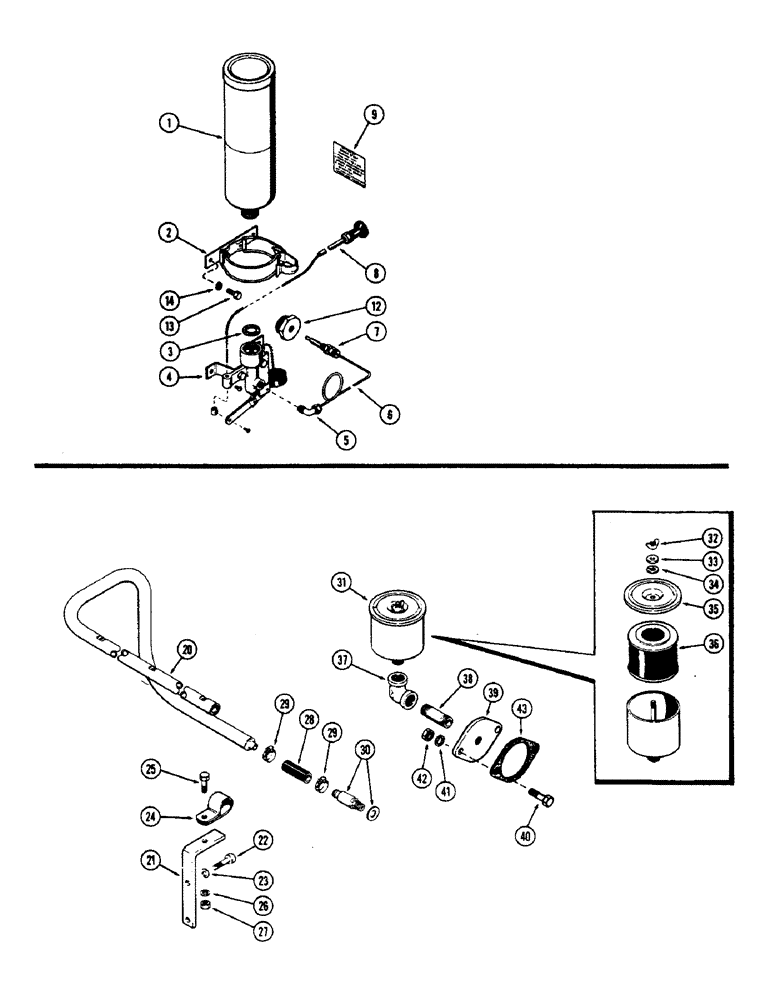

Запчасти Case W7E (011C) - STARTING AID KIT, (301B) DIESEL ENGINE, CRANKCASE VENT ATTACHMENT (301B) SPARK INGITION ENG. (02) - ENGINE

L10681

COLD START KIT, Includes: Ref. 1 - 9

1шт.

1

NS

NOT SERVICED

CYLINDER ASSY - starting fuel (Quick start #LP 657) See Figure 254 for quick start distributor & service outlets)

1шт.

2

L30183

BRACKET

CLAMP ASSY - cylinder

1шт.

3

L30188

GASKET

-, Serial Range: cylinder-valve

1шт.

4

L30180

BODY

VALVE ASSY - starting fuel

1шт.

5

L30181

ELBOW - injection tube

1шт.

6

L30540

TUBE - injection

1шт.

7

L30185

FITTING

-, Serial Range: tube-manifold

1шт.

8

L30182

CABLE - valve actuator

1шт.

9

L30184

DECAL - instructions

1шт.

L10731

LOOM - injection tube (Not illust.)

1шт.

12

L10283

PLUG

- adaptor, Serial Range: fitting-manifold

1шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

A61652

CRANKCASE VENT ATTACHMENT, Includes: Ref. 20 - 43

1шт.

20

A34156

TUBE - breather, crankcase vent attachment (301B) spark ignition engine

1шт.

21

A34152

BRACKET - support, breather tube, crankcase vent attachment (301B) spark ignition engine

1шт.

22

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Crankcase vent attachment (301B) spark ignition engine Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

crankcase vent attachment (301B) spark ignition engine 3/8"

2шт.

24

A24324

CLIP - breather tube, crankcase vent attachment (301B) spark ignition engine

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Crankcase vent attachment (301B) spark ignition engine Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

crankcase vent attachment (301B) spark ignition engine 3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., crankcase vent attachment (301B) spark ignition engine

1шт.

28

A34148

HOSE - breather to manifold, crankcase vent attachment (301B) spark ignition engine

1шт.

29

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 11/16"), crankcase vent attachment (301B) spark ignition engine

2шт.

30

A34147

VALVE ASSY - vent, crankcase vent attachment (301B) spark ignition engine

1шт.

31

A34145

FILTER ASSY - air, crankcase vent attachment (301B) spark ignition engine, Includes: Ref. 32 - 36

1шт.

32

129-104

NUT,7/16"-14, G5

- 1/4" N.C. wing, crankcase vent attachment (301B) spark ignition engine

1шт.

33

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16", crankcase vent attachment (301B) spark ignition engine

1шт.

34

A40768

GASKET - cover, crankcase vent attachment (301B) spark ignition engine

1шт.

35

A40769

COVER - filter element, crankcase vent attachment (301B) spark ignition engine

1шт.

36

A40767

SPARE PART

CARTRIDGE - filter element, crankcase vent attachment (301B) spark ignition engine

1шт.

37

221-1377

ELBOW,90 Degree, 1/2" NPT

- 1/2" P.T., 90 degrees, crankcase vent attachment (301B) spark ignition engine

1шт.

38

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - 1/2" P.T. x 2", crankcase vent attachment (301B) spark ignition engine

1шт.

39

A61654

COVER - cyl. block flange, crankcase vent attachment (301B) spark ignition engine

1шт.

40

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex., crankcase vent attachment (301B) spark ignition engine

2шт.

41

92-6

LOCK WASHER,3/8"

crankcase vent attachment (301B) spark ignition engine 3/8"

2шт.

42

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., crankcase vent attachment (301B) spark ignition engine

2шт.

43

A58617

GASKET

- cover, crankcase vent attachment (301B) spark ignition engine

1шт.
