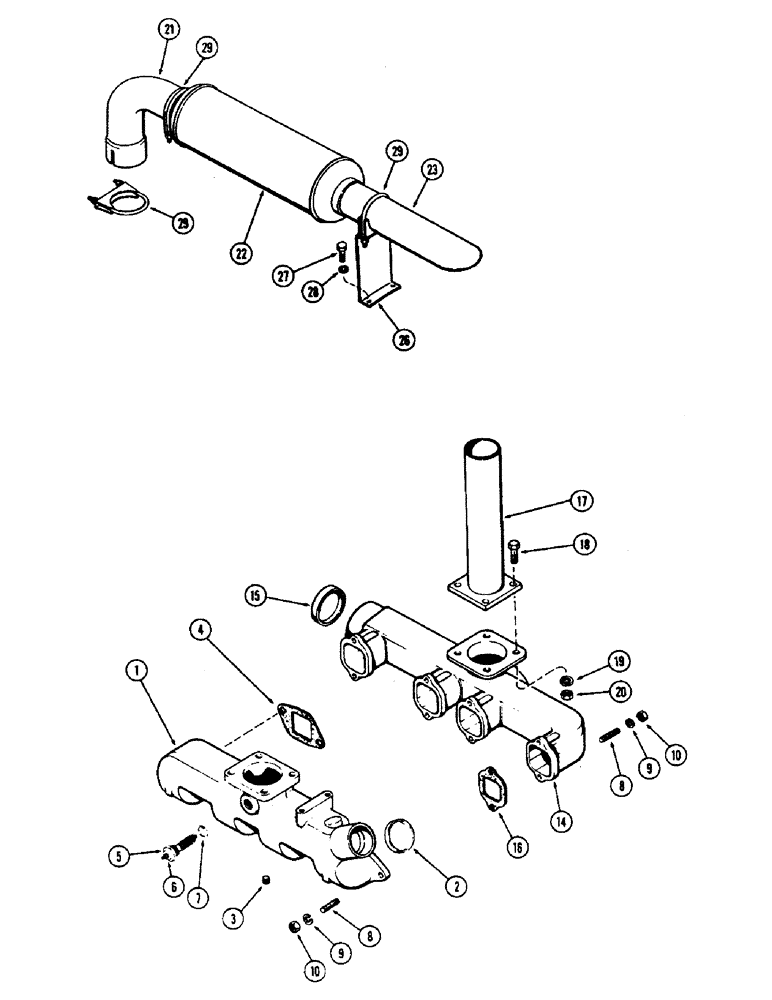

Запчасти Case W7E (008) - MANIFOLD & MUFFLER, (301B) DIESEL ENGINE, HORIZONTAL TYPE - EARLY PRODUCTION (02) - ENGINE

1

A59225

MANIFOLD

ASSY - intake, Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type

1шт.

3

221-1840

PLUG

- 1/8" P.T. socket hd.

1шт.

4

A58662

MANIFOLD GASKET

- intake manifold

4шт.

5

A37775

HEATER

HEADER ASSY - intake manifold, Includes: Ref. 6

1шт.

6

129-503

NUT,1/4"-20, Brass

1шт.

7

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

8

A59077

STUD

- manifolds to head (3/8 N.C. x 1-3/4")

16шт.

9

92-6

LOCK WASHER,3/8"

16шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

16шт.

14

A62290

MANIFOLD

ASSY - exhaust (Replaces A59293), Includes: Ref. 15

1шт.

15

A58750

PLUG,Cup, 3 1/4", Stainless

- 3-1/4" cup type

1шт.

16

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

17

L40583

PIPE

STACK -, Serial Range: exhaust-muffler

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

25-106

NUT,3/8"-16, G5

- 1/2" N.C. hex.

4шт.

21

L40584

ELBOW -, Serial Range: stack-muffler

1шт.

22

A15163

MUFFLER

- exhaust

1шт.

23

L10227

PIPE - tail

1шт.

26

L42255

BRACKET - muffler support

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

A13240

CLAMP,2-5/8" ID

- pipe & muffler

3шт.
