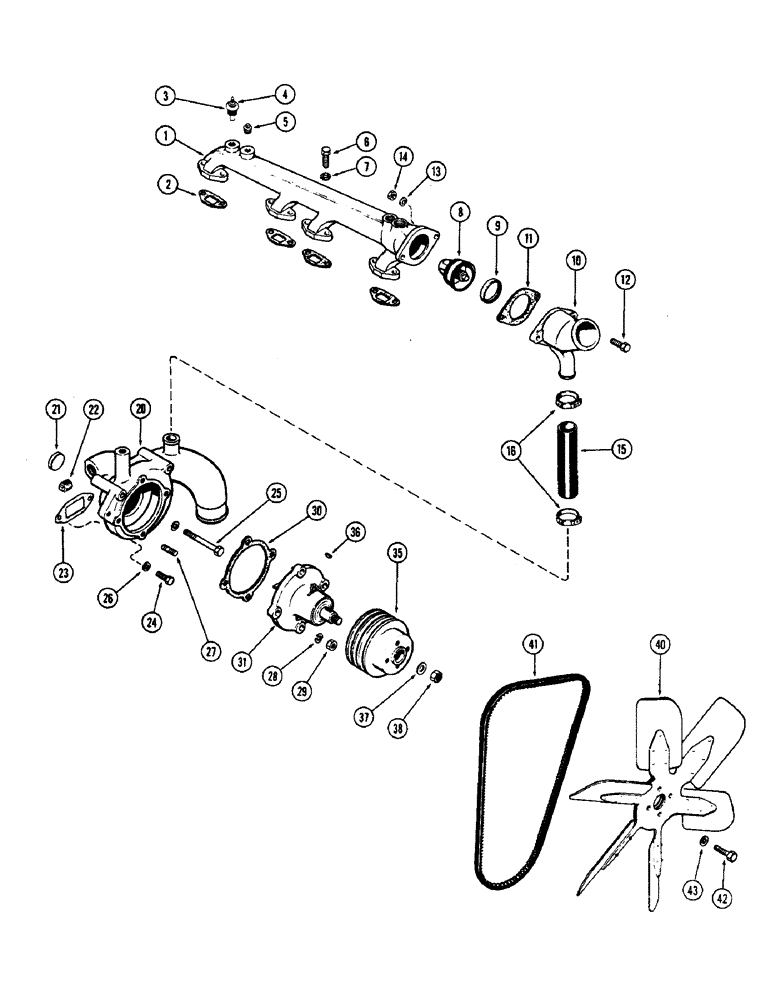

Запчасти Case W7E (007A) - WATER PUMP & ATTACHING PARTS, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A57995

MANIFOLD

- water

1шт.

2

A27905

GASKET

- water manifold

4шт.

3

A65588

SENDER UNIT

UNIT - temperature sending

1шт.

4

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Includes lockwasher)

1шт.

5

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" P.T. sq. hd.

1шт.

6

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

8

A28114

THERMOSTAT

Includes: Ref. 9

1шт.

9

A30954

GASKET

WASHER - seal, thermostat

1шт.

10

A58802

HOUSING - thermostat

1шт.

11

A28113

GASKET

- thermostat housing

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

13

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

15

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- manifold to pump (1-1/4" I.D. x 5-5/16")

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

2шт.

20

A60630

HOUSING

BODY ASSY - water pump, Includes: Ref. 21

1шт.

21

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type

1шт.

22

221-1005

PLUG - 3/4" P.T. sq. hd.

2шт.

23

A58649

GASKET

-, Serial Range: body-block

1шт.

24

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

25

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex.

2шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

A62234

STUD

- water pump to body (3/8" N.C. x 1-5/16")

4шт.

28

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

29

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

4шт.

30

A58646

GASKET

- water, Serial Range: pump-body

1шт.

31

A61266

PUMP

ASSY - water

1шт.

35

A60457

PULLEY - fan & pump drive

1шт.

36

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley to pump shaft #9, 3/16" x 3/4", HT

1шт.

37

A58651

WASHER

- pulley retainer (17/32 x 1-1/16 x 3/32")

1шт.

38

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.

40

L13551

FAN

- suction type (See A17509)

1шт.

40

A17509

FAN

- pusher type

1шт.

41

L19082

BELT

Drive (Set of 2)

1шт.

42

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
