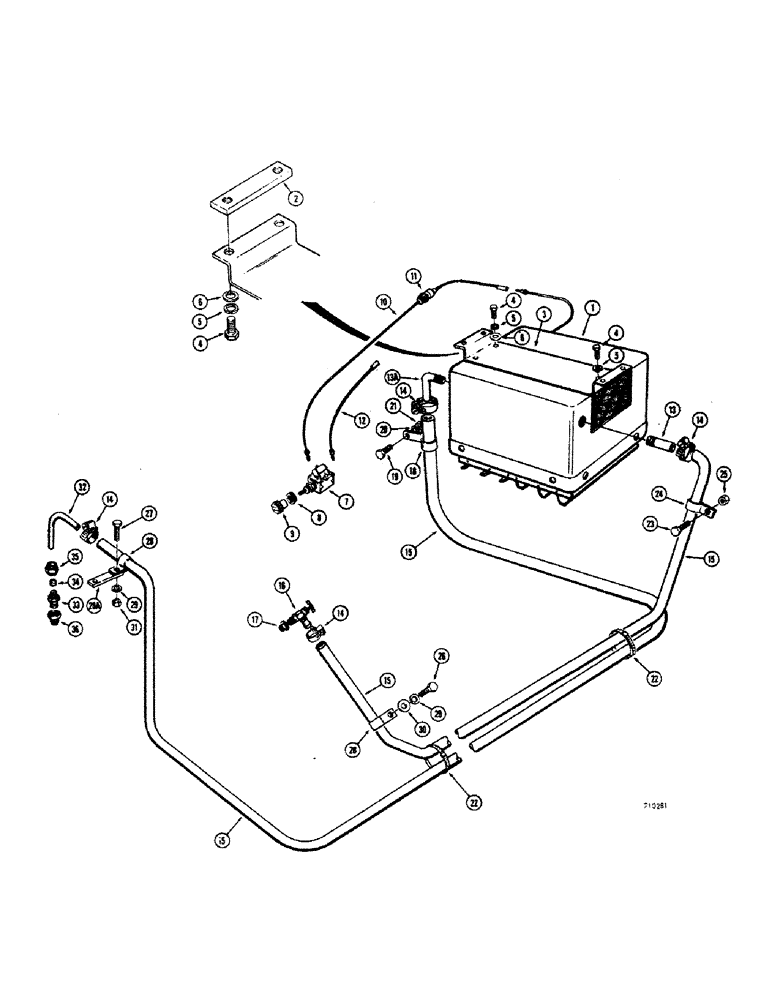

Запчасти Case W7E (247A) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

A19973

HEATER - cab (12 volt) gas models

1шт.

A18347

MOTOR HOUSING

MOTOR - heater (Not shown)

1шт.

L30009

FAN

- heater (Not shown)

1шт.

1

A19972

HEATER - cab (24 volt) diesel models

1шт.

A18348

MOTOR - heater (Not shown)

1шт.

L30009

FAN

- heater (Not shown)

1шт.

2

T42294

BRACKET - heater mounting, Serial Range: (Welded-cab)

2шт.

3

A19939

BRACKET - mounting, Serial Range: heater-cab

1шт.

4

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

7шт.

5

92-5

LOCK WASHER,5/16"

7шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

7шт.

7

A12898

SWITCH

ASSEMBLY - heater

1шт.

8

A19945

NUT - switch mounting

1шт.

9

D53932

KNOB - fan switch

1шт.

10

L34010

WIRE ASSEMBLY - switch to heater (Gas), Includes: Ref. 11

1шт.

11

223-15

FUSE,15 Amp, Type 3AG

- heater fan (15 amp.)

1шт.

10

A19937

WIRE ASSEMBLY - switch to heater (Diesel), Includes: Ref. 11

1шт.

11

223-7

FUSE,7 1/2 Amp, Type SFE

- heater fan (7-1/2 amp)

1шт.

12

A14733

ELECTRICAL WIRE

WIRE - heater switch to key switch

1шт.

13

A19940

PIPE

NIPPLE - straight, heater to hose (If used)

1шт.

13a

A19941

PACKAGE

ELBOW - 90 degrees, Serial Range: heater-hose

1шт.

14

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

15

A19942

HOSE

- heater to engine block

2шт.

16

A16764

VALVE

- shutoff, hose to engine block

1шт.

17

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing (1/2" NPT x 3/8" NPT)

1шт.

18

A17543

CLAMP - heater hose

1шт.

19

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - heater hose

2шт.

23

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

24

A27256

CLAMP

- hose

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

28

A27256

CLAMP

- hose

2шт.

28a

A19330

STRAP - clamp to valve cover

1шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

32

L42521

TUBE - heater hose to connector 0.5" OD x 3, 2.5" L

1шт.

222-29

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - straight male, flex tube (1/2" tube), Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

CONNECTOR - male, straight

1шт.

34

222-105

SLEEVE,182" Tube

- flex tube

1шт.

35

222-105

SLEEVE,182" Tube

NUT - flex tube

1шт.

36

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.
