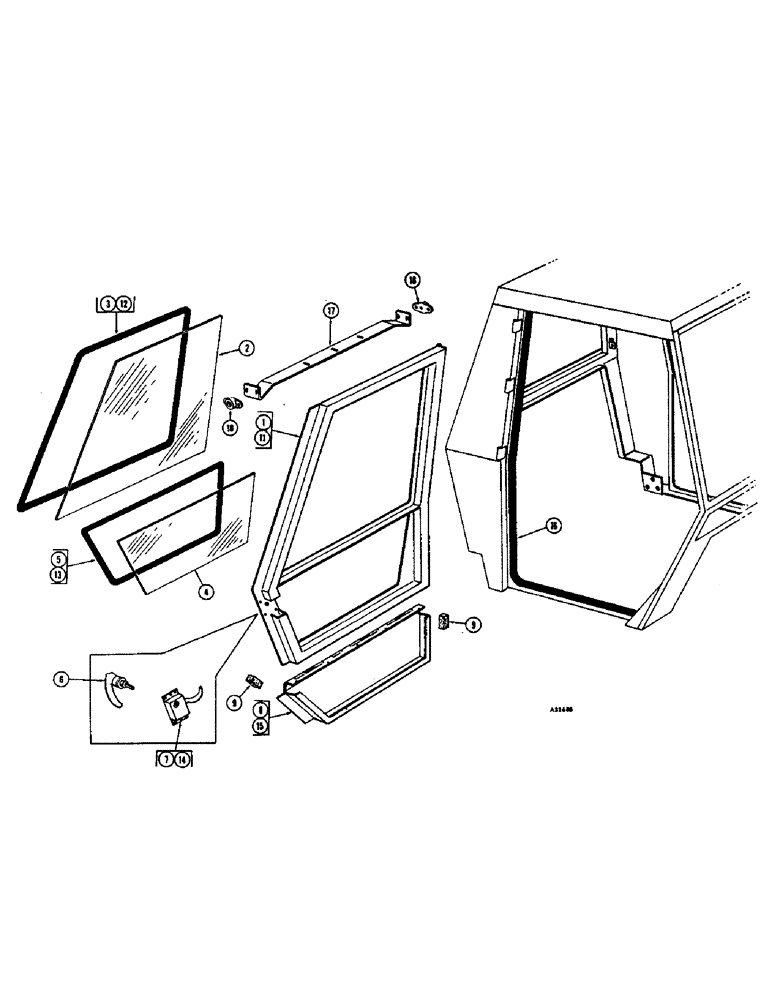

Запчасти Case W7E (244) - CAB DOORS (09) - CHASSIS/ATTACHMENTS

1

T42084

WHEEL

DOOR ASSEMBLY - upper, R.H., Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

GLASS - door, upper (Ref. to figure 248 for glass dimension)

1шт.

3

T42069

SEAL

WEATHERSTRIP - door, upper R.H.

1шт.

When supply of these weatherstrips is exhausted, supply L33724 weatherstrip (144" long). Must be cut to length.

1шт.

4

NSS

NOT SOLD SEPARAT

GLASS - door, lower (Ref. to figure 248 for glass dimension)

1шт.

5

T42070

SEAL

WEATHERSTRIP - door, lower R.H.

1шт.

When supply of these weatherstrips is exhausted, supply L33724 weatherstrip (144" long). Must be cut to length.

1шт.

6

T42074

HANDLE - door

1шт.

7

T42078

LATCH - door R.H.

1шт.

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine #10 x 3/4" N.C. Z.P.

2шт.

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- machine, #10 x 3/8" N.C. Z.P.

4шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

8

T42079

DOOR ASSEMBLY - lower R.H.

1шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- machine, 1/4" x 1/2" N.C. truss hd. Z.P.

5шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

9

T42073

GASKET - upper

2шт.

11

T42083

DOOR ASSEMBLY - upper L.H., Includes: Ref. 2, 12, 4, 13, 6, 14, 15 and 9

1шт.

2

NSS

NOT SOLD SEPARAT

GLASS - door, upper (Ref to figure 248 for glass dimension)

1шт.

12

T42071

SEAL

WEATHERSTRIP - door, upper L.H.

1шт.

When supply of these weatherstrips is exhausted, supply L33724 weatherstrip (144" long). Must be cut to length.

1шт.

4

NSS

NOT SOLD SEPARAT

GLASS - door, lower (Ref. to figure 248 for glass dimension)

1шт.

13

T42072

SEAL

WEATHERSTRIP - door, lower L.H.

1шт.

When supply of these weatherstrips is exhausted, supply L33724 weatherstrip (144" long). Must be cut to length.

1шт.

6

T42074

HANDLE - door

1шт.

14

T42077

LATCH - door L.H.

1шт.

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine #10 x 3/4" N.C. Z.P.

2шт.

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- machine, #10 x 3/8" N.C. Z.P.

4шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

15

T42080

DOOR ASSEMBLY - lower L.H.

1шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- machine 1/4" x 1/2" N.C. truss hd. Z.P.

5шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

9

T42073

GASKET - upper

2шт.

16

NSS

NOT SOLD SEPARAT

MOLDING - door, right and left hand, 12 ft. 3 in. (Order T42075)

2шт.

17

T42196

BRACKET

- door holder (Diesel)

1шт.

17a

T42478

BRACKET

- door holder (Gas) Not shown

1шт.

18

T39480

SOCKET - door

2шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- machine 1/4" x 3/4" N.C. flat head

4шт.

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

25-104

NUT,1/4"-20, G5

4шт.

T42075

MOLDING - slip on (25 ft. roll)

1шт.

19

L35471

KEY - cab door (Set of 2) Now shown

1шт.
