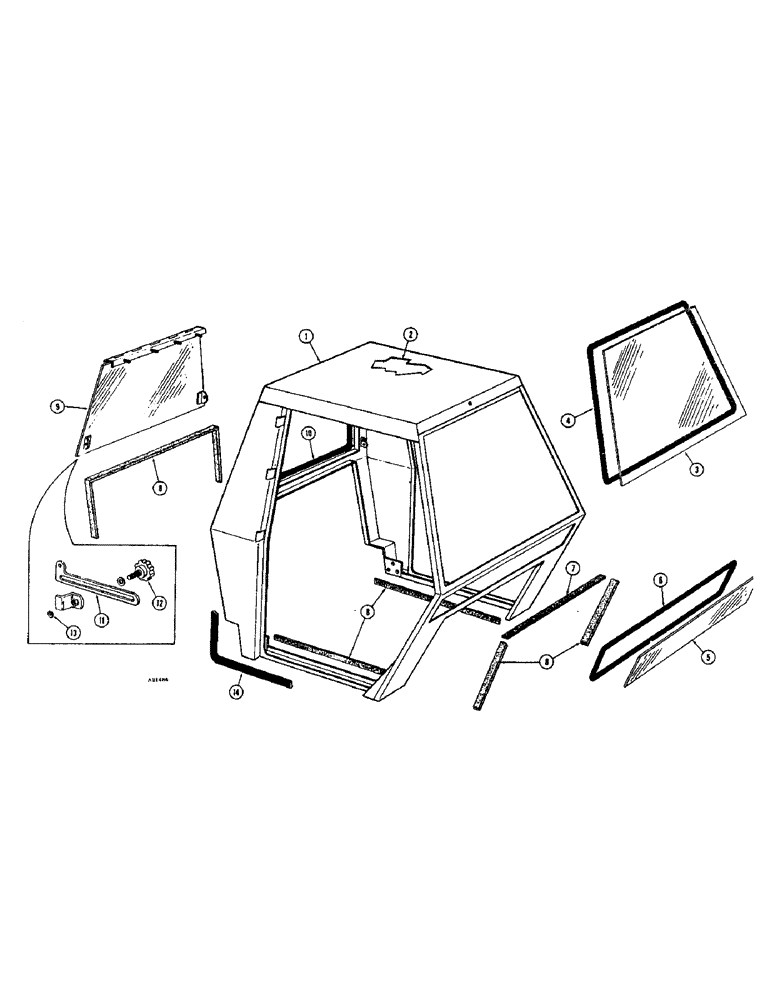

Запчасти Case W7E (242) - OPERATORS CAB, FRONT AND REAR WINDOWS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

CAB ASSEMBLY - operator, less right and left hand doors, Includes: Ref. 2 - 14

1шт.

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Cab to loader front Hex, 1/2"-13 x 1 5/8", G5

2шт.

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

Cab to loader rear Hex, 1/2"-13 x 1 1/8", G5, Full Thd

6шт.

92-8

LOCK WASHER,1/2"

8шт.

95-8

WASHER,1/2"

- plain 1/2"

8шт.

2

T42090

HEADLINER - roof

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - safety, windshield (Ref. to figure 248 for glass dimension)

1шт.

4

T42089

SEAL

WEATHERSTRIP - windshield, upper

1шт.

When supply of these weatherstrips is exhausted, supply L33724 weatherstrip (144" long). Must be cut to length.

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - front, lower (Ref. to figure 248 for glass dimension)

1шт.

6

T42088

SEAL

WEATHERSTRIP - front, lower

1шт.

When supply of these weatherstrips is exhausted, supply L33724 weatherstrip (144" long). Must be cut to length.

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - front top, 2.4 ft. (Use T42087)

1шт.

T42087

GASKET - front top (25 ft. roll)

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - sides, bottom and rear top (12 ft.) Use T42076

1шт.

T42076

GASKET - sides (50 ft. roll)

1шт.

9

T42091

WINDOW ASSEMBLY - rear, swing out

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , on studs 1/4"

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, on studs

4шт.

10

NSS

NOT SOLD SEPARAT

MOLDING - rear window, 8 ft. (Order T42075)

1шт.

11

T42065

ARM - adjusting, rear window

2шт.

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

- machine, 1/4" x 5/8" N.C. truss hd. ZP

2шт.

195-518

WASHER,1/4", SAE

- plain, 9/32" Z.P.

2шт.

131-506

NUT,1/4-20

LOCKNUT - 1/4" N.C. Z.P.

2шт.

12

T39484

KNOB

- rear window

2шт.

195-524

WASHER,5/16"

- plain 3/8" Z.P.

2шт.

13

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

14

NSS

NOT SOLD SEPARAT

MOLDING - door, right and left hand, 12 ft. 3 in. (Order T42075)

2шт.

T42075

MOLDING - slip on (25 ft. roll)

1шт.
