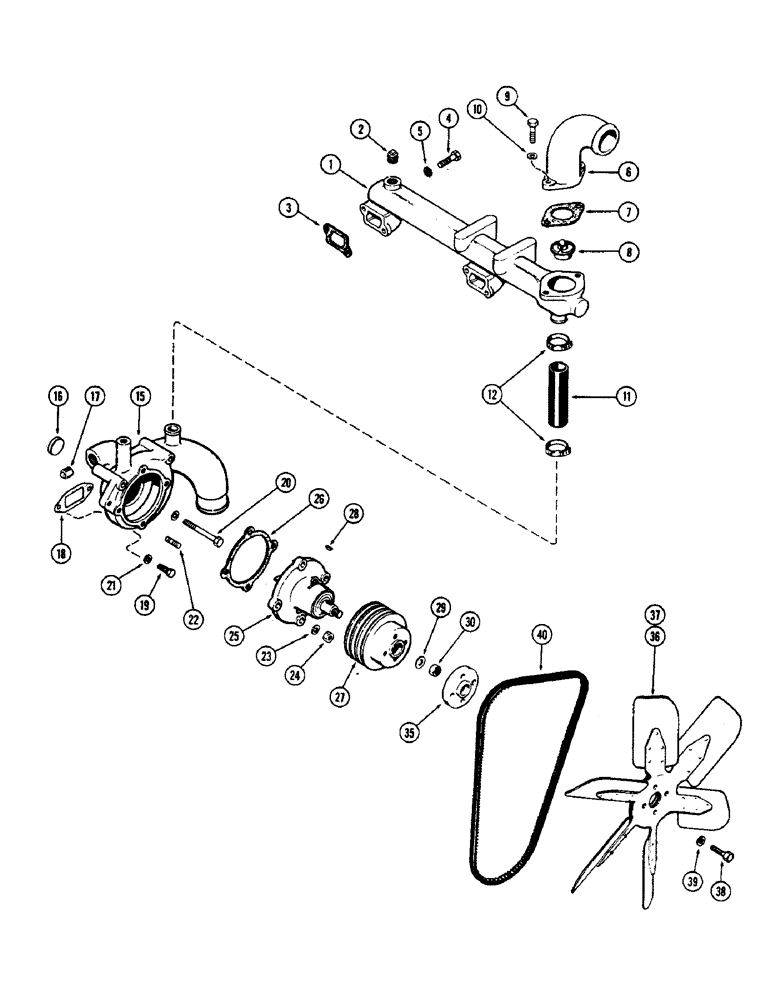

Запчасти Case W7E (006) - WATER PUMP & ATTACHING PARTS, (301B) DIESEL ENGINE (02) - ENGINE

1

A58735

MANIFOLD

- water

1шт.

2

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

3

A58637

MANIFOLD GASKET

- water manifold

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

6

A60636

HOUSING

- thermostat

1шт.

7

G46907

GASKET

- thermostat housing

1шт.

8

A57641

THERMOSTAT

1шт.

9

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

10

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

11

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- manifold to pump (1-1/4" I.D. x 5-5/16")

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

2шт.

15

A60630

HOUSING

BODY ASSY - water pump, Includes: Ref. 16

1шт.

16

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type

1шт.

17

221-1005

PLUG - pipe, 3/4" P.T. sq. hd.

2шт.

18

A58649

GASKET

-, Serial Range: body-block

1шт.

19

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

20

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex.

2шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

A62234

STUD

- pump to body (3/8" N.C. x 1-5/16")

4шт.

23

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

24

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

4шт.

25

A61266

PUMP

ASSY - water

1шт.

26

A58646

GASKET

-, Serial Range: pump-body

1шт.

27

A60457

PULLEY - pump & fan drive

1шт.

28

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley to pump shaft #9, 3/16" x 3/4", HT

1шт.

29

A58651

WASHER

- retaining (17/32 x 1-1/16" x 3/32")

1шт.

30

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.

35

A61283

BUSHING

SPACER -, Serial Range: fan-pulley

1шт.

36

L13551

FAN

- suction type (See A17509)

1шт.

37

A17509

FAN

- pusher type

1шт.

38

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

L19082

BELT

Drive (Set of 2)

1шт.
