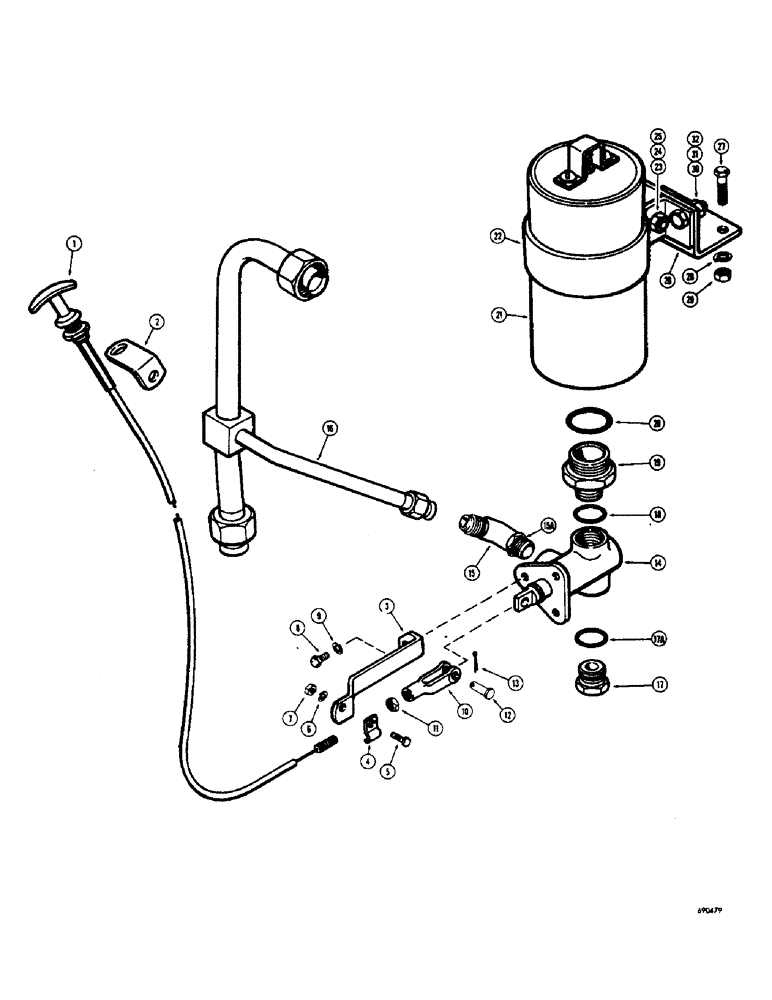

Запчасти Case W7E (238) - ACCUMULATOR ATTACHMENT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A18708
CABLE - accumulator control
1шт.
2
A18706
BRACKET - control cable, upper
1шт.
3
A18707
BRACKET - control cable, lower
1шт.
4
A26673
CLIP
- control cable
1шт.
5
13-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
1шт.
6
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
7
25-104
NUT,1/4"-20, G5
1шт.
8
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
1шт.
9
92-5
LOCK WASHER,5/16"
1шт.
10
A56576
YOKE - control cable
1шт.
11
25-145
JAM NUT,Jam, 5/16"-18, G5
- 5/16" N.C. hex, jam
1шт.
12
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke end 5/16" x .940"
1шт.
13
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
14
A13758
VALVE - accumulator (Parts list figure 240)
1шт.
15
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- adjustable, 90 degrees, Incl. Ref. 15A
1шт.
15a
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - seal
1шт.
16
A18705
TUBE - valve to outer manifold
1шт.
17
A13760
X
PLUG - valve, Includes: Ref. 17A
1шт.
17a
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - seal
1шт.
18
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - seal
1шт.
19
A13759
FITTING
- reducer
1шт.
20
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
"O" RING - seal, large
1шт.
21
A18702
ACCUMULATOR - hydraulic (Parts list figure 240)
1шт.
22
A18703
CLAMP - accumulator mounting
1шт.
23
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8" x 2-1/2" N.C. hex
1шт.
24
92-6
LOCK WASHER,3/8"
1шт.
25
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
1шт.
26
A18704
BRACKET - accumulator mounting
1шт.
27
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
28
92-5
LOCK WASHER,5/16"
4шт.
29
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex.
4шт.
30
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
31
92-6
LOCK WASHER,3/8"
2шт.
32
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
2шт.
