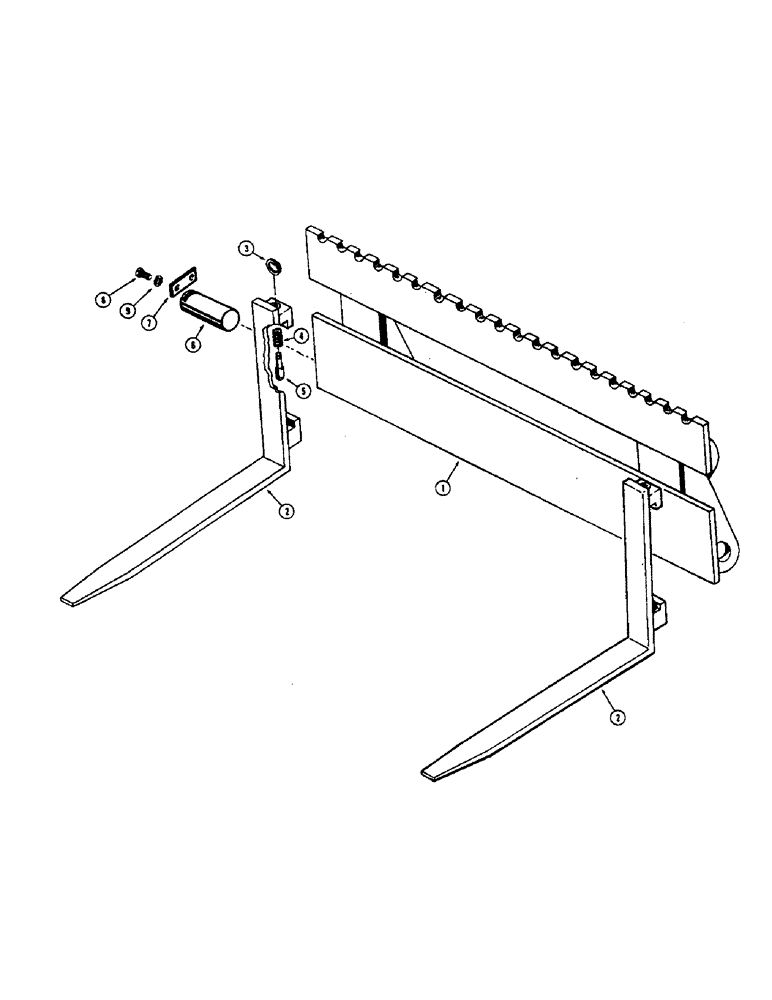

Запчасти Case W7E (202) - FORK LIFT ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

A17600

FRAME - mounting, fork lift

1шт.

L18300

FORK ASSEMBLY - pallet, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

FORK - pallet

1шт.

3

D41289

RING

- split key

1шт.

4

D52904

VALVE SPRING

SPRING - pin retaining

1шт.

5

D38359

PIN,12.7mm OD x 95.25mm L

PIN - fork position

1шт.

A12071

WASHER

- pivot pin (Not illustrated)

1шт.

6

A17561

PIN

- pivot

4шт.

7

L17207

LOCK ASSY

LOCK - pin

4шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

9

92-6

LOCK WASHER,3/8"

8шт.
