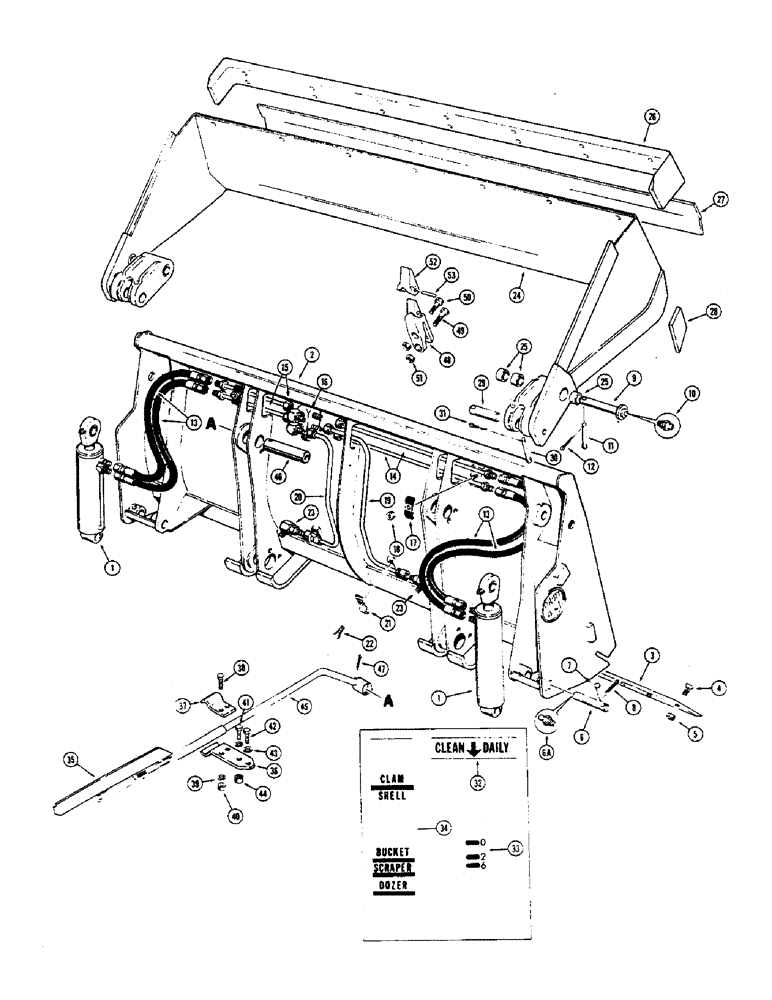

Запчасти Case W7E (196) - DROTT 4-IN-1 BUCKET (09) - CHASSIS/ATTACHMENTS

A18488

BUCKET - Drott, without teeth (1 cu. yd.) Mach. item, Includes: Ref. 1 - 32

1шт.

1

A18679

CYLINDER

- clam (Parts list figure 236)

2шт.

A18657

BLADE ASSEMBLY - bucket, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

3

A18658

EDGE

- cutting, blade

1шт.

4

19-1232

CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 5

BOLT - plow head, 3/4" x 2" N.C.

14шт.

5

25-1012

NUT,3/4"-10, G5

14шт.

6

A18665

PIN

- cylinder to blade, Includes: Ref. 6A

2шт.

6a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

7

A18666

PIN

- clevis, 1/2" dia. x 3-3/4"

2шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

9

A18663

PIN

- clam to blade, Includes: Ref. 10

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

11

A18664

CLEVIS PIN

PIN - clevis, 3/8" dia. x 2-1/4"

2шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

13

A17687

HOSE ASSY.

HOSE - clam cylinder to relief valve (20" long)

4шт.

14

A18674

TUBE

- relief valve to R.H. clam cylinder

2шт.

15

A18675

TUBE

- relief valve to L.H. clam cylinder

2шт.

16

A17701

VALVE

- relief (Parts list figure 198)

1шт.

17

A17696

COLLAR CLAMP

CLAMP -, Serial Range: tube-blade

2шт.

18

25-106

NUT,3/8"-16, G5

- 3/8" N.C hex

2шт.

19

A18676

TUBE

- relief valve to swivel connector, R.H.

1шт.

20

A18677

TUBE - relief valve to swivel connector, L.H.

1шт.

21

A17698

CLAMP -, Serial Range: tube-blade

2шт.

22

15-612

BOLT (SPREADER)

BOLT - 3/8" x 3/4" N.C. hex

2шт.

23

A17688

LINK

CONNECTOR - swivel (Parts list figure 198)

2шт.

A18659

CLAW

CLAM ASSEMBLY - bucket, Includes: Ref. 24 - 31

1шт.

24

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

25

A18662

BUSHING

- pivot, Serial Range: clam-blade

6шт.

26

A18660

BLADE

CUTTING EDGE - clam

1шт.

27

A18661

PLATE

WEAR PLATE - clam

1шт.

28

D38842

HOOK

GRAB HOOK - clam

2шт.

29

A18667

PIN

-, Serial Range: clam-cylinder

2шт.

30

A18666

PIN

- clevis, 1/2" dia. x 3-3/4"

2шт.

31

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

32

A18673

DECAL

- "Clean Daily"

2шт.

33

A18489

DECAL

- clam opening

1шт.

34

321-1322

DECAL - bucket position (Backhoe models only)

1шт.

34

321-1323

DECAL - bucket position (Loader models only)

1шт.

35

L50481

PIPE CLAMP

GAUGE - bucket position indicator

1шт.

36

L40927

TERMINAL CONNECTOR

PLATE - mounting, bucket gauge

1шт.

37

L40925

CLAMP -, Serial Range: gauge-plate

1шт.

38

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

41

13-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

- 5/16" - 18 NC x 1-7/8"

1шт.

42

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

43

92-5

LOCK WASHER,5/16"

2шт.

44

T34922

BUSHING

SPACER - support

1шт.

45

L40581

ROD

- indicator, bucket position

1шт.

46

A17560

PIN

- pivot, indicator mounting

1шт.

47

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

A18668

TOOTH

TEETH - bucket, Includes: Ref. 48 - 53

7шт.

48

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

49

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

50

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex.

1шт.

51

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

52

A18670

POINT

- teeth

1шт.

53

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.
