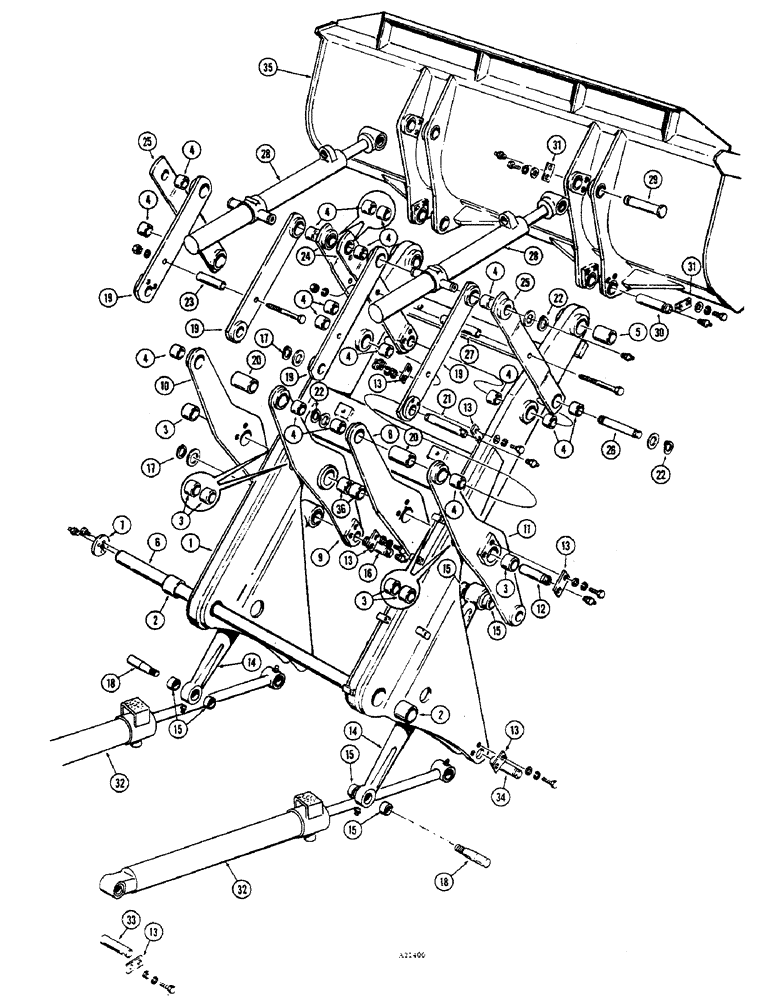

Запчасти Case W7E (190) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

L19161

SPARE PART LIFT FRAME - loader, Incl. Ref. 2 - 5

1шт.

2

A17122

BUSHING

Pivot, lift, Serial Range: frame-chassis

2шт.

3

A12062

BUSHING

Pivot, tilt lever to lift frame

4шт.

4

A13487

BUSHING

Pivot, cylinder link to lift frame

4шт.

5

A16760

BUSHING

Pivot, loader bucket to lift frame

2шт.

6

A17479

SHAFT

Pivot, lift, Serial Range: arm-chassis

1шт.

7

A17480

HARDWARE

PLATE - shaft retainer

2шт.

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

6шт.

195-529

WASHER,7/16", SAE

6шт.

192-22

LOCK WASHER,7/16"

6шт.

219-3

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

T41349

SPARE PART LEVER - tilt, inner RH, Incl. Ref. 36 and 4

1шт.

36

T41342

BUSHING

Lever at lift frame

1шт.

4

A13487

BUSHING

Lever at leveling link

1шт.

9

T41350

DRAG LINK

LEVER - tilt, inner LH, Incl. Ref. 36 and 4

1шт.

36

T41342

BUSHING

Lever, at lift frame

1шт.

4

A13487

BUSHING

Lever, at leveling link

1шт.

10

L19163

SPARE PART LEVER - tilt, outer LH, Incl. Ref. 3 and 4

1шт.

3

A12062

BUSHING

Lever, at lift frame

1шт.

4

A13487

BUSHING

Lever, at leveling link

1шт.

11

L19162

SPARE PART LEVER - tilt, outer RH, Incl. Ref. 3 and 4

1шт.

3

A12062

BUSHING

Lever, at lift frame

1шт.

4

A13487

BUSHING

Lever, at leveling link

1шт.

12

L16326

PIN

Tilt lever to lift frame

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

L17204

LOCK

Pin retainer

12шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

24шт.

92-6

LOCK WASHER,3/8"

24шт.

95-6

WASHER,3/8"

24шт.

14

T41353

PIPE

LINK - leveling, chassis to tilt lever, Incl. Ref. 15

2шт.

15

A17446

BUSHING

Leveling link

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

16

L16258

AXLE PIN

Leveling link to tilt lever

2шт.

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

2шт.

17

D25280

SNAP RING,#175, Ext

2шт.

18

A17449

PIN,31.75mm OD x 155.57mm L

Leveling, Serial Range: link-chassis

2шт.

131-215

NUT

LOCK - 1-1/4" N.F. hex

2шт.

19

L19164

SPARE PART Inner leveling, at tilt lever, Incl. Ref. 4

4шт.

4

A13487

BUSHING

Link

4шт.

20

L16324

SPACER

Tilt lever

2шт.

21

L16306

PIN

Tilt lever to leveling link

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

195-2145

WASHER,1 5/8" x 2 1/2" x .065"

Plain, 1-9/16"

2шт.

22

T37909

SNAP RING,#150, Ext

8шт.

23

L16293

SPACER

Leveling link

2шт.

13-10112

SCREW,Hex, 5/8" - 11 x 7", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

24

L19165

SPARE PART Cylinder pivot, inner, Incl. Ref. 4

2шт.

4

A13487

BUSHING

Pivot link

1шт.

25

L19170

SPARE PART Cylinder pivot, outer, Incl. Ref. 4

2шт.

4

A13487

BUSHING

Pivot link

1шт.

26

L16257

PIN

Cylinder pivot link to lift frame

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

195-2145

WASHER,1 5/8" x 2 1/2" x .065"

Plain, 1-9/16"

2шт.

27

L17210

SPACER

Cylinder link

2шт.

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

28

G32007

SPARE PART Hydraulic, loader tilt (Parts list figure 234)

2шт.

195-2146

WASHER,1.56" ID x 3" OD x 0.13" Thk

Plain, 1-9/16"

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

REF. 28 REPLACED BY G32482

1шт.

29

A17560

PIN

Pivot, RH tilt, Serial Range: cylinder-bucket

1шт.

REF. 29 PIN IS 7 1/16 LONG.

1шт.

30

A17561

PIN

Pivot, LH tilt cylinder and lift, Serial Range: frame-bucket

3шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

REF. 30 PIN IS 6 1/2 LONG

1шт.

31

L17207

LOCK ASSY

Pin retainer

4шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

92-8

LOCK WASHER,1/2"

8шт.

95-8

WASHER,1/2"

8шт.

32

G32016

SPARE PART Hydraulic, loader lift (Parts list figure 232)

2шт.

33

A17345

AXLE PIN

Pivot, lift, Serial Range: cylinder-chassis

2шт.

34

A17344

LOCK

Pivot, lift cylinder to lift frame

2шт.

REF. 34 PIN IS 1 1/2 O.D.

1шт.

35

REF

INSTRUCTION

BUCKET - loader (See figure 194 for optional types.)

1шт.
