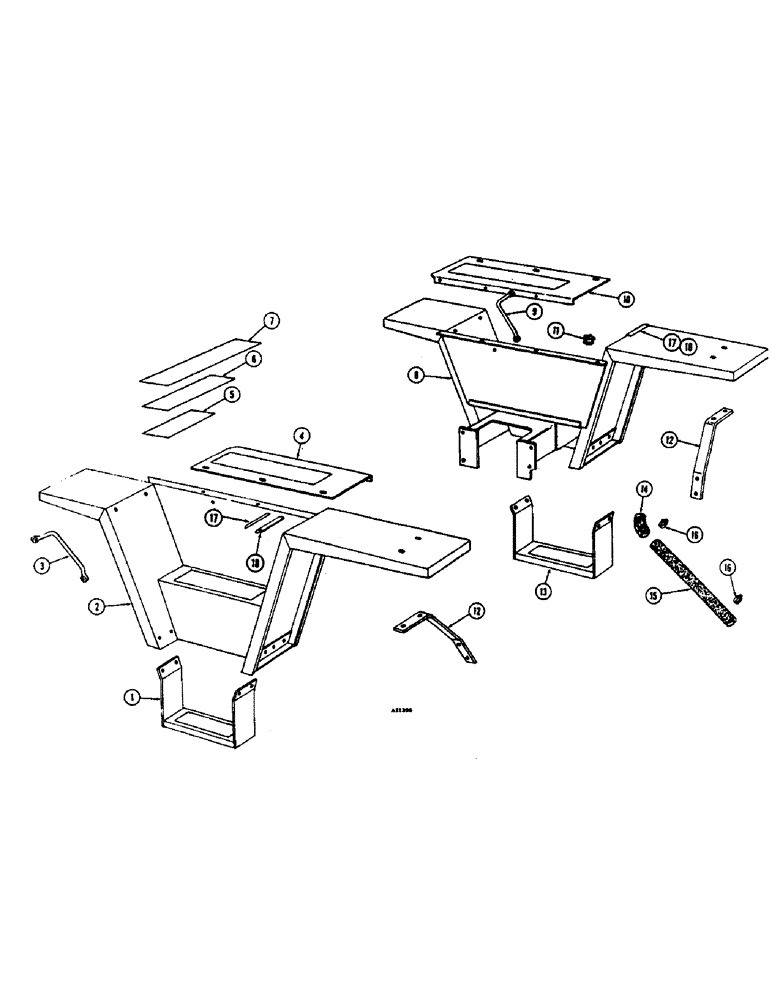

Запчасти Case W7E (142) - FENDERS (09) - CHASSIS

1

T41316

STEP - lower, L.H.

1шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

2

T41400

FENDER - L.H.

1шт.

3

T41322

BAR

- support L.H.

1шт.

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

4

T41395

STEP - top, L.H.

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

192-160

WASHER,5/16"

5/16"

6шт.

195-103

WASHER,5/16"

- Z.P. 5/16"

3шт.

5

T41327

PAPER - anti-skid, lower step, 6" x 12"

2шт.

6

T41329

PAPER - anti-skid, middle step, 6" x 18"

2шт.

7

T41328

PAPER - anti-skid, top step, 6" x 24"

2шт.

8

T41399

FENDER - R.H.

1шт.

9

T41321

BAR

- support R.H.

1шт.

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

10

T41393

STEP - top, R.H.

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

192-160

WASHER,5/16"

5/16"

6шт.

195-103

WASHER,5/16"

- Z.P. 5/16"

3шт.

11

A19631

CAP - filler, transmission

1шт.

12

T41396

SUPPORT

BRACKET - support, rear fender

2шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

195-25

WASHER,3/8"

- Z.P. 3/8"

4шт.

13

T41316

STEP - lower, R.H.

1шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

14

217-187

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

ELBOW - hose, 45 degrees

1шт.

15

L10151

HOSE

- transmission filler

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

17

T42342

STRIP - adhesive

2шт.

18

T42341

STRIP - wear

2шт.
