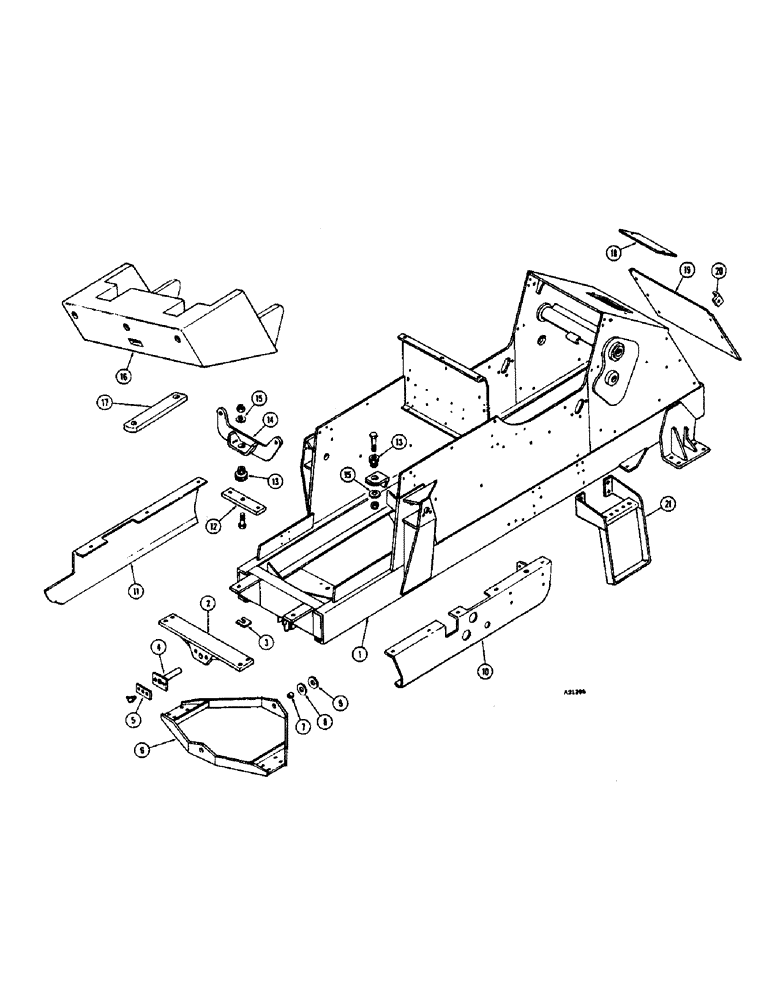

Запчасти Case W7E (140) - CHASSIS, ENGINE MOUNTS AND RELATED PARTS (09) - CHASSIS

1

T41898

CHASSIS - engine and frame, Includes: Ref. 2 and 3

1шт.

2

A17081

BRACKET - pivot, rear axle

1шт.

3

A56516

SHIM,.030" Thk

Pivot bracket to chassis .030" Thk

1шт.

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

4шт.

4

A17095

AXLE PIN

PIN - pivot, rear axle

2шт.

5

A15157

LOCK ASSY

LOCK - pivot bolt, rear axle

2шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees - 1/8 NPT

2шт.

6

A17084

ROD - radius, rear axle, Includes: Ref. 7

1шт.

7

A17094

BUSHING

- mounting, rear axle

2шт.

8

A17098

WASHER

- thrust mounting, rear axle (Thick)

1шт.

9

A17097

WASHER

- thrust mounting, rear axle (Thin)

1шт.

10

L42247

COVER PLATE

PANEL - side, front, R.H.

1шт.

11

L42246

PANEL - side, front, L.H.

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

92-6

LOCK WASHER,3/8"

8шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex jam

1шт.

12

A17514

PLATE - engine support

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

2шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex.

1шт.

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- 5/8" x 4-1/4" N.C. hex.

2шт.

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

3шт.

13

A17515

MOUNTING PARTS

MOUNT - engine, rubber

3шт.

14

L41229

MOUNT - engine, front

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

15

A17516

WASHER

- engine mount

3шт.

16

L42225

COUNTERWEIGHT - rear

1шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

3шт.

195-45

WASHER,3/4"

3шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

25-1012

NUT,3/4"-10, G5

3шт.

17

A13990

DRAWBAR - rear

1шт.

85-1048

SET SCREW,Sq Hd, 5/8"-11 x 3"

SCREW - set, 5/8" x 3" N.C. sq. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

18

L42148

COVER PLATE

PLATE - access, front

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

L42254

COVER PLATE

COVER - chassis, front

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

195-525

WASHER,3/8", SAE

- plain, 38" Z.P.

6шт.

20

A16832

ANGLE

CLIP - cover mounting

6шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

21

A17115

BRACKET

STEP - operator compartment

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

92-6

LOCK WASHER,3/8"

8шт.
