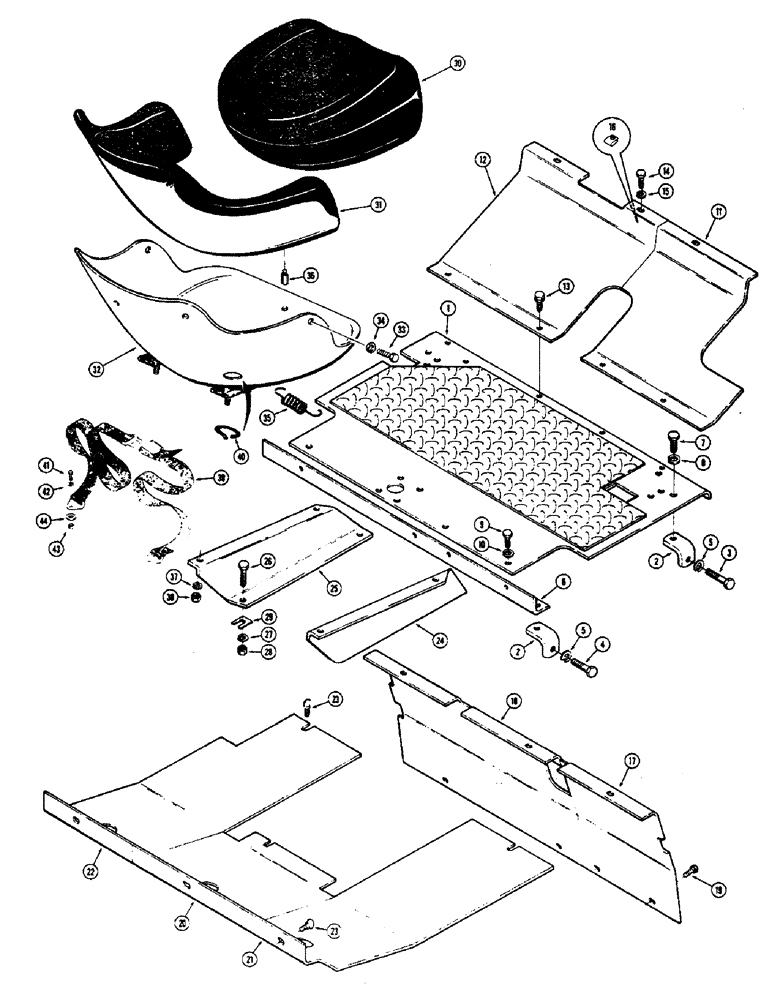

Запчасти Case W7E (138) - PLATFORM, FLOOR PLATES AND SEAT (09) - CHASSIS

1

A17201

PLATE - platform (Before tractor S/N 9900001)

1шт.

1

T42521

TYRE/TIRE

PLATE - platform (Tractor S/N 9900001 and after)

1шт.

2

A16828

SUPPORT

- platform and rear angle

4шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

A17606

ANGLE - platform support, rear

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

11

A17204

COVER PLATE

PLATE - floor, front, R.H.

1шт.

12

A17205

COVER PLATE

PLATE - floor, front, L.H.

1шт.

13

187-1009

BOLT

SCREW - self-tapping, 1/4" x 1" N.C.

4шт.

14

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

16

131-135

SPRING NUT,Tinn, U, 1/4"-20

3шт.

17

A17206

PANEL - operator compartment, front R.H. (Before tractor S/N 9900001)

1шт.

17

T42519

PANEL - operator compartment, front R.H. (Tractor S/N/ 9900001 and after)

1шт.

18

A17207

PANEL - operator compartment, front L.H.

1шт.

19

187-1009

BOLT

SCREW - self-tapping, 1/4" x 3/8" N.C.

4шт.

20

A18933

COVER PLATE

PANEL - operator compartment, top, center

1шт.

21

A18934

SHEET

PANEL - operator compartment, top, R.H.

1шт.

22

A18935

SHEET

PANEL - operator compartment, top, L.H.

1шт.

23

183-200

SCREW,1/4"-20 x 1/2"

- thumb, 1/4" x 1/2" N.C.

6шт.

24

A18826

BRACKET

SUPPORT - seat, R.H.

1шт.

25

A18827

BRACKET

SUPPORT - seat, L.H.

1шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

27

92-5

LOCK WASHER,5/16"

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

29

A17197

SHIM

- seat, Serial Range: support-frame

6шт.

A17211

SEAT

ASSEMBLY - operator, Includes: Ref. 30 - 38

1шт.

30

A18407

CUSHION ASSY.

CUSHION - seat

1шт.

31

A18408

BACKREST

CUSHION - back rest

1шт.

32

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

33

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

34

195-525

WASHER,3/8", SAE

- plain, 3/8" Z.P.

5шт.

35

L30533

VALVE SPRING

SPRING - adjusting

2шт.

36

L30534

X

PIN - cushion alignment

2шт.

37

92-5

LOCK WASHER,5/16"

4шт.

38

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

L50040

KIT

- seat belt, 3" webbing, Includes: Ref. 39 - 44

1шт.

39

L48907

BELT

SAFETY BELT

1шт.

40

D35424

LINING

TRIM - seat shell

1шт.

41

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

42

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

43

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

2шт.

44

DR10768

WASHER

- seat belt

2шт.
