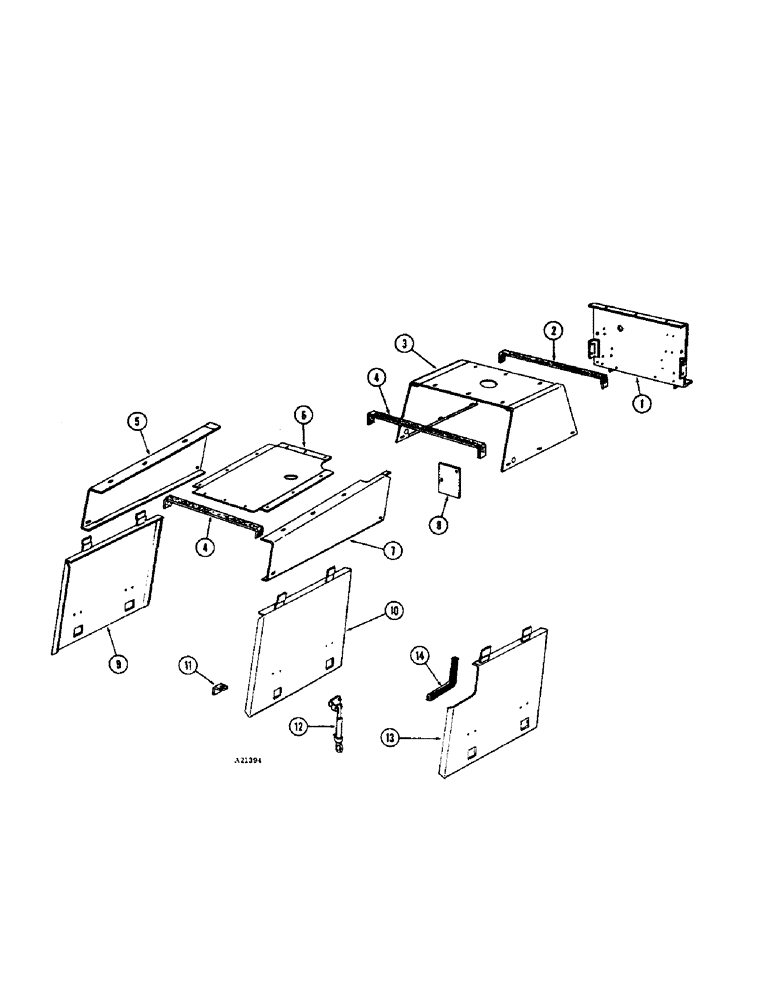

Запчасти Case W7E (136[1]) - HOOD AND ENGINE SIDE PANELS DIESEL ENG., HOOD & ENG. SIDE PANELS GAS ENG. (09) - CHASSIS

1

T41361

PLATE - mounting, fuel tank (Before S/N 9900001)

1шт.

1

T42522

PLATE - mounting, fuel tank (S/N 9900001 and after)

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

92-6

LOCK WASHER,3/8"

6шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

6шт.

2

A9091

MOULDING - hood edge

1шт.

3

L42227

HOOD - fuel tank, front

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/2" N.C. hex

2шт.

92-5

LOCK WASHER,5/16"

12шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

4

L11785

SHIM

PAD -, Serial Range: hood-chassis

2шт.

5

T41404

HOOD - rear, L.H.

1шт.

6

T41403

HOOD - rear, center

1шт.

7

T41420

HOOD - rear, R.H.

1шт.

8

T41382

PLATE - cover, hood opening (Used with oil bath air cleaner)

1шт.

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- machine, #12 x 5/8" rd. hd.

2шт.

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

2шт.

225-14112

NUT,#12-24

- #12 N.C. hex.

2шт.

9

T41434

PANEL ASSY.

SIDE PANEL - engine L.H.

1шт.

10

T41438

PANEL

SIDE PANEL - engine R.H.

1шт.

11

A14382

BRACKET - hold down panel

4шт.

12

A12514

LATCH

- side panel

4шт.

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- machine #12 x 5/8" N.C. rd. hd.

8шт.

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

8шт.

225-14112

NUT,#12-24

- #12 N.C.

8шт.

13

T41436

SIDE PANEL - engine R.H. (Used with oil bath air cleaner)

1шт.

14

A19989

MOLDING - hood side

1шт.
