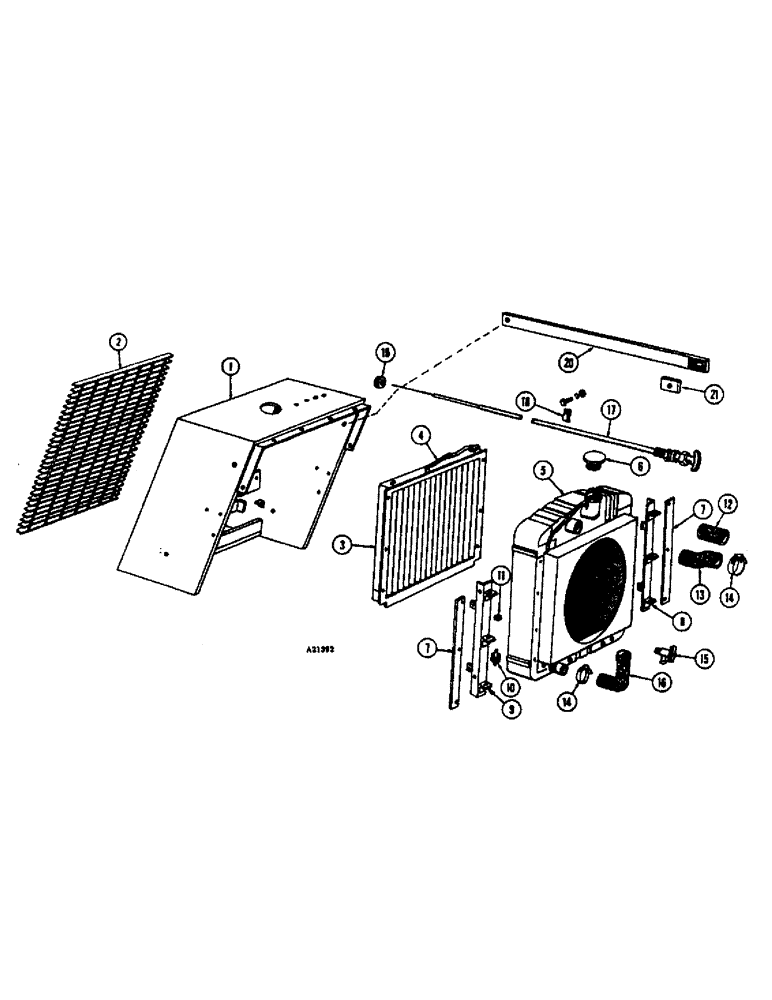

Запчасти Case W7E (134) - RADIATOR, GRILLE AND SHUTTER (09) - CHASSIS

1

L42226

HOUSING - radiator

1шт.

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

95-10

WASHER,5/8"

- plain, 5/8"

2шт.

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

T41381

GRILLE - radiator guard

1шт.

3

A17597

SHUTTER - radiator, Includes: Ref. 4

1шт.

4

A9909

SPRING - shutter

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

195-21

WASHER,5/16"

- plain, 5/16"

4шт.

92-5

LOCK WASHER,5/16"

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

5

L40586

RADIATOR

- cooling system

1шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex

4шт.

92-5

LOCK WASHER,5/16"

4шт.

6

A21389

CAP

- radiator (7 PSI)

1шт.

7

L42241

SPACER - mounting

2шт.

8

L42263

SUPPORT - radiator mounting R.H.

1шт.

9

L42262

SUPPORT - radiator mounting L.H.

1шт.

10

L11236

BOLT

BOLT - flexible mounting

6шт.

11

195-2020

WASHER,.344" x 1" x .065"

- special

12шт.

92-5

LOCK WASHER,5/16"

12шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

12шт.

12

L40545

RADIATOR HOSE,2.50" ID x 4.00", SAE 20R4 Class SC

Upper, Diesel 2.50" ID x 4.00", SAE 20R4 Class SC

1шт.

13

A17564

RADIATOR HOSE,2.50" ID x 6.00", SAE 20R4 CLASS SC

2.50" ID x 6.00 ", SAE 20R4, Upper - Gas

1шт.

14

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, upper and lower

2шт.

15

A23655

VALVE

- radiator drain

1шт.

16

L40596

RADIATOR HOSE,2.50" ID, 2.62" ID x 11.60", SAE 20R4 Class SC

Lower 2.50" ID, 2.62" ID x 11.60", SAE 20R4 Class SC

1шт.

17

A9251

CABLE - shutter control

1шт.

18

A26673

CLIP

- shutter cable

1шт.

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- machine, #10 x 5/8" N.C. rd. hd.

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

1шт.

19

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber, shutter cable

1шт.

20

T41380

BAR - tie radiator housing

2шт.

21

T41377

WASHER - serrated, tie bar

4шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

195-529

WASHER,7/16", SAE

- plain, 3/8" (Z.P.)

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
