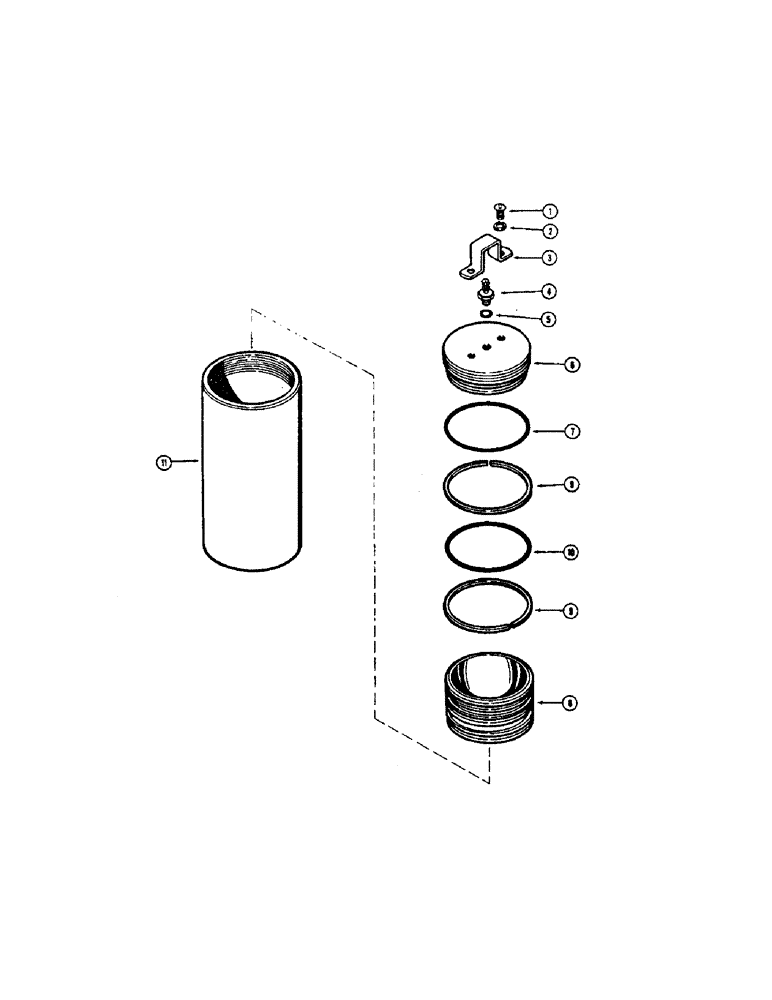

Запчасти Case W7E (240) - A18702 ACCUMULATOR, A13758 ACCUMULATOR VALVE (08) - HYDRAULICS

A18702

ACCUMULATOR - hydraulic, Includes: Ref. 1 - 11

1шт.

1

75-610

X

SCREW - machine, 3/8" x 5/8" N.C. rd. hd.

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

A14932

GUARD - gas valve

1шт.

4

A14931

VALVE - gas

1шт.

5

A14933

O-RING

"O" RING - seal, gas valve

1шт.

REF. 5 REPLACED BY 218-5004

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - end, accumulator

1шт.

7

A14934

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

"O" RING - seal, end cap

1шт.

REF. 7 REPLACED BY A27348

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - accumulator

1шт.

9

A14930

RING - piston, accumulator

2шт.

10

A14929

O-RING

"O" RING - seal, piston

1шт.

11

NSS

NOT SOLD SEPARAT

CYLINDER - accumulator

1шт.
