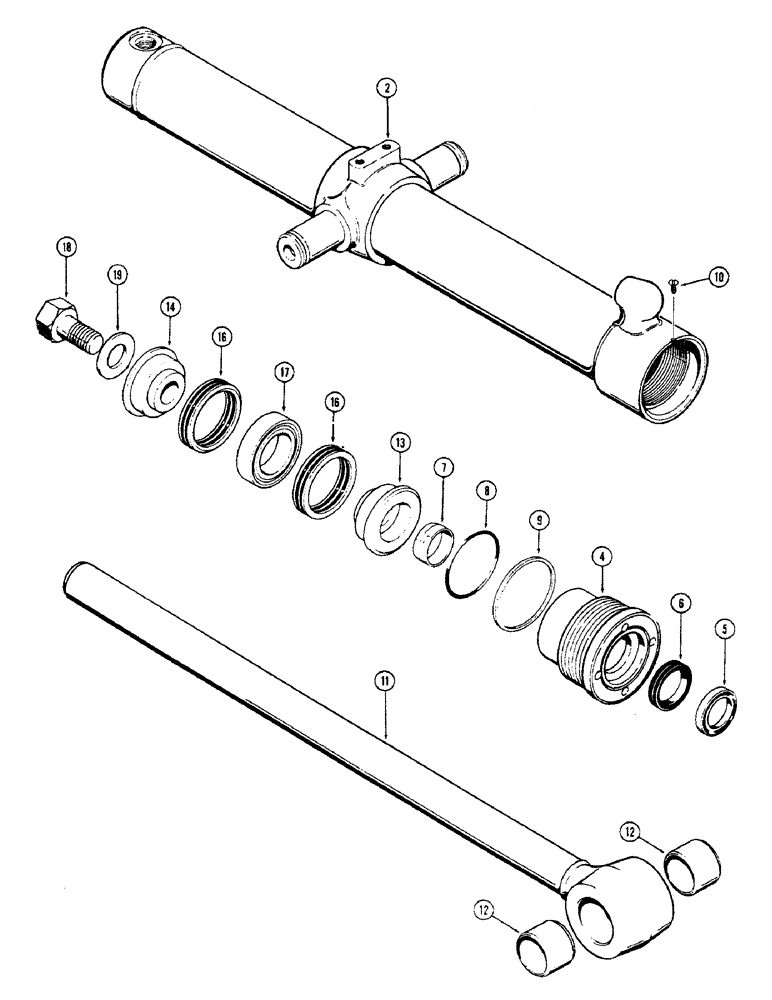

Запчасти Case W7E (234) - G33461 LOADER TILT CYLINDER, 3" CYLINDER WITH 25-3/4" STROKE W/ GLAND IDENTIFICATION RING (08) - HYDRAULICS

G33461

CYLINDER BLOCK

CYLINDER ASSY - tilt, Includes: Ref. 2 - 19

2шт.

2

G32006

TUBE,32.75" L

- cylinder body

1шт.

G33485

GLAND

ASSY - (W/identification ring), Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit cylinder repair G32292

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

Part of seal kit cylinder repair G32292

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of seal kit cylinder repair G32292

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit cylinder repair G32292

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit cylinder repair G32292

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33462

ROD

ASSY - piston (1-1/2" dia.), Includes: Ref. 12

1шт.

12

D34109

BUSHING

- piston rod

2шт.

13

G33150

PISTON

- split (Rod end)

1шт.

14

D28366

PISTON

- split (Bolt end)

1шт.

G33151

PACKING

ASSY - piston, Includes: Ref. 16 and 17

1шт.

Part of seal kit cylinder repair G32292

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSY - ("V" type)

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston ret. (3/4 x 2-1/2" N.F. hex.)

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- ret. bolt (7/8 x 1-3/8 x 9/64")

1шт.

G32292

KIT

SEAL KIT - cylinder repair, Incl. Refs. 5, 6, 7, 8, 9 and G33151

1шт.
