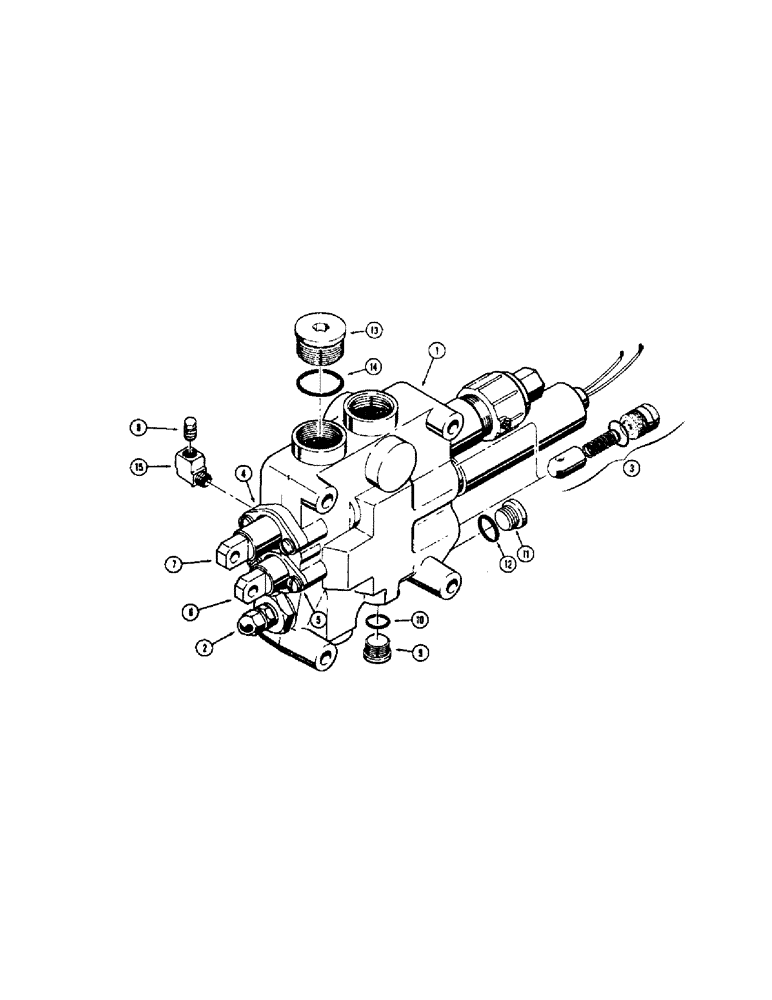

Запчасти Case W7E (218) - L17845 LOADER CONTROL VALVE - 2 SPOOL, DIESEL MODELS ONLY (08) - HYDRAULICS

L17845

VALVE

- loader control, 2 spool, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list figure 228)

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list figure 228)

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool (Parts list figure 220)

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool (Parts list figure 222)

1шт.

6

L32387

SPOOL

- loader tilt (Parts list figure 222)

1шт.

6

L32388

SPOOL

- loader tilt (Parts list figure 222)

1шт.

6

L32389

SPOOL

- loader tilt (Parts list figure 222)

1шт.

6

L32390

SPOOL

- loader tilt (Parts list figure 222)

1шт.

7

L32375

SPOOL

- loader lift (Parts list figure 220)

1шт.

7

L32376

SPOOL

- loader lift (Parts list figure 220)

1шт.

7

L32377

SPOOL

- loader lift (Parts list figure 220)

1шт.

7

L32378

SPOOL

- loader lift (Parts list figure 220)

1шт.

8

L30683

X

PLUG - pipe, special

1шт.

9

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 10 Hex Soc, 3/4"-16 ORB

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - seal

1шт.

11

86625138

PLUG,7/18" - 14

Includes Ref. 12 Hex Soc, 7/8"-14 ORB

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal

1шт.

13

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex, socket head, Includes: Ref. 14

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - seal

1шт.

15

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- pressure check

1шт.
