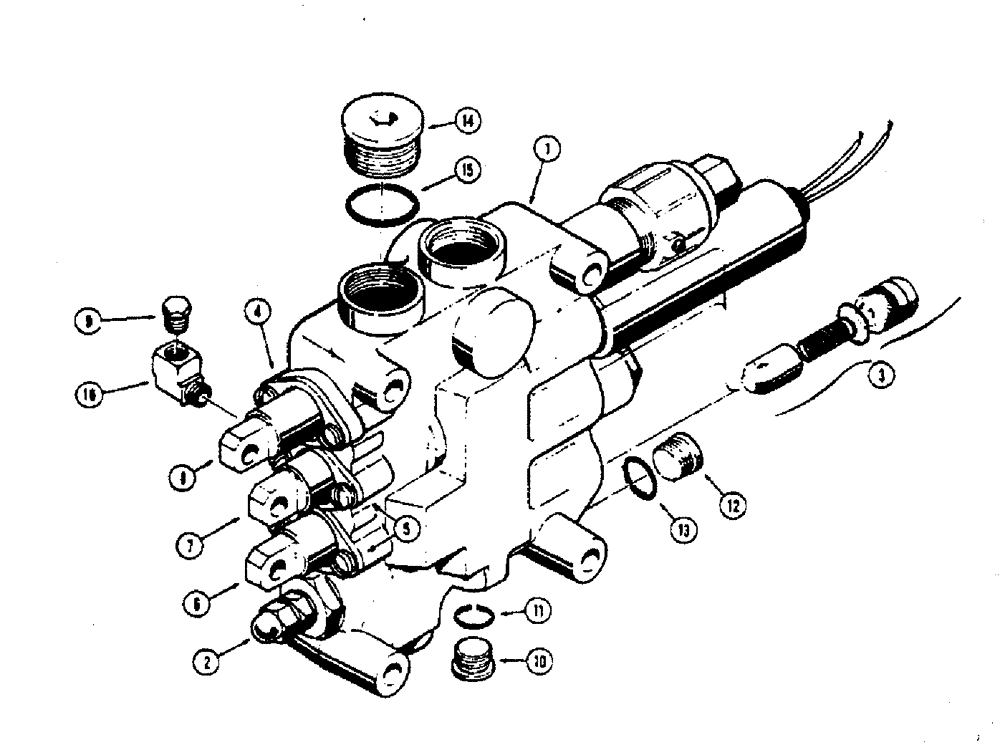

Запчасти Case W7E (218[1]) - L17844 LOADER CONTROL VALVE - 3 SPOOL DIESEL MODELS ONLY (08) - HYDRAULICS

L17844

VALVE

VALVE - loader control, 3 spool, Includes: Ref. 1 - 15

1шт.

1

(NSS)

BODY - control valve

1шт.

2

(NSS)

VALVE - main relief (Parts list figure 228)

1шт.

3

NSS)

VALVE - check (Parts list figure 228)

1шт.

4

(NSS)

SEAL ASSEMBLY - lift spool (parts list figure 220)

1шт.

5

(NSS)

SEAL ASSEMBLY - tilt and clam spools (Parts list figure 226)

2шт.

6

(L32364)

SPOOL - Drott clam (Parts list figure 226)

1шт.

6

(L32365)

SPOOL - Drott clam (Parts list figure 226)

1шт.

6

(L32366)

SPOOL - Drott clam (Parts list figure 226)

1шт.

6

(L32367)

SPOOL - Drott clam (Parts list figure 226)

1шт.

7

(L32387)

SPOOL - loader tilt (Parts list figure 224)

1шт.

7

(L32388)

SPOOL - loader tilt (Parts list figure 224)

1шт.

7

(L32389)

SPOOL - loader tilt (Parts list figure 224)

1шт.

7

(L32390)

SPOOL - loader tilt (Parts list figure 224)

1шт.

8

(L32375)

SPOOL - loader lift (Part list figure 220)

1шт.

8

(L32376)

SPOOL - loader lift (Parts list figure 220)

1шт.

8

(L32377)

SPOOL - loader lift (Parts list figure 220)

1шт.

8

(L32378)

SPOOL - loader lift (Parts list figure 220)

1шт.

9

(L30683)

PLUG - pipe, special

1шт.

10

(L218-5210)

PLUG - hex, socket head, Includes: Ref. 11

1шт.

11

(218-5006)

"O" RING - seal

1шт.

12

(218-5211)

PLUG - hex, socket head, Includes: Ref. 13

1шт.

13

(237-6010)

"O" RING - seal

1шт.

14

(218-5212)

PLUG - hex, socket head, Includes: Ref. 15

1шт.

15

(218-5011)

"O" RING - seal

1шт.

16

(217-21)

ELBOW - pressure check

1шт.
