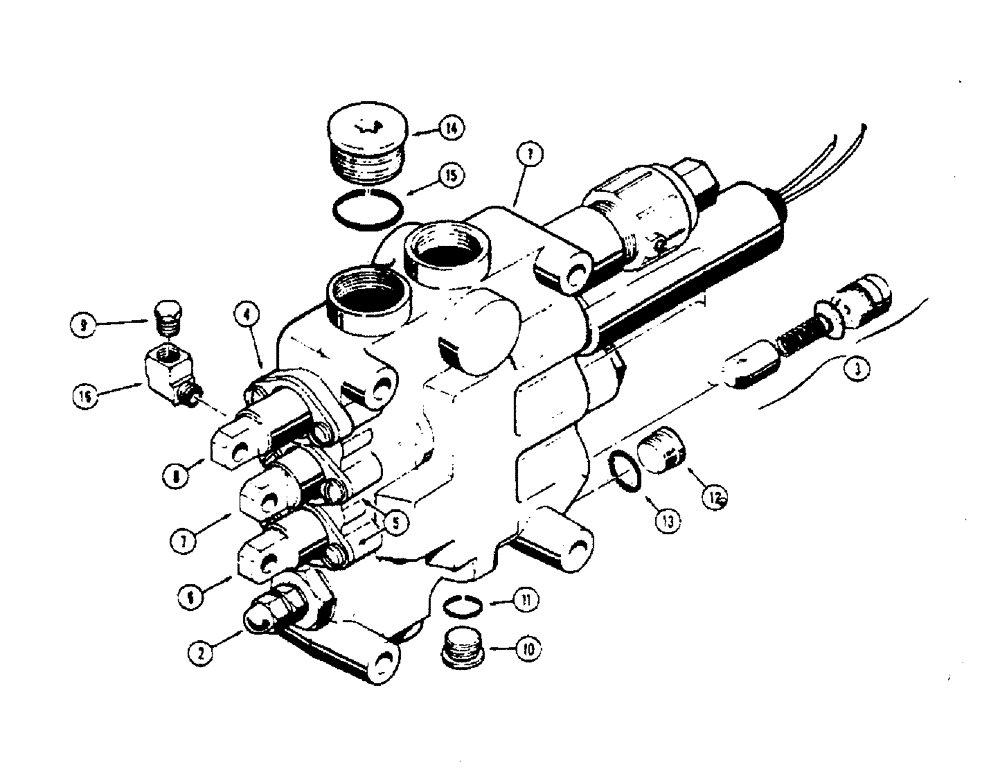

Запчасти Case W7E (216[1]) - L17479 LOADER CONTROL VALVE - 3 SPOOL GAS MODELS ONLY (08) - HYDRAULICS

L17479

VALVE

VALVE - loader control, 3 spool, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main releif (Parts list figure 228)

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check (Part list figure 228)

3шт.

4

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool (Parts list figure 220)

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt and clam spools (Parts list figures 222 and 226)

2шт.

6

L32364

SPARE PART Drott clam (Parts list figure 226)

1шт.

6

L32365

SPOOL - Drott clam (Parts list figure 226)

1шт.

6

L32366

SPOOL - Drott clam (Parts list figure 226)

1шт.

6

L32367

SPOOL - Drott clam (Parts list figure 226)

1шт.

7

L32368

PISTON

SPOOL - loader tilt (Parts list figure 222)

1шт.

7

L32369

SPARE PART Loader tilt (Parts list figure 222)

1шт.

7

L32370

SPOOL - loader tilt (Parts list figure 222)

1шт.

7

L32371

SPOOL - loader tilt (Parts list figure 222)

1шт.

8

L32375

SPOOL

Loader lift (Parts list figure 20)

1шт.

8

L32376

SPOOL

Loader lift (Parts list figure 220)

1шт.

8

L32377

SPOOL

Loader lift (Parts list figure 220)

1шт.

8

L32378

SPOOL

Loader lift (Parts list figure 220)

1шт.

9

L30683

X

PLUG - pipe, special

1шт.

10

218-5210

PLUG,Hex, 3/4"-16 ORB

Includes Ref. 11

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal

1шт.

12

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Includes Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Seal

1шт.

14

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

Includes: Ref. 15

1шт.

15

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Seal

1шт.

16

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

Pressure check

1шт.
