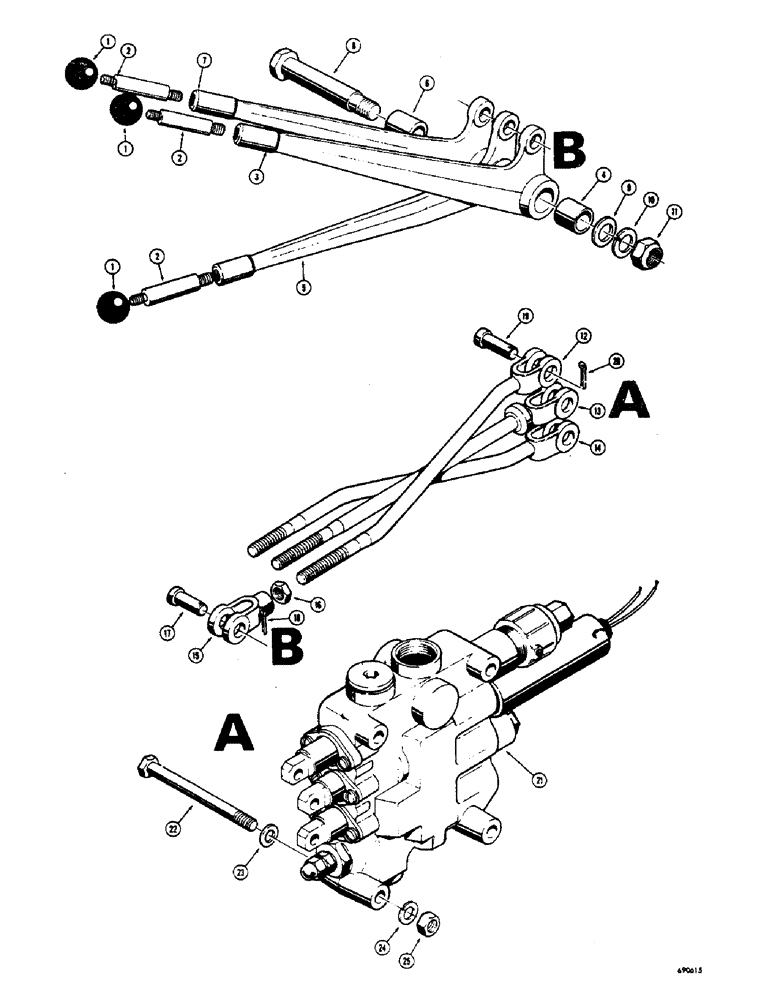

Запчасти Case W7E (214) - LOADER CONTROL VALVE AND LEVERS, 3 SPOOL VALVE (08) - HYDRAULICS

1

A19416

BALL

- control lever

3шт.

2

A18936

EXTENSION

- control lever

3шт.

3

A18470

LEVER

- lift control (Outer), Includes: Ref. 4

1шт.

4

L10083

BUSHING

- lever

1шт.

5

A17453

LEVER

- tilt control (Center), Includes: Ref. 6

1шт.

6

L10083

BUSHING

- lever

1шт.

7

A16943

LEVER - clam control (Inner)

1шт.

8

A18472

PIN - pivot, control lever

1шт.

9

A26462

WASHER

- pivot pin

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

12

A17457

ROD

- connecting, lift, Serial Range: lever-valve

1шт.

13

L16632

ROD - connecting, tilt, Serial Range: lever-valve

1шт.

14

A18473

ROD

- connecting, clam, Serial Range: lever-valve

1шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - lever to rod

3шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex, jam

3шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

3шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

19

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

3шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

3шт.

21

L17479

VALVE

- hydraulic, loader control (3 spool) Parts list figure 216 (1)- gas only

1шт.

21

L17844

VALVE

- hydraulic, loader control (3 spool) Parts list figure 218 (1)- diesel only

1шт.

22

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

23

195-33

WASHER,1/2"

- plain, 1/2"

3шт.

24

92-8

LOCK WASHER,1/2"

3шт.

25

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.
