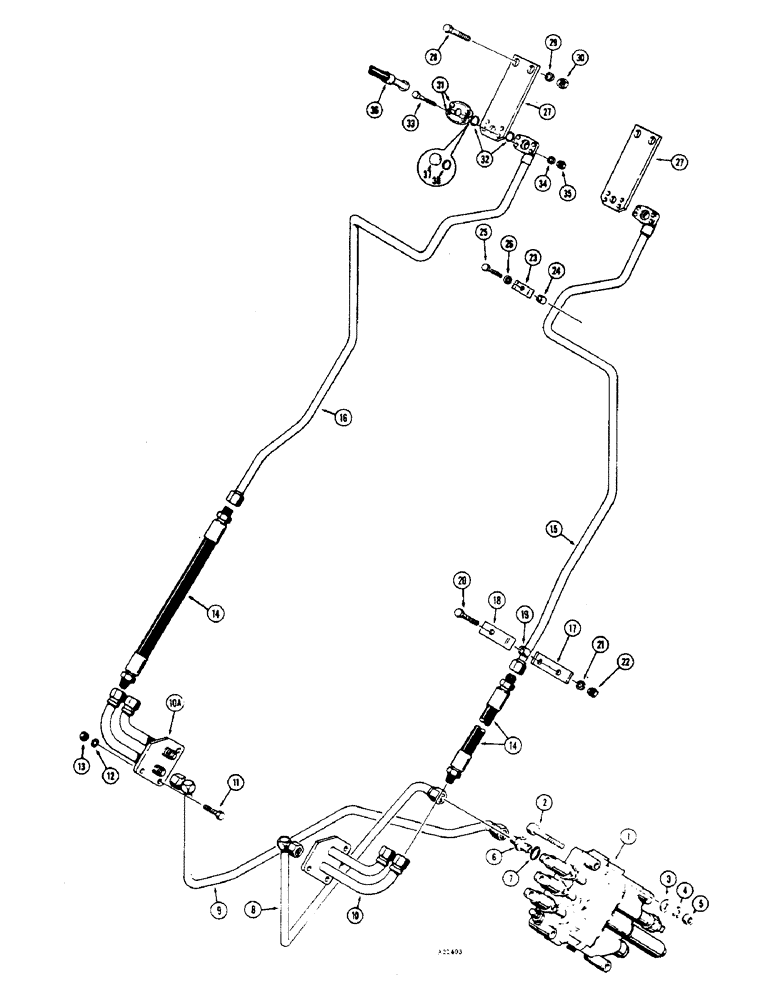

Запчасти Case W7E (210) - DROTT 4-IN-1 BUCKET HYDRAULICS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
L17479
VALVE
- hydraulic, loader control (3 spool) (Parts list figure 216)
1шт.
2
13-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
3шт.
3
195-33
WASHER,1/2"
- plain, 1/2"
3шт.
4
92-8
LOCK WASHER,1/2"
3шт.
5
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex.
3шт.
6
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR - male, straight, Incl. Ref. 7
2шт.
7
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
"O" RING - seal
1шт.
8
A18478
TUBE - valve to side plate, R.H.
1шт.
9
A18479
TUBE - valve to side plate, L.H.
1шт.
10
T41900
PIPE CLAMP
PIPE - hydraulic, junction, R.H.
1шт.
10a
T41917
HYD TUBE
PIPE - hydraulic, junction, L.H.
1шт.
11
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
6шт.
12
92-8
LOCK WASHER,1/2"
6шт.
13
25-148
JAM NUT,Jam, 1/2"-13, G5
- 1/2" NC hex
6шт.
14
A17639
HOSE
- connector to intermediate tube (24-1/2" long)
2шт.
15
L18677
TUBE - intermediate, valve to clam cylinder R.H. 1" OD
1шт.
16
L18678
TUBE - intermediate, valve to clam cylinder L.H. 1" OD
1шт.
17
L18972
BRACKET - mounting, clamp
2шт.
18
A16956
CLAMP - tube
2шт.
19
A16957
SPACER - clamp
2шт.
20
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
21
92-6
LOCK WASHER,3/8"
2шт.
22
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
2шт.
23
31665
COLLAR CLAMP
CLAMP - tube
2шт.
24
D36524
BUSHING
SPACER - clamp
2шт.
25
13-526
BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5
2шт.
26
92-5
LOCK WASHER,5/16"
2шт.
27
L18679
BRACKET - tube mounting
2шт.
28
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
29
92-8
LOCK WASHER,1/2"
4шт.
30
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex.
4шт.
31
A16961
FLANGE
- split, Serial Range: hose-bracket
4шт.
33
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
8шт.
34
92-6
LOCK WASHER,3/8"
8шт.
35
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
8шт.
37
A18342
PLUG
- cylinder tube (Used when Drott bucket is removed)
2шт.
Выбрано товаров: 39
