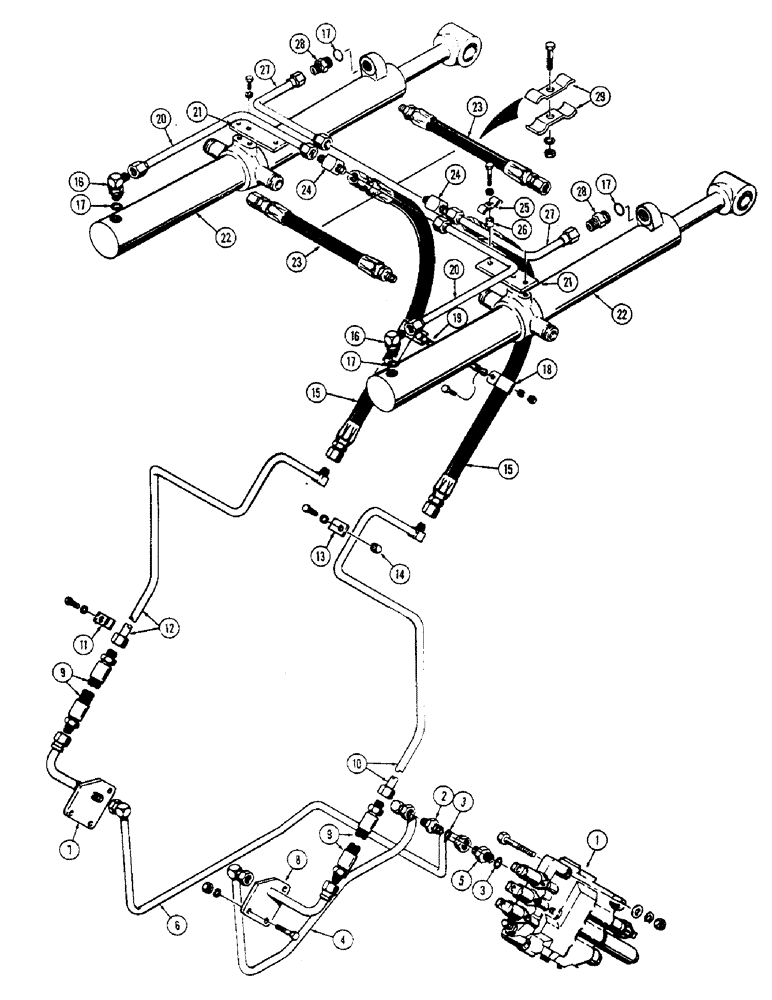

Запчасти Case W7E (208) - LOADER HYDRAULICS, TILT CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figures 216 and 218 for proper valve)

1шт.

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

195-33

WASHER,1/2"

3шт.

92-8

LOCK WASHER,1/2"

3шт.

25-108

NUT,1/2"-13, G5

3шт.

2

218-5409

CONNECTOR, ELEC

CONNECTOR Male, straight, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

4

A17640

TUBE

Valve to connector, RH

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, straight, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

6

A17641

TUBE

Valve to connector, LH

1шт.

7

T41916

HYD TUBE

PIPE - hydraulic, junction LH

1шт.

8

T41905

TUBE

PIPE - hydraulic, junction RH

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

92-8

LOCK WASHER,1/2"

6шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

6шт.

9

A17639

HOSE

SPARE PART Connector to intermediate tube (24-1/2" long)

2шт.

10

L18675

PIPE,1" OD

TUBE - valve to tilt cylinder, rod end (RH intermediate)

1шт.

11

A12308

CLAMP

Tube to lift arm

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

12

L18676

SPARE PART Valve to cylinder, closed end (LH intermediate)

1шт.

13

L18974

SPARE PART Tube to lift arm

2шт.

14

D36524

BUSHING

SPACER - clamp

2шт.

13-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

15

L17323

HOSE

Intermediate tube to tee (36-1/2" long)

2шт.

16

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Seal

1шт.

18

A17647

CLAMP

Hose, tilt cylinder

2шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

19

A17649

CHAIN

Tie, hose

1шт.

20

T41358

TUBE,0.75" OD x 11.25, 6" L

Tilt cylinder, closed end

2шт.

21

L18649

PLATE ASSY.

Mounting, clamp

2шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

22

G32482

CYLINDER

Hydraulic loader tilt (Parts list p. 234)

2шт.

23

L17320

HYDRAULIC HOSE,0.63" ID x 20.00", SAE 100R2

Crossover, Tilt Cylinder

2шт.

24

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

Tube to crossover hose

2шт.

25

70724

SPARE PART Tube

2шт.

26

D36040

BUSHING

SPACER - clamp

2шт.

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

27

T41357

TUBE,0.75" OD x 13.5, 6" L

Hydraulic tilt cylinder

2шт.

28

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Male, straight, Incl. Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Seal

1шт.

29

A12332

CLAMP

Crossover hose

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

192-21

LOCK WASHER,3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.
