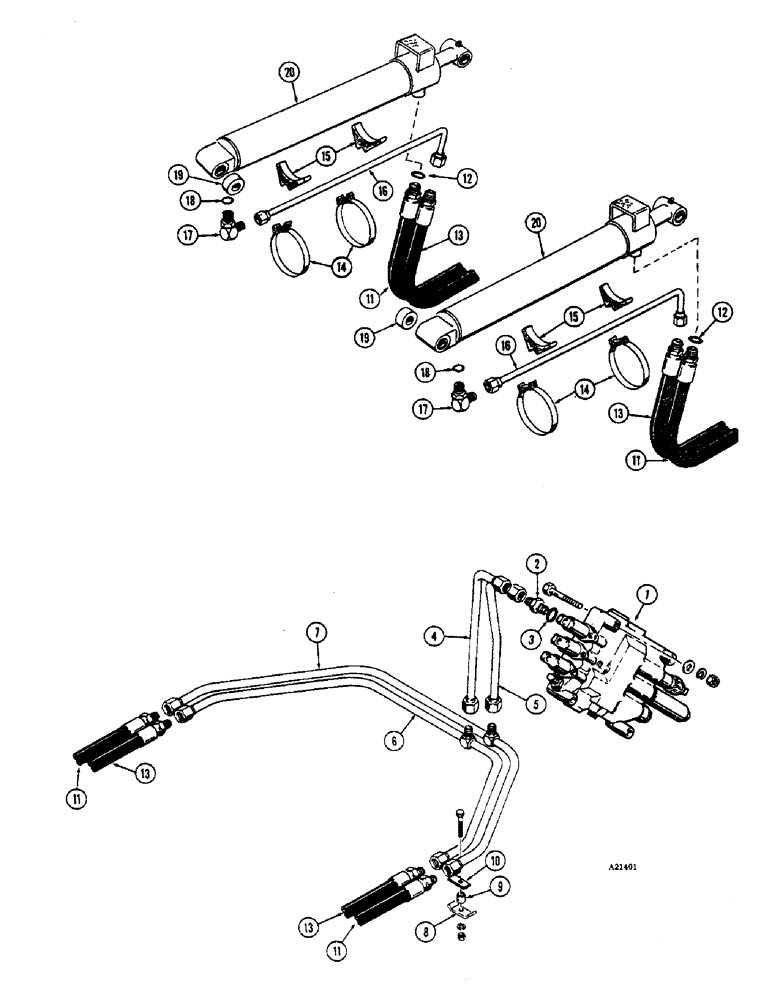

Запчасти Case W7E (206) - LOADER HYDRAULICS, LIFT CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figures 216 and 218 for proper valve)

1шт.

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

195-33

WASHER,1/2"

3шт.

92-8

LOCK WASHER,1/2"

3шт.

25-108

NUT,1/2"-13, G5

3шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

4

A17630

TUBE

Valve to inner manifold

1шт.

5

A17631

SPARE PART Valve to outer manifold

1шт.

6

A17624

TUBE

Manifold, lift cylinder, inner

1шт.

7

A17625

TUBE

Manfold, lift cylinder, outer

1шт.

8

A14078

CLAMP

Tube

2шт.

9

B18083

BUSHING

SPACER - tube

2шт.

10

A17648

SPARE PART PLATE - clamp mounting

2шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

2шт.

11

T41363

HOSE ASSY.

Manifold to lift cylinder (27-1/2" long), Incl. Ref. 12

2шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

13

T41362

HYDRAULIC HOSE,0.63" ID x 27.50", SAE 100R2

Manifold tube to lift cylinder

2шт.

14

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Cylinder and tube

4шт.

15

D38648

BLOCK

SADDLE - rubber, cylinder and tube

4шт.

16

T41364

TUBE,0.75" OD x 34.5, 3.5" L

Hydraulic, cylinder port, rear

2шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Tube and cylinder port, Incl. Ref. 18

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

19

T41365

SPACER

Rear lift cylinder

2шт.

20

G32016

SPARE PART Hydraulic, loader lift (Parts list figure 232)

2шт.
