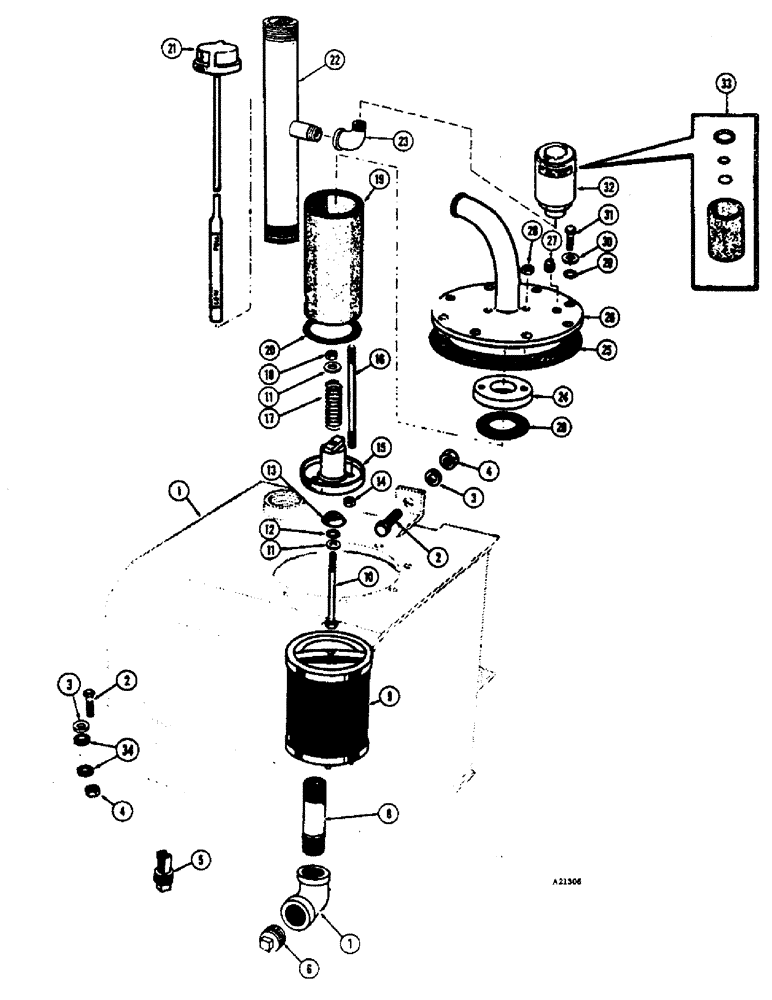

Запчасти Case W7E (148) - HYDRAULIC TANK (08) - HYDRAULICS

1

A17404

TANK

- hydraulic oil

1шт.

2

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex

3шт.

3

195-22

WASHER

- plain, 5/16"

6шт.

4

131-4

LOCK NUT,5/16"-18, GB

LOCKNUT - 5/16" N.C. hex.

3шт.

5

A17429

PLUG

- drain, magnetic

1шт.

6

221-1526

PIPE CLAMP,3/4" NPT

PLUG - pipe, 3/4" square hd. NPT

1шт.

7

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degrees - 3/4" NPT

1шт.

8

221-1219

FITTING,Nipple, 3/4" NPT x 4"

NIPPLE - pipe, straight 3/4" NPT

1шт.

9

A17413

FILTER

- outlet

1шт.

10

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

BOLT - 1/4" x 5" N.C. hex.

1шт.

11

195-18

WASHER,1/4"

- plain, 1/4"

2шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - seal, relief cover

1шт.

13

A17426

COVER ASSY

COVER - filter relief

1шт.

14

131-506

NUT,1/4-20

LOCKNUT - 1/4" N.C. hex.

1шт.

15

A17419

CYLINDER END CAP

CAP - filter to cover, lower

1шт.

16

A17424

STUD

- retaining, Serial Range: filter-cover

2шт.

17

A30709

VALVE SPRING

SPRING - relief, filter element

1шт.

18

131-506

NUT,1/4-20

LOCKNUT - 1/4" N.C. hex.

1шт.

A33487

KIT

ELEMENT KIT - filter, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

20

A17425

GASKET

2шт.

21

T41340

CYLINDER END CAP

CAP - filler, dipstick

1шт.

22

T41337

TUBE

PIPE - filler, oil tank

1шт.

23

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2"

1шт.

24

A17420

CYLINDER END CAP

CAP - filter to cover, upper

1шт.

25

A17427

GASKET

- filter cover

1шт.

26

A17416

COVER

- filter, return

1шт.

27

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" square head

1шт.

28

25-104

NUT,1/4"-20, G5

2шт.

29

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - seal, bolt to cover

8шт.

30

195-25

WASHER,3/8"

- plain, 3/8"

8шт.

31

A16900

BOLT - filter cover to tank (When stock is exhausted, order 13-622 bolt)

8шт.

31

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8" (Filter cover to tank)

8шт.

32

A56518

VALVE

- pressure relief, Includes: Ref. 33

1шт.

33

L30196

KIT

- repair, relief valve

1шт.

34

A30172

WASHER - rubber, hydraulic tank

6шт.
