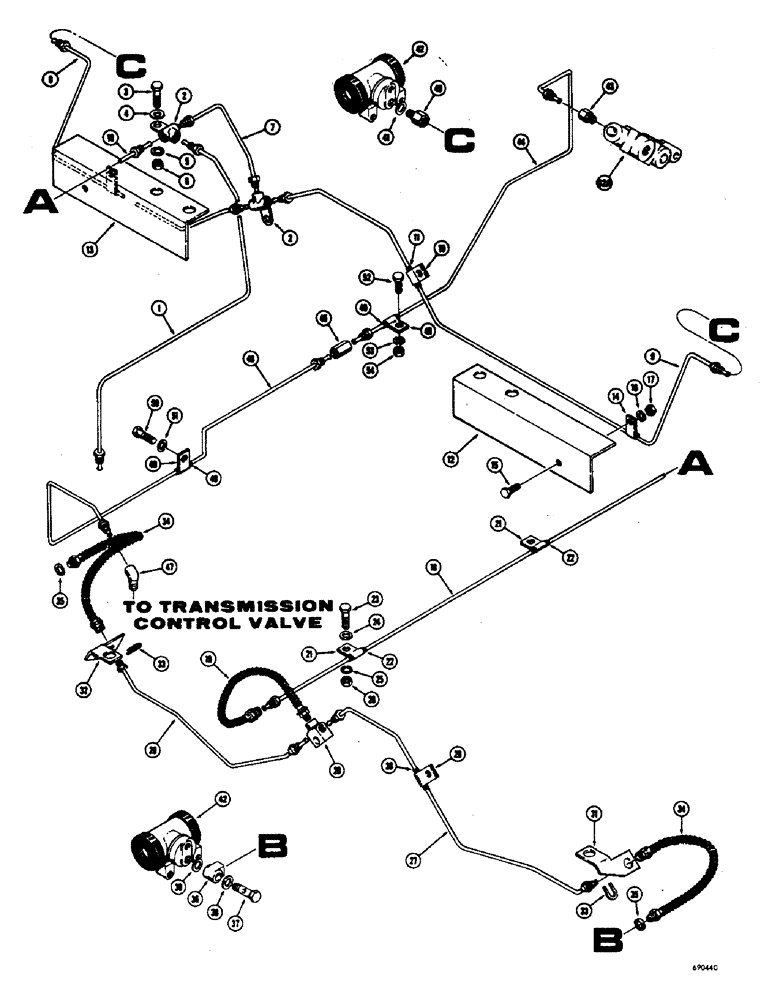

Запчасти Case W7E (116) - HYDROVAC BRAKE SYSTEM, HYDRAULIC BRAKE LINES AND BRAKE CYLINDERS (07) - BRAKES

1

A19324

TUBE

- hydrovac to brake line tee

1шт.

2

A12452

FITTING

TEE - hydrovac tube to front and rear brake tubes

2шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

4

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

7

A17396

TUBE

- hydrovac tee to front axle tee

1шт.

8

A17393

TUBE

- front tee to L.H. brake cylinder

1шт.

9

A17392

TUBE

- front tee to R.H. brake cylinder

1шт.

10

A12453

CLAMP - R.H. cylinder, Serial Range: tube-axle

1шт.

11

A12458

SLEEVE

LOOM - clamp to brake tube

1шт.

12

A17390

SUPPORT

BRACKET - tube clamp, R.H.

1шт.

13

A17391

SUPPORT

BRACKET - tube clamp, L.H.

1шт.

14

A20541

CLIP

CLAMP - tube, front brake

2шт.

15

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

18

A17397

TUBE

- tee to rear brake tubes

1шт.

19

A56478

HYDRAULIC HOSE

HOSE - tube to rear tube tee, 16-7/8" long

1шт.

20

A13100

TEE

- rear brake tube

1шт.

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

1шт.

92-7

LOCK WASHER,7/16"

1шт.

21

A12453

CLAMP -, Serial Range: tube-frame

2шт.

22

A12458

SLEEVE

LOOM -, Serial Range: clamp-tube

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

24

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

27

A17394

TUBE

- tee to R.H. rear brake cylinder

1шт.

28

A17395

TUBE

- tee to L.H. rear brake cylinder

1шт.

29

A12454

CLIP

CLAMP - R.H. rear brake tube

1шт.

30

A12458

SLEEVE

LOOM -, Serial Range: clamp-tube

1шт.

31

A17388

SUPPORT

BRACKET - hose mounting, R.H.

1шт.

32

A17389

SUPPORT

BRACKET - hose mounting, L.H.

1шт.

33

A12628

WASHER

LOCK - brake, Serial Range: hose-bracket

2шт.

34

A56478

HYDRAULIC HOSE

HOSE - tube to brake cylinder, 16-7/8" long

2шт.

35

A12643

WASHER

- brake hose to fitting (If used)

2шт.

36

A18274

FITTING

- swivel, hose to cylinder (Rear cylinder only)

2шт.

37

A12864

BOLT

- swivel, Serial Range: fitting-cylinder

2шт.

38

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet fitting, Serial Range: (Bolt-fitting)

2шт.

39

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet fitting, Serial Range: (Swivel-cylinder)

2шт.

40

A18273

FITTING

- straight, tube to cyl. (Front cylinder only)

2шт.

41

A12988

GASKET

- inlet fitting (At cylinder)

2шт.

42

A12985

CYLINDER

- brake, wheel (Parts list figure 124)

4шт.

42a

A18891

LOCK VALVE

VALVE - clutch control (Parts list figure 132)

1шт.

43

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - tube to valve

1шт.

44

A19126

TUBE

- clutch control valve to transmission control valve (Upper)

1шт.

45

222-1053

HYD CONNECTOR,1/4" Inv Fl

UNION - tube, 1/4"

1шт.

46

A17398

TUBE

- transmission control valve (Lower)

1шт.

47

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- tube to transmission control valve

1шт.

48

A7922

CLIP

CLAMP -, Serial Range: tube-frame

2шт.

49

A12458

SLEEVE

LOOM -, Serial Range: clamp-tube

2шт.

50

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

51

92-6

LOCK WASHER,3/8"

1шт.

52

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

53

92-5

LOCK WASHER,5/16"

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.
