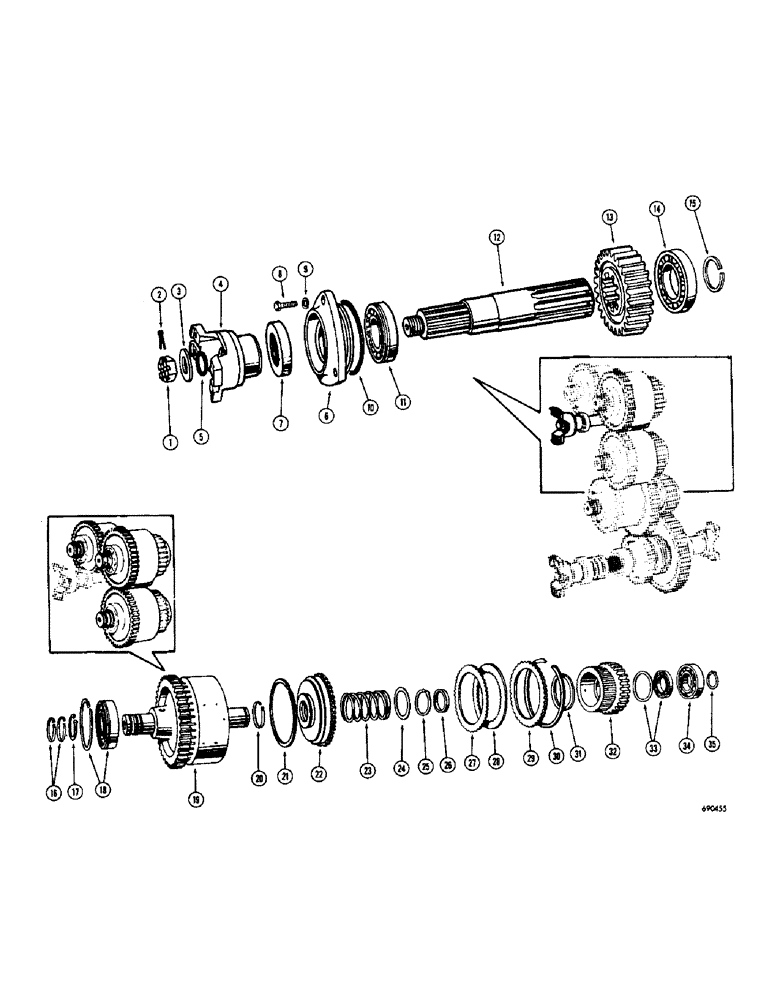

Запчасти Case W7 (206) - TRANSMISSION, TRANSMISSION INPUT SHAFT, TRANSMISSION FORWARD, REVERSE & LOW GEAR CLUTCHES (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - complete (See figure 204), Includes: Ref. 1 - 35

1шт.

1

A17926

FLANGE NUT

- flange, input shaft

1шт.

3

A17938

WASHER

- flange nut

1шт.

2

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

4

A17939

FLANGE

- input shaft

1шт.

5

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, input flange

1шт.

L30043

CAP

ASSEMBLY - bearing, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

7

L30014

OIL SEAL

OIL SEAL - bearing cap

1шт.

8

13-718

SCREW,Hex, 7/16" - 14 x 1 1/8", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/8", G5, Full Thd

3шт.

9

92-7

LOCK WASHER,7/16"

3шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, bearing cap

1шт.

11

A17935

BALL BEARING

- shaft support

1шт.

12

A17927

SHAFT

- input

1шт.

13

A17906

GEAR

- input shaft

1шт.

14

A17912

BALL BEARING,1.5748" ID x 3.5433" OD x 0.9055"

- rear input shaft

1шт.

15

A17903

SNAP RING,#156, Ext

RING - snap, , rear bearing #156, Ext

1шт.

16

A17925

SPRING

RING - sealing, clutch shaft end, transmission forward, reverse and low gear clutches

6шт.

17

A17903

SNAP RING,#156, Ext

RING - snap, , bearing, transmission forward, reverse and low gear clutches #156, Ext

3шт.

18

A17929

BEARING ASSY

BEARING AND RING ASSEMBLY - front clutch shaft, transmission forward, reverse and low gear clutches

3шт.

19

A17911

GEAR

DRUM AND GEAR - clutch, forward - reverse and low, transmission forward, reverse and low gear clutches

3шт.

20

A17901

SEAL

RING - inner sealing, clutch piston, transmission forward, reverse and low gear clutches

3шт.

21

A17908

RING

- outer sealing, clutch piston, transmission forward, reverse and low gear clutches

3шт.

22

A17907

PISTON

- clutch, transmission forward, reverse and low gear clutches

3шт.

23

A17917

VALVE SPRING

SPRING - return, piston, transmission forward, reverse and low gear clutches

3шт.

24

A17915

WASHER

- retainer, return spring, transmission forward, reverse and low gear clutches

3шт.

25

A17914

RING

- retainer, return spring, transmission forward, reverse and low gear clutches

3шт.

26

A17913

SPACER

- rear bearing, transmission forward, reverse and low gear clutches

3шт.

27

A17921

DISC

PLATE - clutch, outer tooth, transmission forward, reverse and low gear clutches

15шт.

28

A17920

DISC

PLATE - clutch, inner tooth, transmission forward, reverse and low gear clutches

18шт.

29

A17919

PLATE

- backing, clutch, transmission forward, reverse and low gear clutches

3шт.

30

A17918

RING

- snap, backing plate, transmission forward, reverse and low gear clutches

3шт.

31

A17900

RING,#325, 3.450", Int, Spiral

- oil baffle, clutch plate hub, transmission forward, reverse and low gear clutches

3шт.

32

A17916

GEAR

HUB GEAR - clutch plate, transmission forward, reverse and low gear clutches

3шт.

33

A17910

BALL BEARING,1.5743 mm ID x 2.6772 mm OD x 0.5906 mm

BEARING AND RING ASSEMBLY - clutch plate hub, transmission forward, reverse and low gear clutches

3шт.

34

A17912

BALL BEARING,1.5748" ID x 3.5433" OD x 0.9055"

BEARING - rear, clutch shaft, transmission forward, reverse and low gear clutches

3шт.

35

A17903

SNAP RING,#156, Ext

RING - snap, , bearing, transmission forward, reverse and low gear clutches #156, Ext

3шт.
