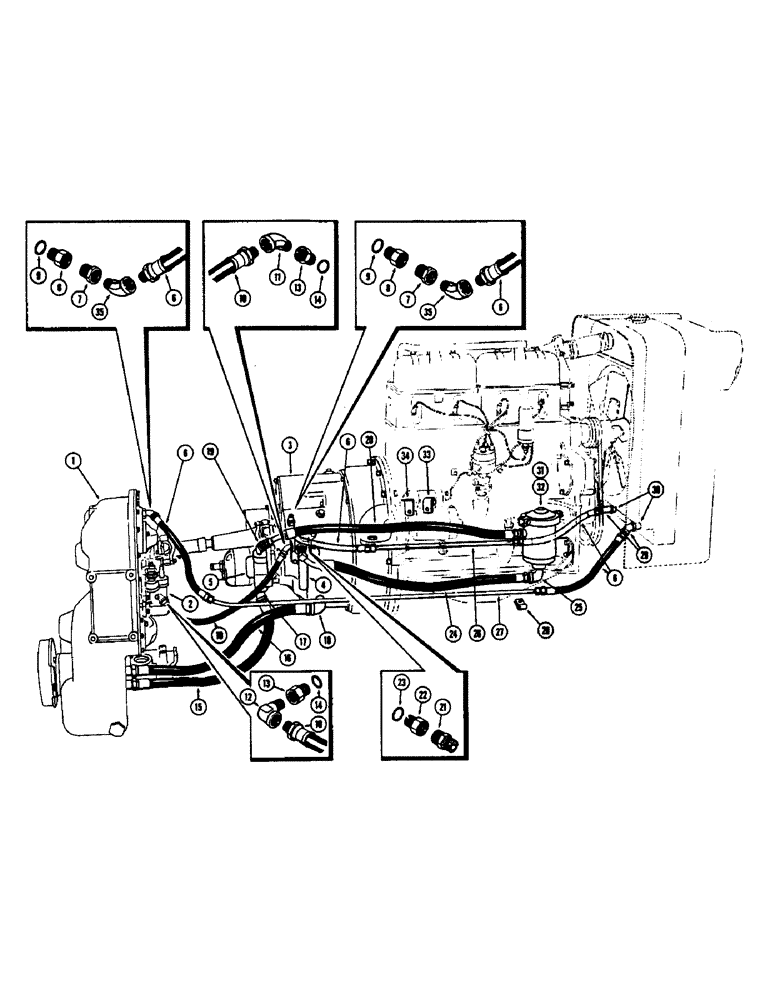

Запчасти Case W7 (200) - TRANSM & TORQUE CONVRTR, HYD SYS, PRIOR TO TRANS SN 84857E, PRIOR TO TORQUE CONVRTR SN 84700E (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - complete (See figure 204), Includes: Ref. 2

1шт.

2

L30040

VALVE ASSEMBLY - transmission control (See parts list figure 212)

1шт.

3

REF

INSTRUCTION

CONVERTER ASSEMBLY - complete (See figure 214), Includes: Ref. 4 and 5

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - converter pressure regulating (See figure 220 for proper valve)

1шт.

5

A17373

PUMP

ASSEMBLY - converter charging (See parts list figure 218)

1шт.

6

A12495

HOSE

- oil cooler tube, transmission and converter to tube and, Serial Range: radiator-tubes

4шт.

7

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer (3/4" - 1/2" NPT)

2шт.

8

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - straight (Use with A12495 hose on transmission serial no. 84857E and after, and converter serial no. 84700E and after), Includes: Ref. 9

2шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

10

A17314

HOSE

- oil, converter valve to transmission valve (28-1/4" long)

1шт.

11

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degrees (3/8" NPT)

1шт.

12

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 90 degrees (3/8" NPT)

1шт.

13

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

CONNECTOR - straight (Use with A17314 hose on transmission serial no. 84857E and after, and converter serial no. 84700E and after), Includes: Ref. 14

2шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

15

A17315

HOSE

- suction, converter, Serial Range: pump-transmission

1шт.

16

A17316

HOSE

- drain, Serial Range: converter-transmission

1шт.

17

221-1406

ELBOW

- street, 45 degrees (1" NPT) Suction hose to converter pump

1шт.

18

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degrees (1" NPT) Drain hose to converter

1шт.

19

A19599

ADAPTER

- special

1шт.

20

L15035

HOSE ASSY.

HOSE - oil, converter pump to filter (41" long)

1шт.

21

A19599

ADAPTER

- special

1шт.

22

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

CONNECTOR - straight (Use with A19599 adapter on transmission serial no. 84857E and after, and converter serial no. 84700E and after), Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

L15036

HOSE ASSY.

HOSE - oil, filter to converter valve (36 - 5/16" long)

1шт.

25

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- street, 90 degrees (3/4" NPT)

1шт.

26

A17484

TUBE - oil cooling, R.H.

1шт.

27

A17485

TUBE - oil cooling, L.H.

1шт.

28

A12497

CLIP - oil cooling tube, R.H. and L.H.

4шт.

29

221-1368

ELBOW,45 Degree, 1/2" NPT

- street, 45 degrees (1/2" NPT)

2шт.

30

221-1185

FITTING

NIPPLE - close (1/2" NPT), Serial Range: Elbow-radiator

2шт.

31

D22660

AIR INTAKE TUBE

FILTER ASSEMBLY - converter oil (See parts list figure 202)

1шт.

32

D31210

FILTER

ASSEMBLY - converter oil (Order D22660 filter assembly) See parts list figure 202

1шт.

33

A17323

CLIP - converter pump to filter hose

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

34

A17325

BRACKET - filter hose clip

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

35

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- street, 45 degrees (1/2" NPT)

2шт.
