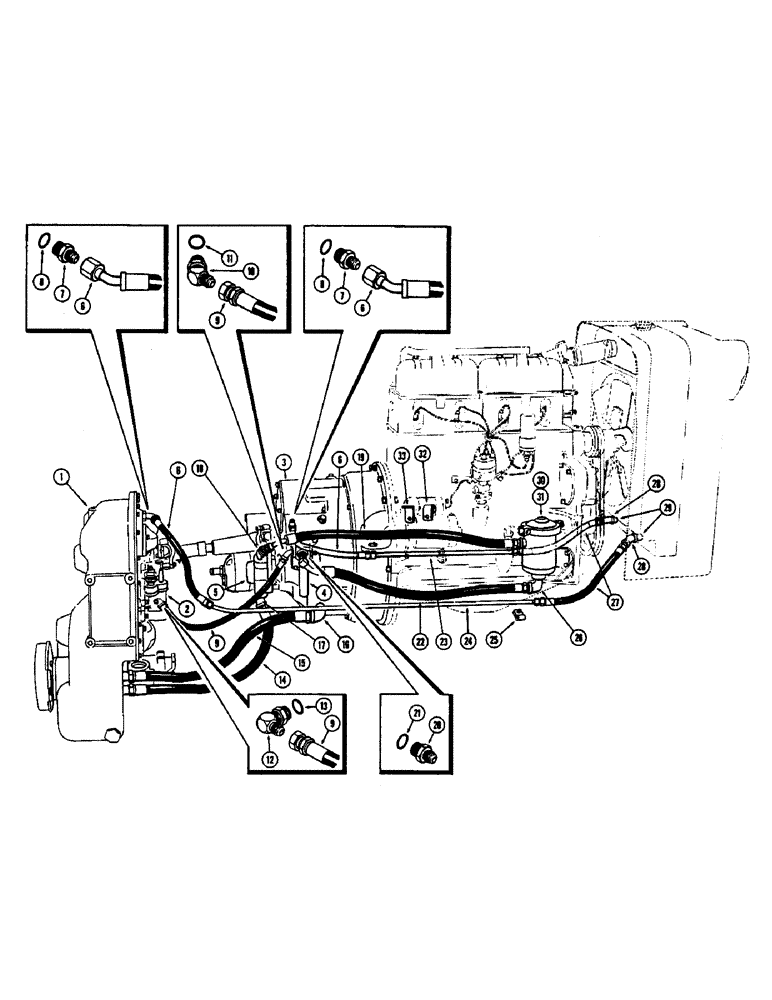

Запчасти Case W7 (198) - TRANSMISSION AND TORQUE CONVERTER, HYDRAULIC SYSTEM TRANS. SN 84857E & AFTER (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - complete (Includes L30322 valve assembly) See figure 204, Includes: Ref. 2

1шт.

2

L30322

REPAIR KIT

VALVE ASSEMBLY - transmission control (See parts list figure 212)

1шт.

3

L30331

CONVERTER

ASSEMBLY - complete (Includes L30323 and A17373 assemblies), Includes: Ref. 4 and 5

1шт.

4

L30323

KIT

VALVE ASSEMBLY - converter pressure regulating (See parts list figure 220)

1шт.

5

A17373

PUMP

ASSEMBLY - converter charging (See parts list figure 218)

1шт.

6

L10709

HOSE ASSY.

HOSE - oil, transmission and converter cooler tube

2шт.

7

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - oil hose, Includes: Ref. 8

2шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

L10710

HOSE,0.38" ID x 28.20", SAE 100R3

- oil, converter valve to transmission valve (28-13/16" long)

1шт.

10

L10708

ELBOW

- 45 degrees, oil hose at converter valve, Includes: Ref. 11

1шт.

12

L10707

X

ELBOW - 90 degrees, oil hose at transmission valve, Includes: Ref. 13

1шт.

14

A17316

HOSE

- suction, converter, Serial Range: pump-transmission

1шт.

15

A17316

HOSE

- drain, Serial Range: converter-transmission

1шт.

16

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degrees (1" NPT) Drain hose to converter

1шт.

17

221-1406

ELBOW

- street, 45 degrees (1" NPT) Suction hose to converter pump

1шт.

18

A19599

ADAPTER

- special

1шт.

19

L15035

HOSE ASSY.

HOSE - oil, converter pump to filter (41" long)

1шт.

20

A55729

ADAPTER

- special, filter hose to converter valve, Includes: Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

22

L15036

HOSE ASSY.

HOSE - oil, converter valve to filter (36-5/16" long)

1шт.

23

A17484

TUBE - oil cooler, R.H.

1шт.

24

A17485

TUBE - oil cooler, L.H.

1шт.

25

A12497

CLIP - oil cooler tube, R.H. and L.H.

4шт.

26

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- street, 90 degrees (3/4" NPT) Oil hose to filter

1шт.

27

A12495

HOSE

- oil cooler tube L.H. and, Serial Range: R.H.-radiator

2шт.

28

221-1368

ELBOW,45 Degree, 1/2" NPT

- 45 degrees (1/2" NPT) Oil hose to radiator

2шт.

29

221-1185

FITTING

NIPPLE - pipe (1/2" NPT) Hose, Serial Range: elbow-radiator

2шт.

30

D22660

AIR INTAKE TUBE

FILTER ASSEMBLY - converter oil (See parts list figure 202)

1шт.

31

D31210

FILTER

ASSEMBLY - converter oil (Order D22660 filter assembly) See parts list figure 202

1шт.

32

A17323

CLIP - converter pump to filter hose

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

33

A17325

BRACKET - oil hose clip

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
