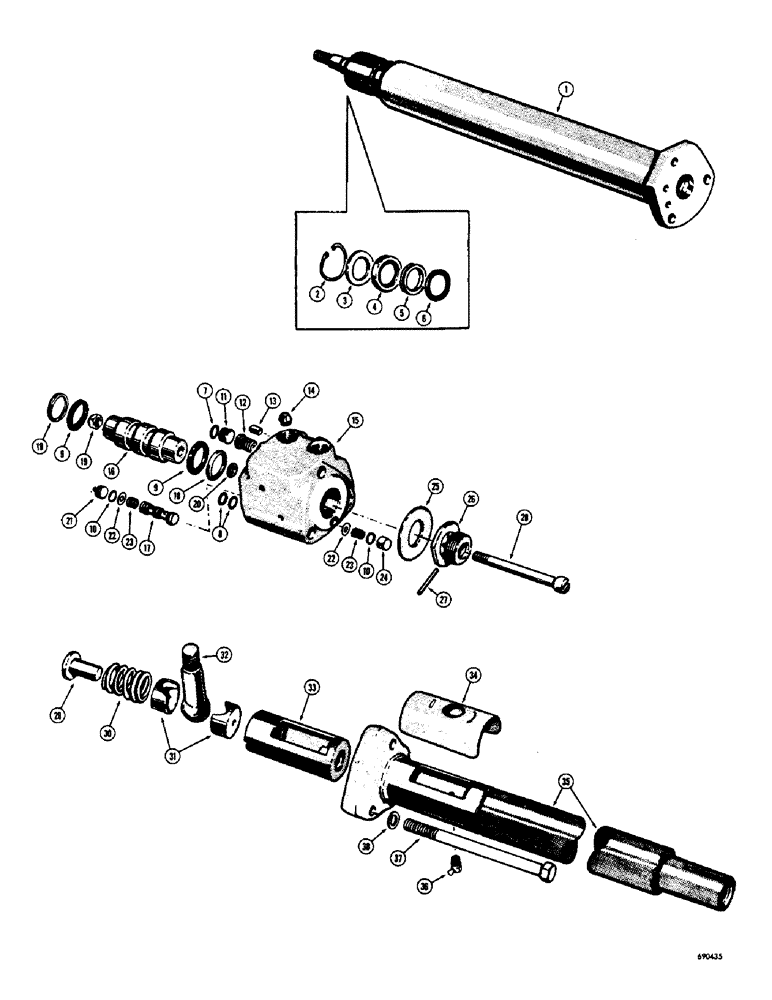

Запчасти Case W7 (148) - A17139 POWER STEERING CYLINDER (05) - STEERING

A17139

CYLINDER

AND VALVE - power steering, Includes: Ref. 1 - 38

1шт.

1

A17726

CYLINDER

- power steering

1шт.

A17740

SEAL

KIT - repair, cylinder seal, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

RING - snap, seal retainer

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - rod scraper

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - dust, piston rod

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, cylinder

1шт.

A17739

SEAL

KIT - repair, valve seal, Includes: Ref. 7 - 10

1шт.

7

A15897

X

SEAL - "O" ring, relief valve

1шт.

8

A15898

O-RING

SEAL - "O" ring, relief valve

2шт.

9

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

RING - quad, valve seal

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, relief valve

2шт.

11

G46121

PLUG

- check valve

1шт.

12

G45075

LOCK VALVE

VALVE - check

1шт.

13

A15235

INSERT

- oil passage, Serial Range: valve-cylinder

2шт.

14

A15233

SEAT

-, Serial Range: hose-valve

2шт.

A17720

HOUSING

VALVE HOUSING AND SPOOL - cylinder, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

17

NSS

NOT SOLD SEPARAT

PLUNGER - reaction

1шт.

18

G46122

BUSHING

- valve spool

2шт.

19

G49032

NUT

- lock, valve spool

1шт.

20

G49033

SPACER

- spool bolt

1шт.

21

A17722

PLUG

- inner, reaction plunger

1шт.

22

A17723

WASHER

- reaction plunger

2шт.

23

A17721

VALVE SPRING

SPRING - reaction plunger

2шт.

24

A40057

PLUG

- outer, reaction plunger

1шт.

25

G49035

PLATE ASSY.

PLATE -, Serial Range: housing-flange

1шт.

26

G46108

SCREW

- stop, torque adjusting

1шт.

27

G46111

PIN

- lock, stop screw

1шт.

28

G49030

BOLT (SPREADER)

BOLT - valve spool

1шт.

29

G46115

STOP

- spring, ball stud

1шт.

30

G46113

VALVE SPRING

SPRING - ball stud

1шт.

31

G46110

SEAT

- ball stud

2шт.

32

G46112

STUD

- ball

1шт.

33

G46109

SLEEVE

- inner, ball stud spring

1шт.

34

G46114

SHIELD

COVER - dust, ball stud

1шт.

35

A17732

SLEEVE CYLINDER

SLEEVE - extension

1шт.

36

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degrees (1/4" - 28 NF taper)

1шт.

37

G49031

BOLT (SPREADER)

BOLT - tube flange to valve housing

3шт.

38

92-6

LOCK WASHER,3/8"

3шт.
