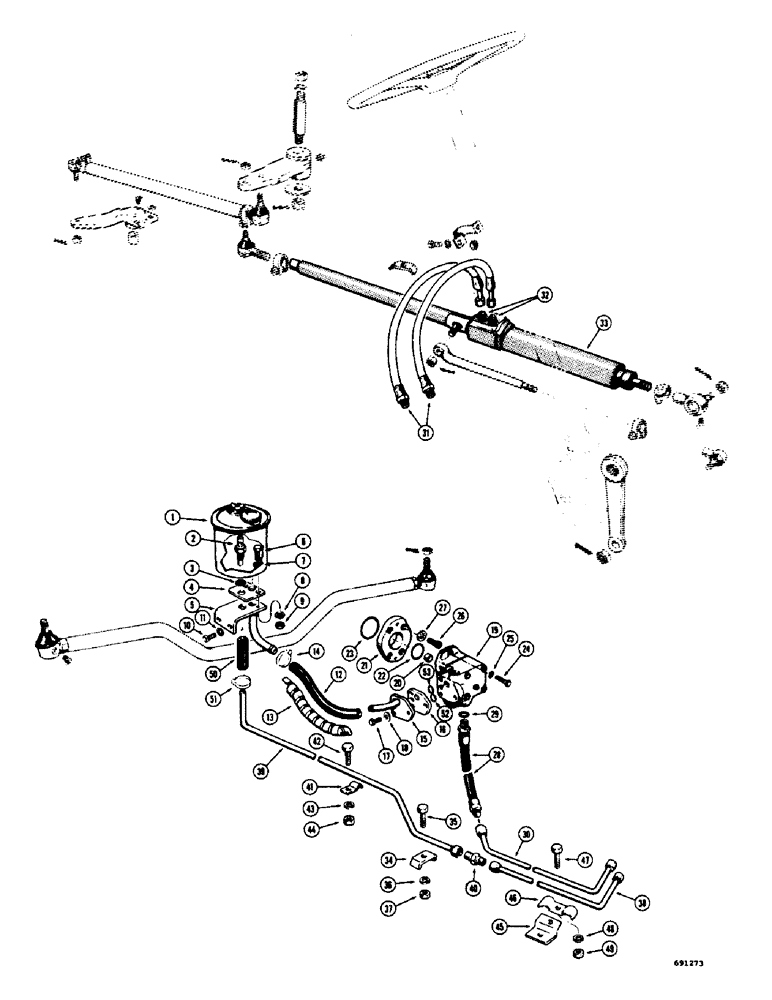

Запчасти Case W7 (146) - POWER STEERING HYDRAULICS, EARLY PRODUCTION (05) - STEERING

1

A17531

TANK

RESERVOIR - oil, power steering (Parts list figure 150)

1шт.

2

A17532

STUD

- connector, Serial Range: reservoir-bracket

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, bracket seal

1шт.

4

A19128

GASKET

-, Serial Range: reservoir-bracket

1шт.

5

A17533

BRACKET - reservoir mounting

1шт.

6

A18678

BOLT -, Serial Range: reservoir-bracket

2шт.

7

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk, Mounting bolt

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

A17539

HOSE

- suction, Serial Range: reservoir-pump

1шт.

13

L11636

GUARD - suction line hose

1шт.

14

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

15

L10899

MANIFOLD

- pump inlet

1шт.

16

A56227

GASKET

-, Serial Range: manifold-pump

1шт.

17

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

18

A56212

WASHER

- copper

3шт.

19

REF

INSTRUCTION

PUMP - power steering (See figures 149A and 150 for proper pump)

1шт.

20

A17525

SPACER

- pump, Serial Range: shaft-coupling

1шт.

21

A19985

ADAPTER

-, Serial Range: pump-converter

1шт.

22

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - "O" ring, pump to adapter

1шт.

23

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

SEAL - "O" ring, adapter to converter

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

61-616

HEX SOC SCREW,3/8"-16 x 1"

CAP SCREW - hex. socket head (3/8" - 16 NC x 1")

3шт.

27

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

28

A17529

HOSE

- pump outlet to steering cylinder, Includes: Ref. 29

1шт.

30

A17544

TUBE

- pressure, pump to steering cylinder

1шт.

31

A17540

HOSE,0.50" ID x 25.00", SAE 100R1

- Power steering, at cylinder 0.50" ID x 25.00", SAE 100R1

2шт.

32

A14072

ADAPTER

CONNECTOR - steering, Serial Range: cylinder-hoses

2шт.

33

A17139

CYLINDER

AND VALVE - steering (Parts list figure 148)

1шт.

34

A27128

CLAMP - tube

1шт.

35

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

38

A17608

TUBE

- return, cylinder to reservoir (Front section)

1шт.

39

A17609

TUBE

- return, cylinder to reservoir (Rear section)

1шт.

40

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, male

1шт.

41

A12497

CLAMP - return, Serial Range: tube-chassis

1шт.

42

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

45

A17541

SUPPORT

BRACKET - support, tube clamp

1шт.

46

A17542

CLAMP

- tube, pressure and return

1шт.

47

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

48

92-6

LOCK WASHER,3/8"

2шт.

49

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

50

A17536

HYDRAULIC HOSE,0.63" ID x 3.00", SAE20R1

0.63" ID x 3.00", SAE 20R1 - Return, Reservoir

1шт.

51

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - return hose

2шт.

52

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - "O" ring, manifold bolts and oil ports

4шт.

53

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - "O" ring, inlet tube to pump

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
