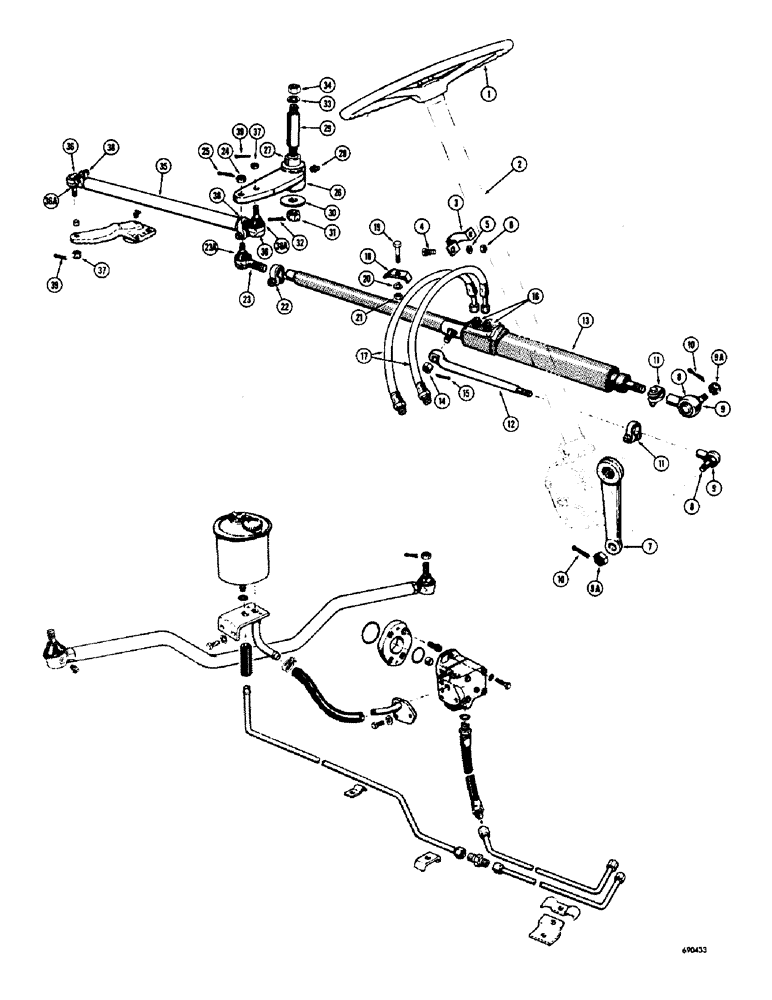

Запчасти Case W7 (142) - STEERING GEAR LINKAGE (05) - STEERING

1

L16338

WHEEL

- steering (Order A16843 horn button assembly and A19185 wire with L16338 wheel for service) See figure 140, ref. numbers 34 thru 44 for button assembly and wire

1шт.

2

REF

INSTRUCTION

STEERING GEAR ASSEMBLY - tractor (Parts list figure 140)

1шт.

3

A13430

CLAMP

- steering column

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

7

A17132

ARM

- steering control

1шт.

8

L40710

BALL

END - steering link and cylinder, Includes: Ref. 9 and 9A

2шт.

9

A41424

SEAL

- ball

1шт.

9a

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

1шт.

10

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

11

A27080

CLAMP

- ball end to link and cylinder

2шт.

12

L18731

ARM

LINK - steering

1шт.

13

A17139

CYLINDER

AND VALVE - steering (Parts list figure 148)

1шт.

REFER TO THREADED END,THREAD IS 5/8"N.F.

1шт.

14

25-138

SLOTTED NUT,1/2"-20, G5

NUT - hex., slotted (1/2" - 20 NF)

1шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

16

A14072

ADAPTER

CONNECTOR - steering, Serial Range: cylinder-hoses

2шт.

17

A17540

HOSE,0.50" ID x 25.00", SAE 100R1

- Steering cylinder to pump 0.50" ID x 25.00", SAE 100R1

2шт.

18

A13622

PLATE, LOCKING

CLAMP - hose

2шт.

19

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

22

G45175

CLAMP

- ball end to steering cylinder

1шт.

23

L40711

BALL JOINT

BALL END - steering cylinder to intermediate steering lever, Includes: Ref. 23A and 24

1шт.

23a

A41424

SEAL

SEAL - ball

1шт.

24

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

1шт.

25

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

26

A17143

LEVER

- steering, intermediate, Includes: Ref. 27

1шт.

27

A17611

BUSHING

- lever

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

29

A15762

PIN

- pivot, intermediate lever

1шт.

30

A15763

WASHER

- pivot pin

1шт.

31

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

32

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

33

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

34

25-1516

NUT,Jam, 1"-14, G5

- hex., jam (1" - 14 NF)

1шт.

35

A17142

BAR

LINK - steering, rear

1шт.

36

L40711

BALL JOINT

BALL END - steering link to steering arm, Includes: Ref. 36A and 37

2шт.

36a

A41424

SEAL

- ball

1шт.

37

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

1шт.

38

G45175

CLAMP

- ball end to steering link

2шт.

39

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.
