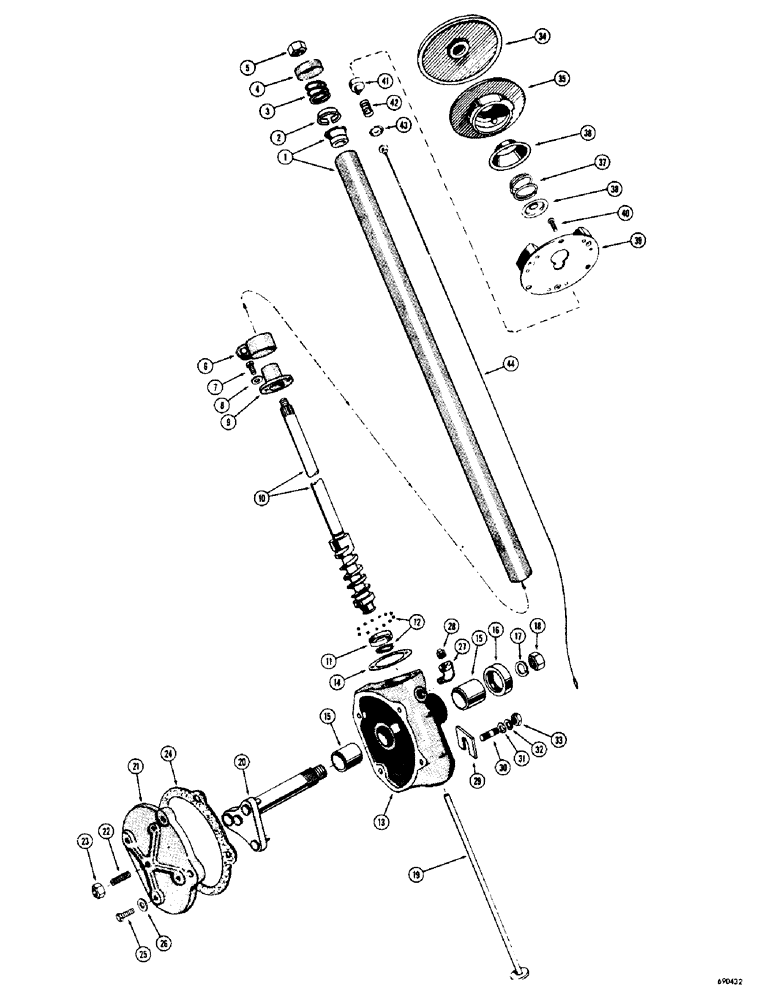

Запчасти Case W7 (140) - STEERING GEAR (05) - STEERING

A18976

GEAR

STEERING GEAR ASSEMBLY - tractor, Includes: Ref. 1 - 26, Start Serial: 8208244

1шт.

A17131

STEERING GEAR ASSEMBLY - tractor, Includes: Ref. 1 - 26, Start Serial: 8208244

1шт.

1

A19184

TUBE

AND BEARING ASSEMBLY - steering shaft, Start Serial: 8208244

1шт.

1

A18321

BEARING

TUBE AND BEARING ASSEMBLY - steering shaft, Serial Range: -8208244

1шт.

2

A18325

SEAT

- spring, upper bearing

1шт.

3

A30713

VALVE SPRING

SPRING - upper bearing

1шт.

4

G15452

CUP ASSY.

CAP - spring

1шт.

5

A14567

JAM NUT

- steering, Serial Range: wheel-shaft

1шт.

6

A31045

CLAMP

- tube

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

8

A31046

WASHER

- special

3шт.

9

A14559

COVER - shaft

1шт.

10

A19183

GEAR

SHAFT AND WORM GEAR - steering, Start Serial: 8208244

1шт.

10

A18324

SHAFT

AND WORM GEAR - steering, Serial Range: -8208244

1шт.

L30422

KIT

- repair, balls and retainer, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - ball

2шт.

12

NSS

NOT SOLD SEPARAT

RETAINER AND BALLS - worm gear

2шт.

13

A18320

HOUSING

- steering gear

1шт.

14

A18331

SHIM,.002" Thk

- upper cover (.003")

1шт.

14

A18332

SHIM,.003" Thk

- upper cover (.010")

1шт.

14

A18333

SHIM,.010" Thk

- upper cover (.002")

1шт.

15

G10725

BUSHING

- lever shaft

2шт.

16

A18322

SEAL

- oil, lever shaft

1шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

18

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 16 NF)

1шт.

19

A18323

COVER ASSY

SUPPORT - steering shaft

1шт.

20

A18329

LEVER

- shaft

1шт.

21

A14557

COVER - housing

1шт.

22

A18330

SCREW - lever adjusting

1шт.

23

25-158

JAM NUT,Jam, 1/2"-20, G5

- lock, adjusting screw

1шт.

24

A14558

GASKET

- housing cover

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

26

A31046

WASHER

- special

4шт.

27

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

28

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

29

A17197

SHIM

-, Serial Range: housing-chassis

1шт.

30

A7576

STUD -, Serial Range: housing-chassis

2шт.

31

95-8

WASHER,1/2"

- plain 1/2"

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

A16843

BUTTON

ASSEMBLY - horn, Includes: Ref. 34 - 43

1шт.

34

A13088

CAP

COVER - horn button

1шт.

35

A13089

BUTTON

- horn

1шт.

36

A13092

CAP

CUP - contact

1шт.

37

A13091

SPRING

- button

1шт.

38

A13090

CAP

- contact

1шт.

39

A13093

PLATE ASSY.

PLATE - base

1шт.

40

168-25

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- self-tapping, #10 - 24 NC x 5/8"

3шт.

41

A13058

FERRULE

- insulating

1шт.

42

A13059

SPRING

- contact

1шт.

43

A13057

CUP ASSY.

CONTACT - lower

1шт.

44

A19185

ELECTRICAL WIRE

WIRE - horn control, Start Serial: 8208244

1шт.

44

A18334

WIRE - horn control, Serial Range: -8208244

1шт.
