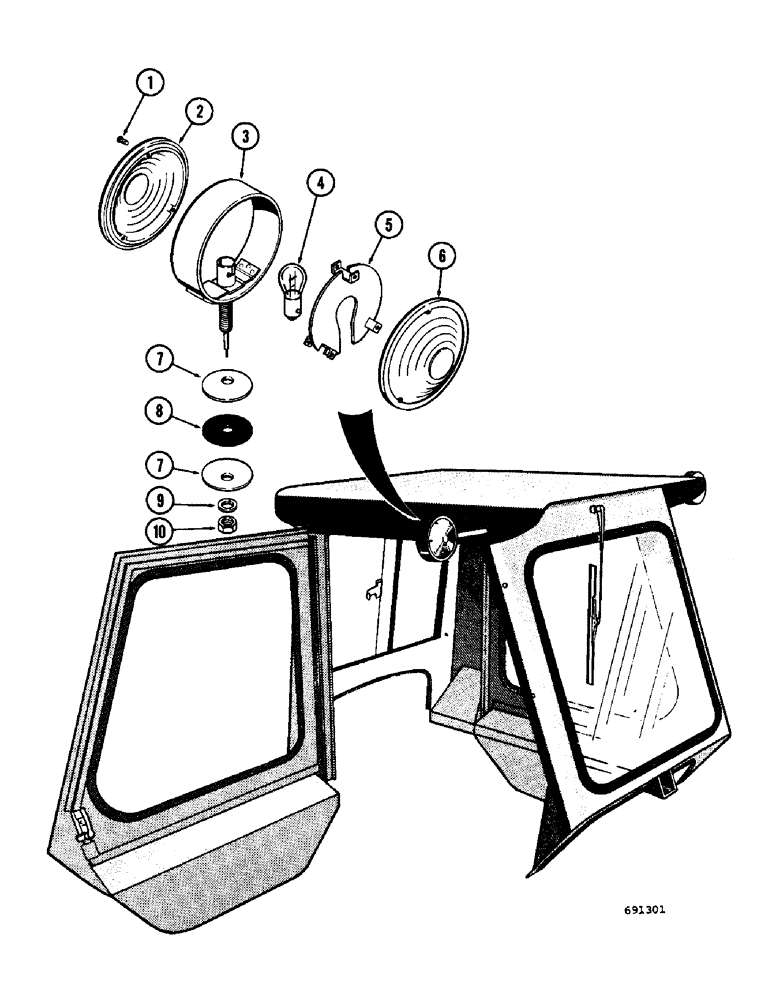

Запчасти Case W7 (296) - CAB TURN SIGNALS, (PRIOR TO S/N 9806834) (04) - ELECTRICAL SYSTEMS

A19876

INDICATOR, TURN SIGN

LAMP - turn signal (12 volt), Includes: Ref. 1 - 10

2шт.

1

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

6шт.

2

L30261

LENS

- lamp, red

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

4

33686

BULB

- lamp (12 volt)

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - reflector

1шт.

6

L30260

LENS

- lamp, amber

1шт.

7

L30258

WASHER

- crowned mounting

2шт.

8

L30259

WASHER

- cushion (Light rubber)

1шт.

9

192-407

LOCK WASHER,7/16"

7/16"

1шт.

10

129-104

NUT,7/16"-14, G5

1шт.
