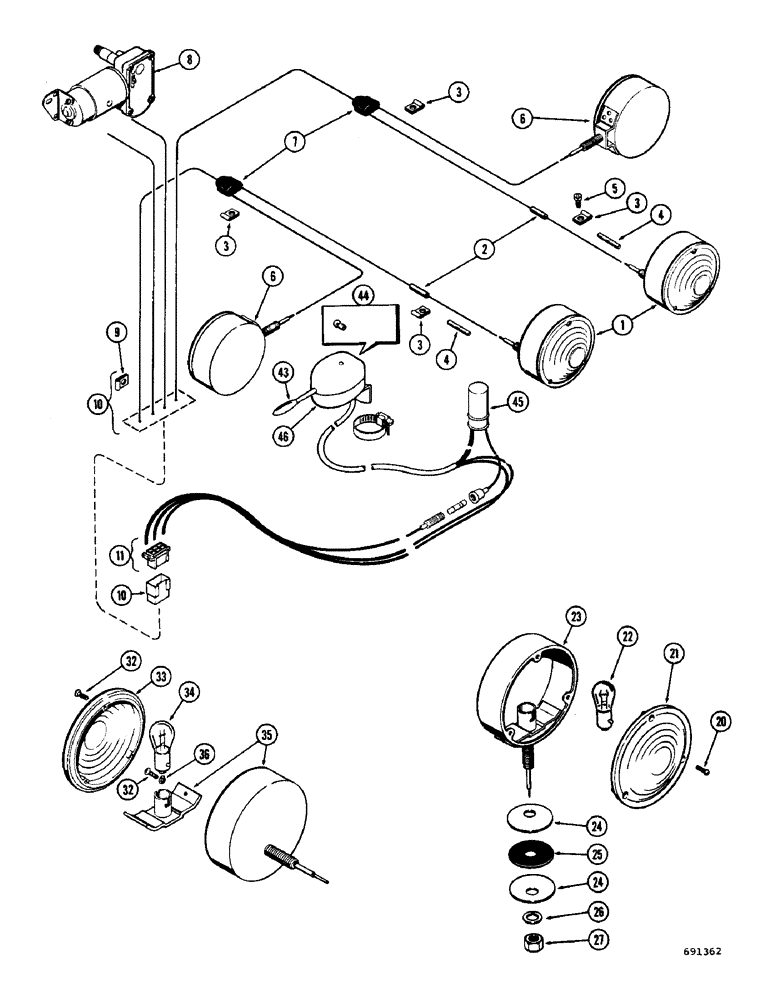

Запчасти Case W7 (294) - TURN SIGNLS(PRIOR TO SN 9806834),L10230 SIGNL LMP,L10230 SIGNL LMP,L10231 SIGNL LMP,L10228 SWTCH ASY (04) - ELECTRICAL SYSTEMS

1

L10231

LAMP - turn signal, red (12 volt)

2шт.

2

A21763

WIRE - connector, lamp

2шт.

3

L10167

CLIP - wire retainer

4шт.

4

A27164

LOOM -, Serial Range: clip-wire

2шт.

5

187-1009

BOLT

SCREW - self-tapping, 1/4" - 20 NC x 3/8"

9шт.

6

L10230

LAMP - turn signal, amber (12 volt)

2шт.

7

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

2шт.

8

A19873

WIPER MOTOR

MOTOR - windshield wiper

1шт.

9

L10168

CLIP - wire retainer

5шт.

10

A19880

HARNESS - cab wiring

1шт.

11

A19881

PLUG AND WIRE - cab electrical

1шт.

12

L10228

SWITCH ASSEMBLY - turn signal (12 volt)

1шт.

L10230

LAMP - turn signal, amber (12 volt), Includes: Ref. 20 - 27

2шт.

20

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2", L10230 signal lamp

3шт.

21

L30260

LENS

- lamp, amber, L10230 signal lamp

1шт.

22

33686

BULB

- lamp (12 volt), L10230 signal lamp

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - lamp, L10230 signal lamp

1шт.

24

L30258

WASHER

- crowned mounting, L10230 signal lamp

2шт.

25

L30259

WASHER

- cushion (Light rubber), L10230 signal lamp

1шт.

26

192-407

LOCK WASHER,7/16"

L10230 signal lamp 7/16"

1шт.

27

129-104

NUT,7/16"-14, G5

L10230 signal lamp 7/16"-14, G5

1шт.

L10231

LAMP - turn signal, red (12 volt), Includes: Ref. 32 - 36

2шт.

32

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2", L10231 signal lamp

5шт.

33

L30261

LENS

- lamp, red, L10231 signal lamp

1шт.

34

33686

BULB

- lamp (12 volt), L10231 signal lamp

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - lamp, L10231 signal lamp

1шт.

36

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , L10231 signal lamp Int Tooth, #6

2шт.

L10228

SWITCH ASSEMBLY - turn signal (12 volt), Includes: Ref. 43 - 46

1шт.

43

L30262

HANDLE - switch, L10228 switch assembly

1шт.

44

B50213

BULB

- switch (12 volt), L10228 switch assembly

1шт.

45

A19878

FLASHER - switch (12 volt), L10228 switch assembly

1шт.

46

174-85

RHMS - #8 - 32 NF x 1-1/2", L10228 switch assembly

2шт.
