Запчасти Case W7 (292) - TURN SIGNALS (S/N 9806834 AND AFTER) (04) - ELECTRICAL SYSTEMS

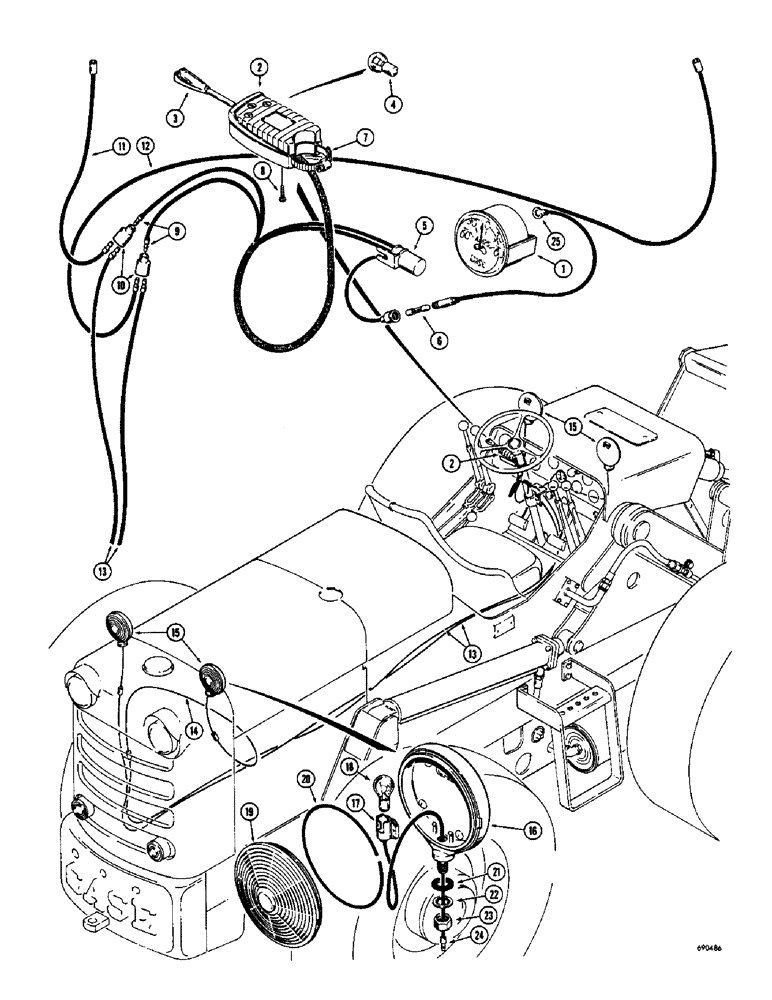

Схема запчастей Case W7 - (292) - TURN SIGNALS (S/N 9806834 AND AFTER) (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A55699

ELECTRICAL GAUGE

GAUGE - ammeter, 60 amp

1шт.

2

A19877

SWITCH ASSEMBLY - turn signal (12 volt), Includes: Ref. 3 - 8

1шт.

3

L30264

HANDLE - signal switch

1шт.

4

B50213

BULB

BULT - signal switch

1шт.

5

A19878

FLASHER - signal control

1шт.

6

223-14

FUSE,10 Amp, Type SFE

- protective, 14 amp

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- switch mounting #28, 1.31/2.25 Type F Worm

1шт.

8

177-82

SCREW - machine, fillister head (#8 - 36 NF x 1")

2шт.

9

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - bullet, Male

2шт.

10

A8210

CONNECTOR, ELEC

CONNECTOR - female

2шт.

11

L17193

ELECTRICAL WIRE

WIRE - connector to L.H. front signal

1шт.

12

L15397

WIRE - connector to R.H. front signal

1шт.

13

L17192

WIRE - connector to rear signal lights

2шт.

14

L15397

WIRE - connector to R.H. rear signal

1шт.

15

L15508

LAMP BASE

LIGHT - turn signal, front and rear, Includes: Ref. 16 - 23

4шт.

16

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

17

NSS

NOT SOLD SEPARAT

SOCKET AND WIRE - light

1шт.

18

A41264

BULB,#1156, 12V

Light #1156, 12V

1шт.

19

A41261

LENS

- light, amber

1шт.

20

A41262

O-RING,3.484" ID x 0.139"

SEAL - "O" ring, lens

1шт.

21

L34016

GASKET - mounting, light

1шт.

22

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

23

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

24

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - bullet, Male

4шт.

25

L18987

TERMINAL CONNECTOR

TERMINAL - eyelet, switch wire

1шт.

Выбрано товаров: 25
